© 2002 Directed Electronics, Inc

1. RRCCAA IInnppuutt JJaacckkss - Accepts line level

outputs from head units or signal
processors at voltages between
150mV and 8 volts.

2. RRCCAA SSyynncc OOuutt JJaacckk - This RCA jack

sends a synced, or in-phase, gain
matched signal to a slave d2500.1
when connected in the Parallel
Synced Gain combination. (Refer to
Combined Amplifiers section of this
guide.)

3. RRCCAA SSllaavvee IInn JJaacckk - This RCA

accepts input from a master
d2500.1 when connected in the
Parallel Synced Gain combination.
(Refer to

Combined Amplifiers

section of this guide.)

4. SSllaavvee//M

Maasstteerr SSw

wiittcchh - Controls

whether the amplifier is a slave or
master when connected in the
Parallel Synced Gain combination.
(Refer to the

Combined Amplifiers

section of this guide.)

5. RReem

moottee SSuubb LLeevveell CCoonnttrrooll - Controls

the subwoofer amplifier gain
controls from a remote location for
ease of adjustment during listening.

W

Waarrnniinngg:: DO NOT connect a level control knob from other

manufacturers to the Remote Sub Level Control of
any Viper amplifier. Even though the connectors fit
properly, the control knob and connector pin posi-
tions may be different and the amplifier will be
damaged.

FRONT PANEL CONNECTIONS

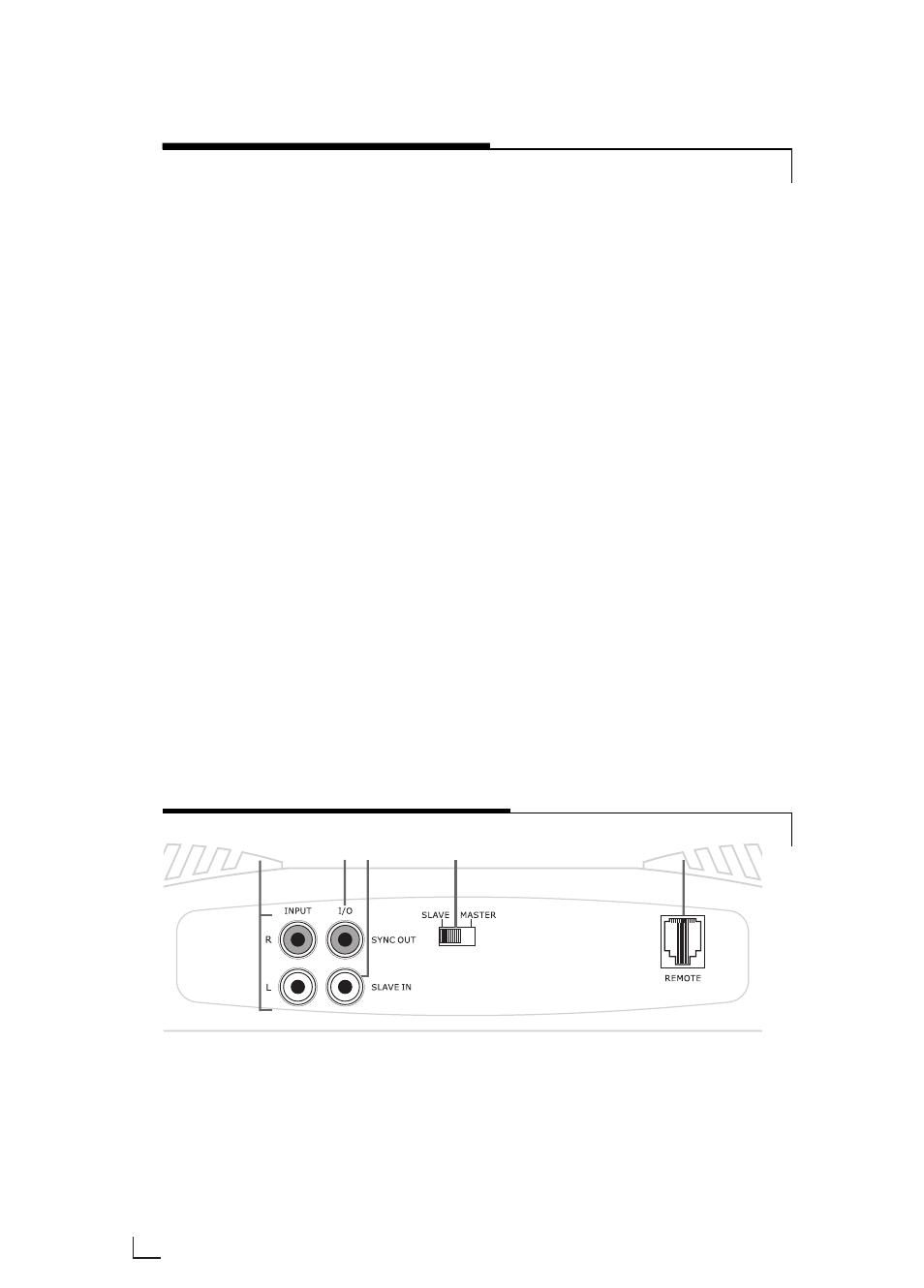

FIGURE 1—AMPLIFIER CONNECTIONS d2500.1 FRONT

3

1

4

5

2
