17
© 2002 Directed Electronics, Inc

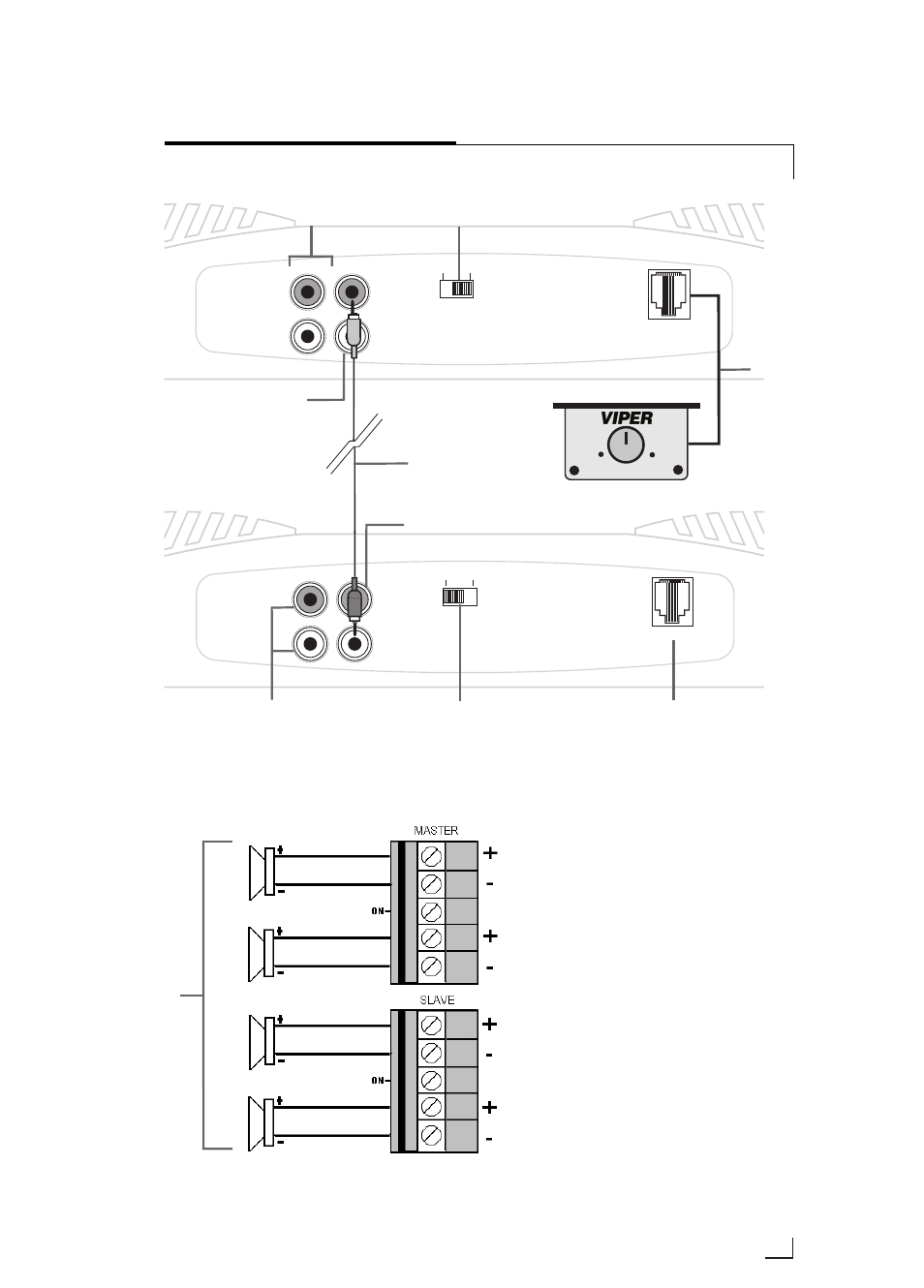

FIGURE 5—PARALLEL SYNC GAINED d2500.1
5
Subwoofer Wiring (bottom view)
NNOOTTEE:: The dual + and -- subout terminals of
the d2500.1 are paralleled internally
and the combined load impedance
should be taken into consideration
when connecting multiple subwoofers.
SUB LEVEL
MIN MAX
SLAVE IN
SLAVE IN
INPUT I/O
SYNC OUT
R
L
SLAVE MASTER
REMOTE
INPUT I/O
SYNC OUT
R
L
SLAVE MASTER
REMOTE
2
2 Do Not Use
3
Do Not Use
Master
Slave
4
1
Do Not Use
Do Not Use
