E - 8

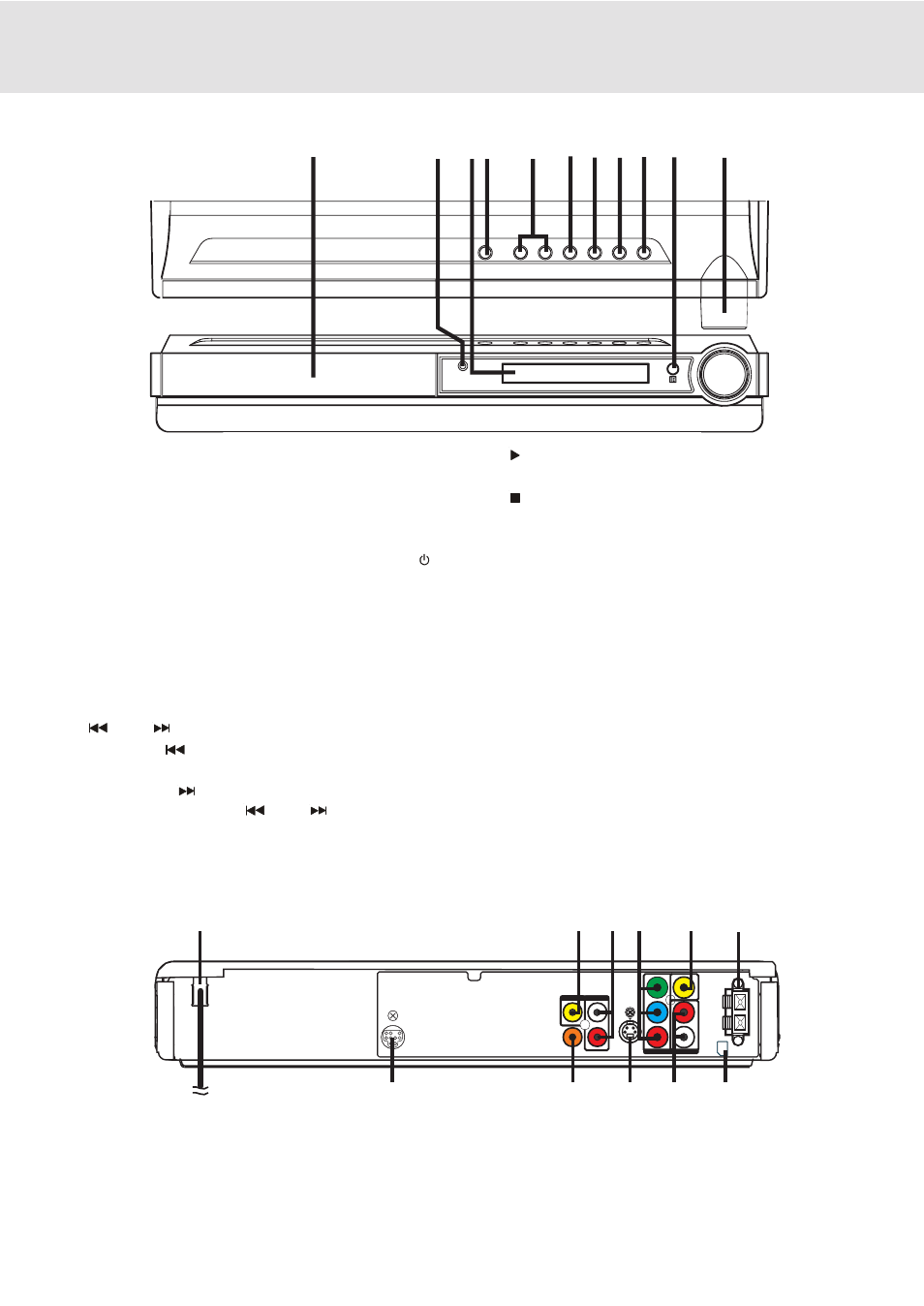

Rear Panel

PARTS AND FUNCTIONS

12) Power cord
13) VIDEO OUT jack
14) Left/Right AUDIO OUT jacks
15) COMPONENT VIDEO jacks (Y, P

B

/C

B

, P

R

/C

R

)

16) VIDEO IN (VCR) jack
17) FM ANTENNA jack

18) SUBWOOFER AUDIO OUT jack
19) DIGITAL AUDIO OUT jack
20) S-VIDEO OUT jack
21) AUDIO IN (R/L) jacks
22) AM(MW) LOOP ANTENNA terminal

Note:
Screen saver - If no button is pressed within 2 minutes,
the function will active, If you want to return the normal
screen, press any button.

1)

Disc tray
Open or close tray by pushing OPEN/CLOSE button.
Place a disc on the disc tray, label side up.

2)

STANDBY indicator
When the Unit is turned on by pressing the
STANDBY/ON button. If you press the STANDBY /
ON button on the remote control, the Unit will turn
off and go into standby mode. The light will continue
to illuminate.

3)

Display window
Display system information.

4)

OPEN/CLOSE button
Use to open and close the disc tray.

5)

SKIP

buttons

Press SKIP

button to go back to previous chapters/

tracks.
Press SKIP

button to advance to chapters /

tracks. Press and hold

SKIP

button to begin

fast scan. Four speeds are available.
Scan all available radio stations.

6)

PLAY button

Press to start or resume playback

7)

STOP button

Stop playing a disc.

8)

FUNCTION button
Select the source.

9)

STANDBY/ON button
Turn the power on or off.

10) Remote sensor

Receive the remote control unit signals.

11) VOLUME controls

Change the loudness of the sound from the speakers
connected to the Unit.

1

3

2

4

5

6 7 8 9 10

11

Front and Top Panel

AM

(MW)

LOOP

ANT.

Y

L

R

L

R

DIGITAL

AUDIO OUT

SUBWOOFER

AUDIO OUT

5.1 CH

S-VIDEO OUT

(DVD)

VIDEO
IN

(VCR)

VIDEO
TV

AUDIO OUT

VIDEO OUT

B

R

P

P

VIDEO OUT

AUDIO IN

13

19

18

12

14 15

16

21

20

17

22
