E - 13

SETUP

(continued to next page)

(continued to next page)

(continued to next page)

(continued to next page)

(continued to next page)

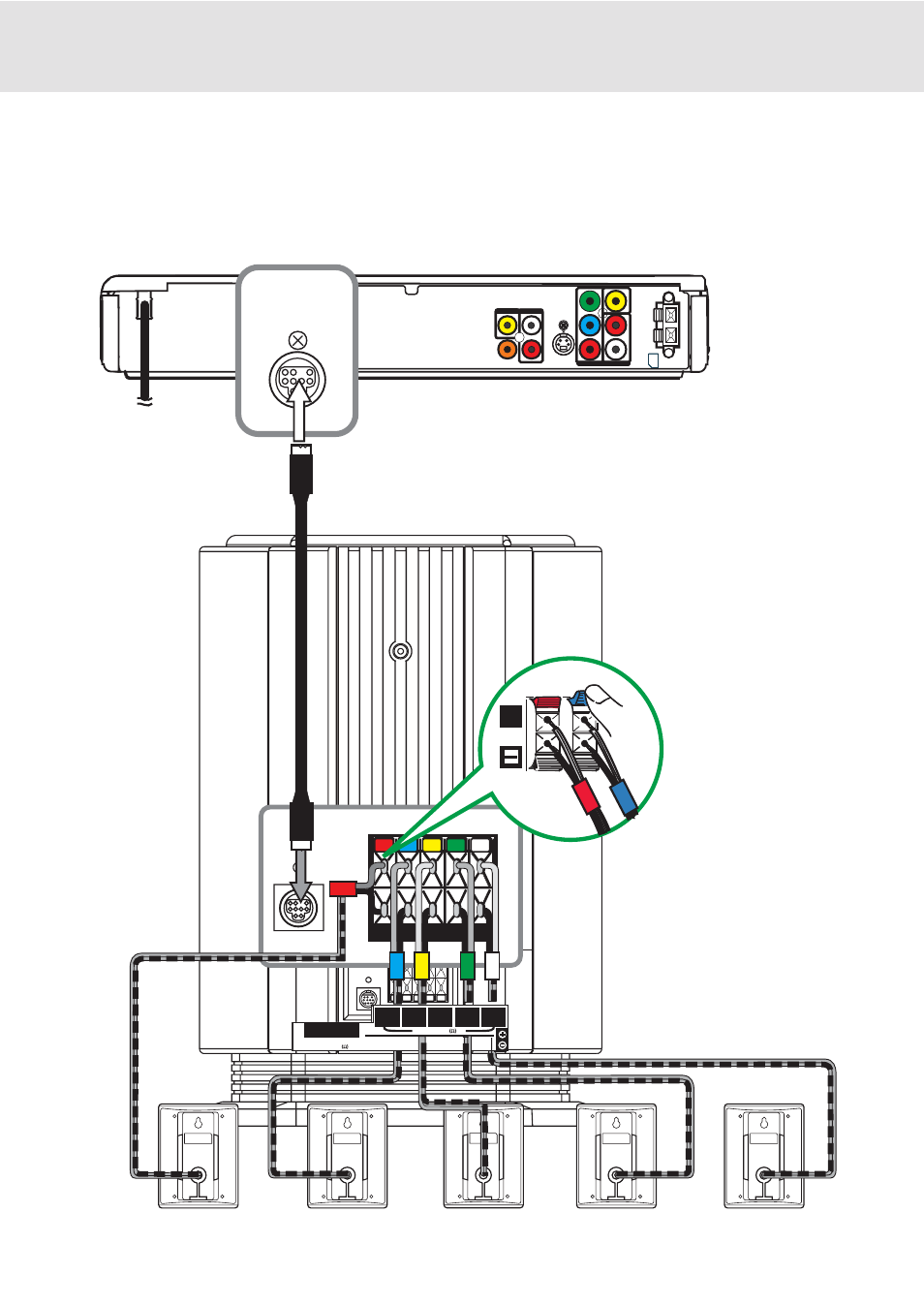

D. Connecting the speakers & subwoofer

The speaker cords have been color-coded to simplify connection. Just plug the POSITIVE (+) and NEGATIVE (-)
ends of each speaker wire into the corresponding jacks on the rear of the Unit, matching the color tube on the end
of the speaker wire to the color-coded connector.

AM

(MW)

LOOP

ANT.

Y

L

R

L

R

DIGITAL

AUDIO OUT

SUBWOOFER

AUDIO OUT

5.1 CH

S-VIDEO OUT

(DVD)

VIDEO
IN

(VCR)

VIDEO
TV

AUDIO OUT

VIDEO OUT

B

R

P

P

VIDEO OUT

AUDIO IN

To wall outlet

SUBWOOFER

AUDIO OUT

5.1 CH

CONNECTING SPEAKERS OTHER THAN THE SPEAKERS

SUPPLIED WITH THE UNIT, MAY DAMAGE THE UNIT.

IMP. 8 ohm

SUBWOOFER SPEAKER :

IMP. 4 ohm

CENTER

FRONT
RIGHT

FRONT

LEFT

REAR

RIGHT

REAR

LEFT

SUBWOOFER

AUDIO IN 5.1 CH

FRONT (RIGHT)

REAR (RIGHT)

FRONT (LEFT)

CENTER

REAR (LEFT)

CONNECTING SPEAKERS OTHER THAN THE SPEAKERS
SUPPLIED WITH THE UNIT, MAY DAMAGE THE UNIT.

IMP. 8 ohm

CENTER

FRONT

RIGHT

FRONT

LEFT

REAR

RIGHT

REAR

LEFT

SUBWOOFER SPEAKER :

IMP. 4 ohm

SUBWOOFER

AUDIO IN 5.1 CH

+

CONNECTING SPEAKERS OTHER THAN THE SPEAKERS
SUPPLIED WITH THE UNIT, MAY DAMAGE THE SYSTEM

IMP. 8 ohm

CENTER

FRONT

RIGHT

FRONT

LEFT

REAR

RIGHT

REAR

LEFT

SUBWOOFER SPEAKER :

IMP. 4 ohm

SUBWOOFER

AUDIO IN 5.1 CH
