PORTABLE GASOLINE GENERATORS
®
PART NUMBER FOR MODEL
KEY RGH5500A
NO. RGH5500AIE RGH7500AIE DESCRIPTION QTY.
1 103349-02 103349-04 Control Panel 1
2 22616009 22616009 Circuit Breaker, 20 Amp * 2
3 099833-01 099833-01 120V, 30A Twist-Lock Receptacle * 1
4 15324000 15324000 120V, 15A Duplex Receptacle * 1
5 100445-01 100445-01 120V, 15A Duplex (GFCI) Receptacle * 1
6 099956-01 — Full Power Selector Switch * 1
7 22616011 — Circuit Breaker, 25 Amp * 2
— 22616010 Circuit Breaker, 30 Amp * 2
8 099834-01 — 120/240V, 20A Twist-Lock Receptacle * 1
— 099835-01 120/240V, 30A Twist-Lock Receptacle * 1
9 101350-01 101350-01 Hour Meter 1
10 099760-01 099760-01 Bushing 1
11 100410-01 100410-01 Sems Screw, #8-18 x 1/2" 4
12 100149-01 100149-01 Control Box 1
13 22261000 22261000 U-Nut 8
14 099997-01 099997-01 Switch Plug 1
† 103348-02 103348-04 Control Panel Assembly 1
† 103348-06 103348-08 Control Panel Assembly - Auto Idle Models 1
∆
100177-07 100177-07 Panel Schematic Decal 1

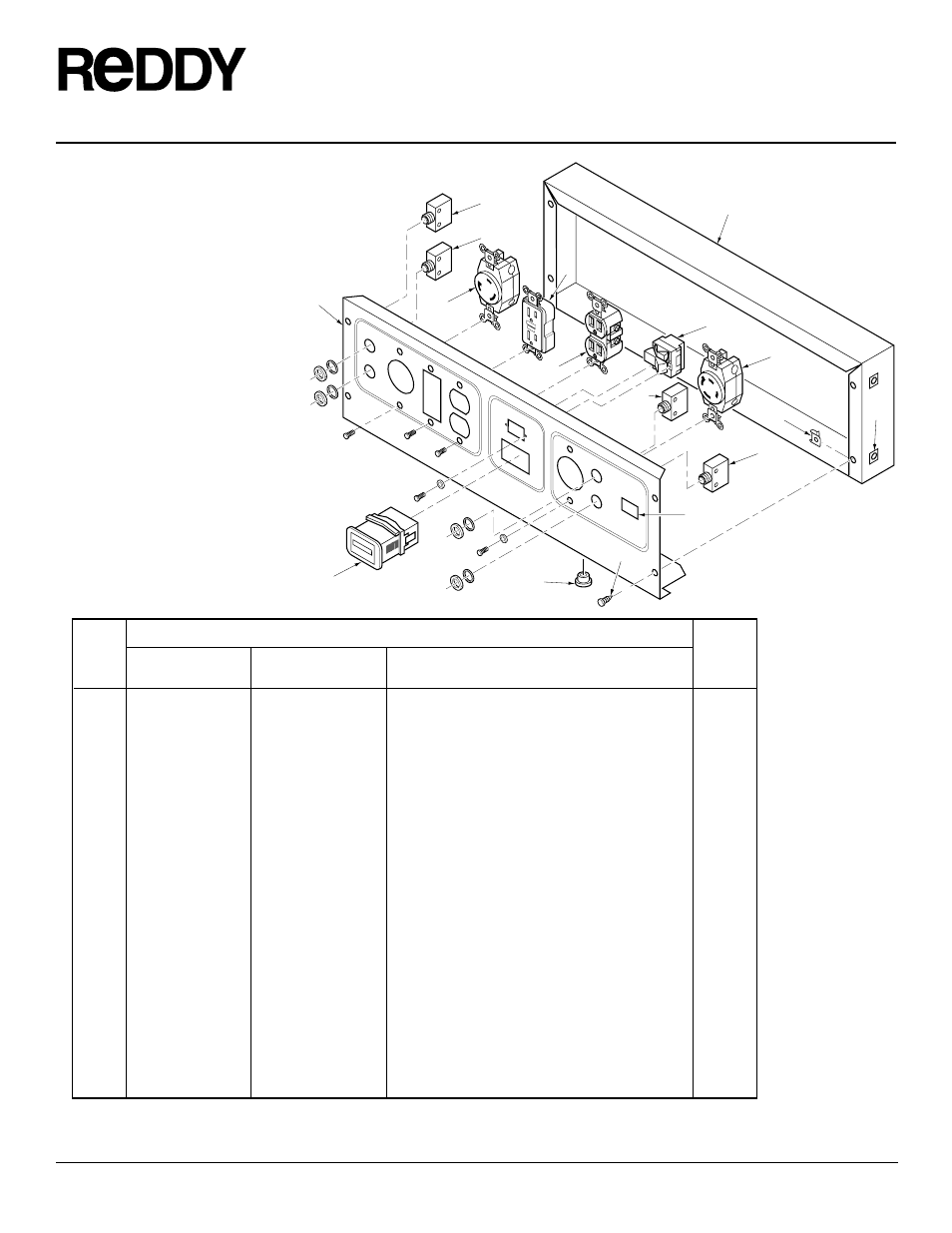

ILLUSTRATED
PARTS LIST
For Models RGH5500A,
RGH5500AIE, and
RGH7500AIE Control Panel
This list contains replaceable parts
used in your generator. When order-
ing parts, follow the instructions listed
under Replacement Parts on page 19
of this manual.
* Includes fastening hardware
∆ Not shown
† Includes reference numbers 1 through 13
