WIRING DIAGRAMS
Continued

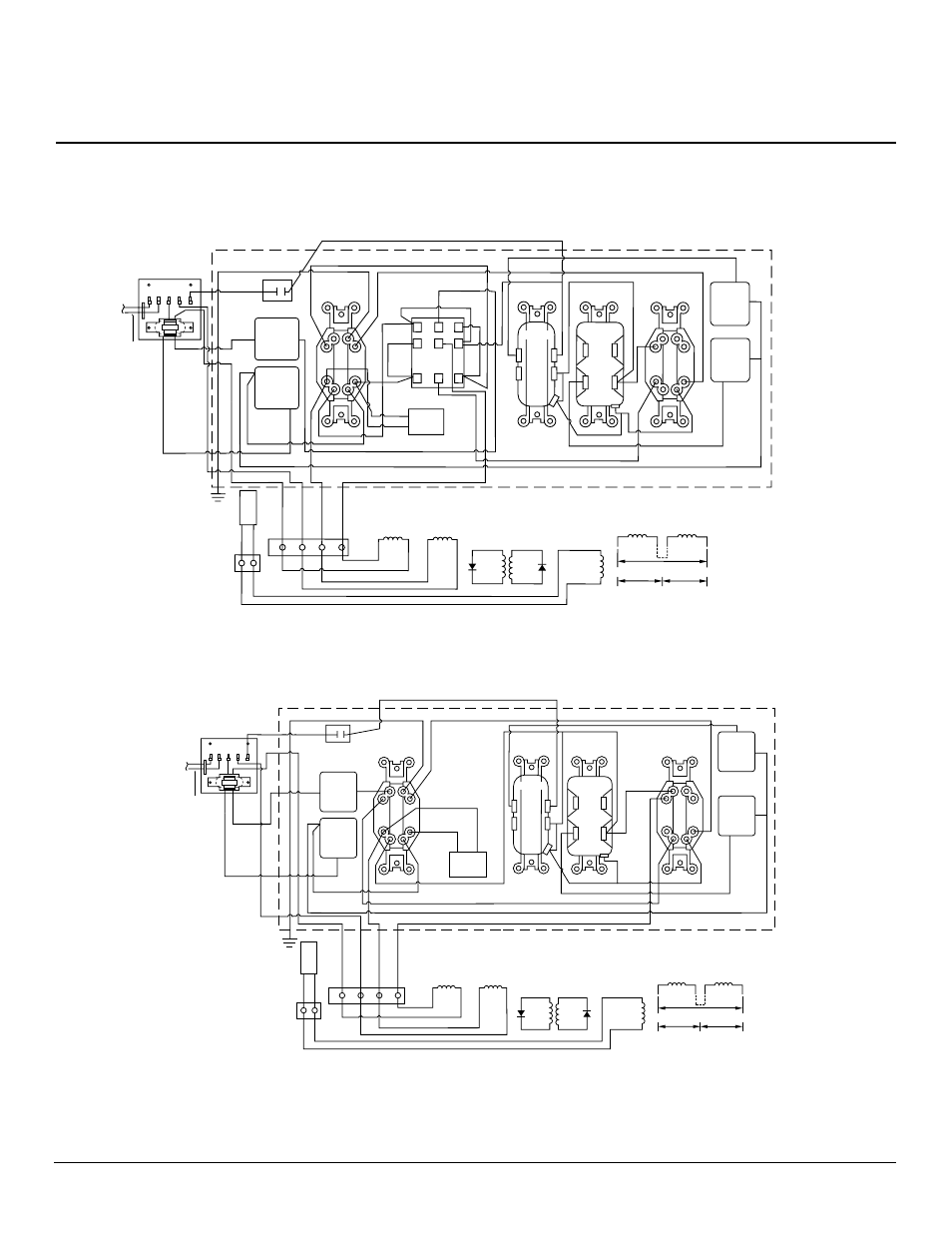

Figure 33 - Wiring Diagram, Model RGH5500AIE
Circuit
Breaker
20A, 25A
or 30A
120/240V 20A
Receptacle
T4
120V, 15A
Receptacle
120V, 30A
Receptacle
White
White
Green
Black
Red
Black
Red
Black
White
T3
Red
Green
Stator
110/120V
T1 T2 T3 T4
L2 L1
110/120V
220/240V
Rotor Stator
White
Brown
Auxiliary
Phase
Diode
T2
Green
Red
Black
Yellow
Main
Windings
T1 T3 T4
T1
T1 T2 T3 T4
Green/Yellow
Yellow
Red Black Green
Diode
Capacitor
White
White
GFCI
Circuit
Breaker
20A
LINE
WHITE HOT
Circuit
Breaker
20A, 25A
or 30A
Circuit
Breaker
20A
Green
120V, 15A
Receptacle
White
Black
Duplex
White
To Solenoid
s
1
s
2
•
•
Full Pwr
Selector
Switch
T2
Red
Black
Black Red
White
Hour
Meter Black
White
Figure 34 - Wiring Diagram, Model RGH7500AIE
120/240V 30A
Receptacle
T4
120V, 15A
Receptacle
Circuit
Breaker
20A
Green
Black
Black
Black
Red
Black
T3
White White
Green
Red T1
T2
White Circuit
Breaker
30A
Circuit
Breaker
30A
Black Red
Yellow
Green/Yellow
Stator
110/120V
T1 T2 T3 T4
L2 L1
110/120V
220/240V
T2
Green
Red
Black
Yellow
Main
Windings
T1 T3 T4 T1 T2 T3 T4 Rotor
Diode Diode
Stator
White
Brown
Capacitor
White
White
White
GFCI
120V, 15A
Receptacle
Auxiliary
Phase
LINE
WHITE HOT
120V, 15A
Receptacle
Circuit
Breaker
20A
Duplex
To Solenoid
Switch
• s
1
s
2
Hour
Meter
White
Black
