22 106815
PORTABLE GASOLINE GENERATORS
®
1
5
16
14
24
10
26
18
19
6
2
11
12
9
3
7
4
22
23
25
17
21
8
20
15
13

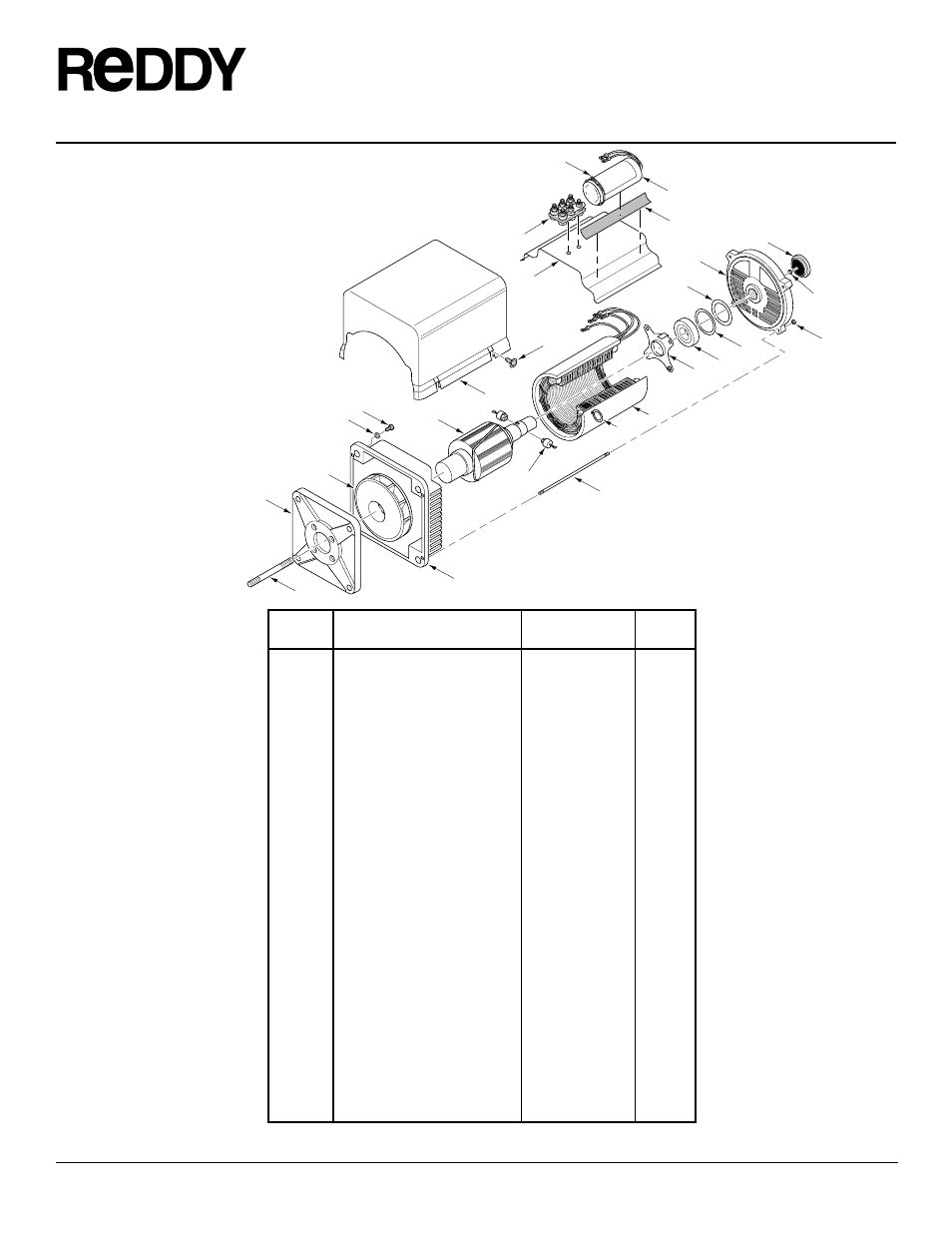

ILLUSTRATED
PARTS LIST
For Model RGH11000AIE
Alternator Assembly
This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under Replacement
Parts on page 19 of this manual.
* Part not available by itself. Must purchase Alternator Assembly.
** Standard hardware item available from local hardware store.
1 Stator * 1
2 Rotor * 1
3 Draw Bolt 103188-01 1
4 Fan 103191-01 1
5 Balancing Disc 103192-01 1
6 Lifting Eyes 103193-01 2
7 D.E. Bracket 103194-01 1
8 N.D.E. Bracket 103195-01 1
9 Mounting Bolts 099847-05 4
10 Nuts 099891-01 4
11 Top Box 103189-01 1
12 Screw and Washer 099701-01 6
13 Plastic Cap 103198-01 1
14 Bearing 103199-01 1
15 Borelly Washer 103200-01 1
16 Diode 27003012S 2
17 Terminal Block 103201-01 1
18 Capacitor 099845-02 1
19 Tie Wrap 103204-01 1
20 Foam Pad 099892-02 1
21 Capacitor Bracket 103202-01 1
22 Engine Flange 103190-01 1
23 Screw M8 x 20 ** 4
24 'O' Ring 103203-01 1
25 Washer WLE-5 2
26 Hex Head Nut 099891-01 1
† Alternator Assembly 102938-01 1
KEY PART
NO. DESCRIPTION NUMBER QTY.
