2
3.0 Equipment Required
3.1 A DC Power Supply 0 - 20 V @ 0 - 20A (Agilent 6574A 0 -60V/0 - 35A or equivalent).
3.2 An oscilloscope (Tektronix TDS 3034 or equivalent) 4 Channel 300 MHz, equipped with a x1
scope probe, a x10 scope probe, and two BNC cables (length less than 20 inches/500mm)
3.3 Digital multi-meters, one with 20A range and ideally all with 4 1/2 digit resolution (DVM1, DVM2
and DVM3) (Zentech 2041 or equivalent).
3.4 An electronic load (Chroma 63030 or equivalent), 300W approximate rating, or a suitable
resistive load.
3.5 A DC power supply (GW GPC-3060D).
4.0 Equipment Set-Up and Description
Refer to the Power Module Evaluation Board Layout (See page 20) for reference designators cited
in this document and Figure 1. Set-up Diagram.

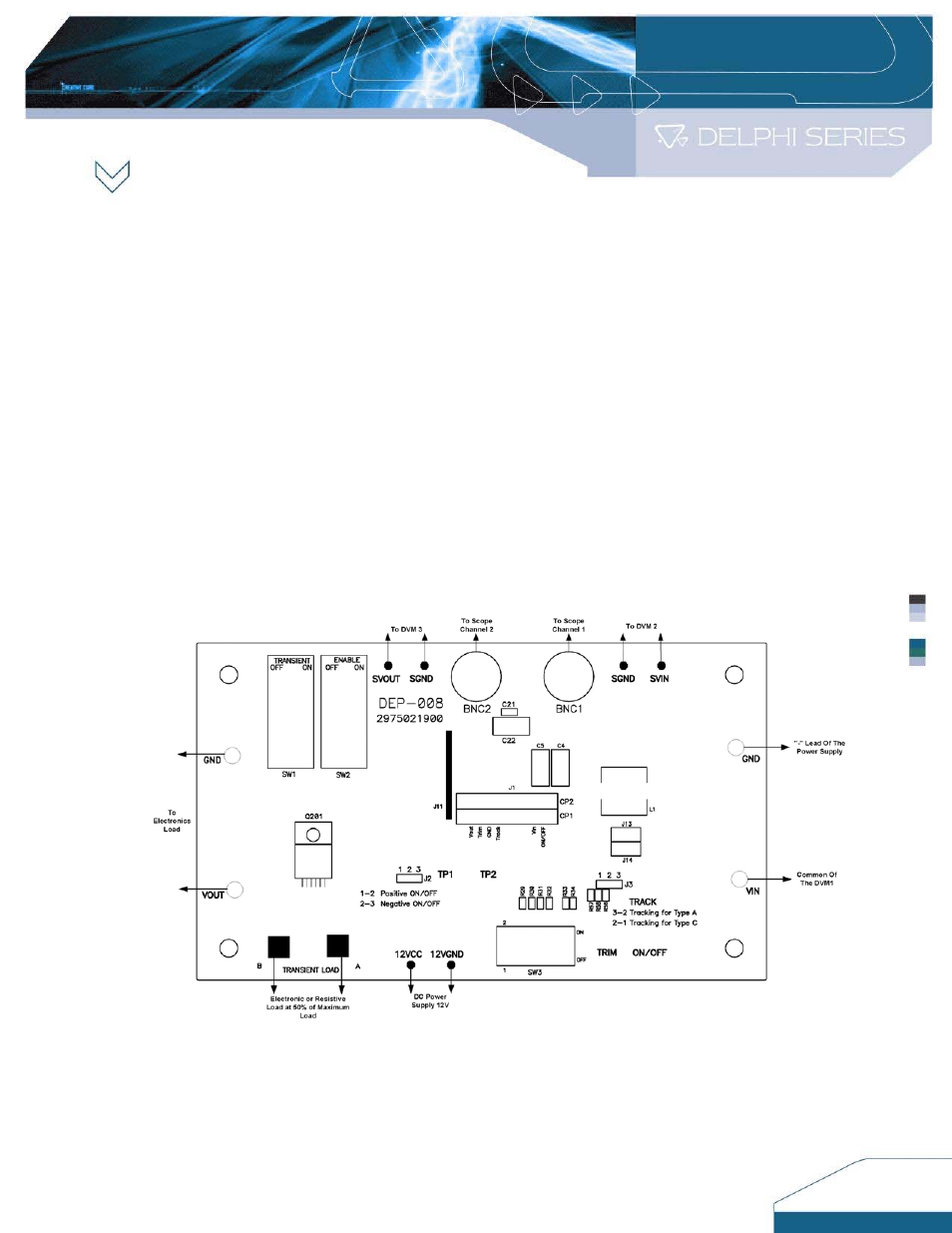

Figure 1. Set-up Diagram
