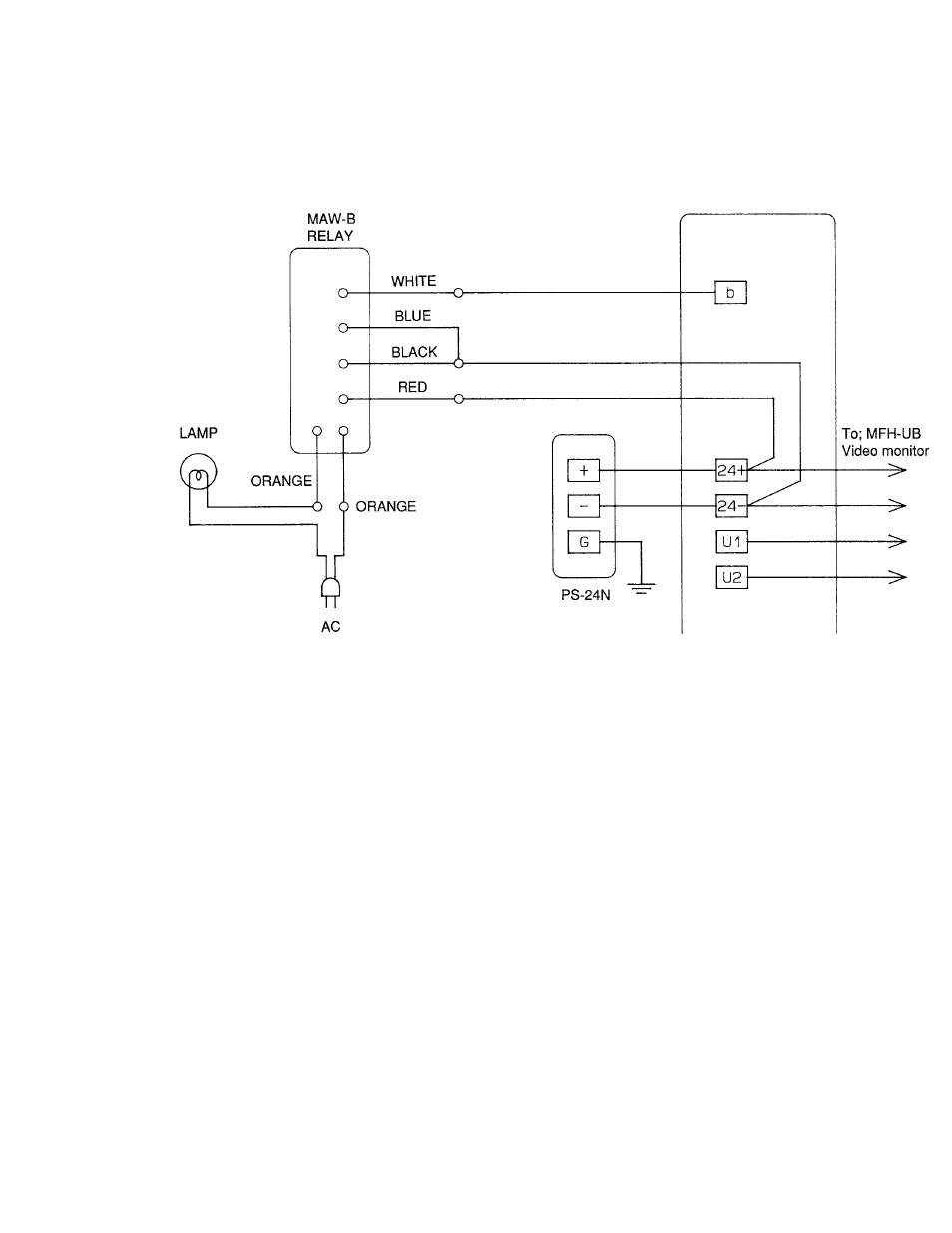

(3) When installing an iliumlnation lamp;
MFW-P1
1-CAMERA ADAPTOR
3
OPERATIONS
When MF-DL video door station calls in;
When call button is pressed on MF-DL, electronic mono tone (or chime tone, if connected to
BGR-lOA) sounds and image appears on inside video monitors.
Reply within 45 seconds.
Depress a corresponding selector button, and communicate by pressing TALK button.
To listen, release TALK button.
Depress DOOR RELEASE button (Door release can be activated also in non-communicating mode).
After communication, depress OFF button, and the image goes off.
(the image is on for approx. 2 minutes and half after station selection).
Monitoring;
To monitor the outside, press VIDEO MONITOR button, and the image appears for approx. 2 minutes
and half.
When system does not work properly, press reset switch on MFW-Pl adaptor and restart.
