INSTALLATION

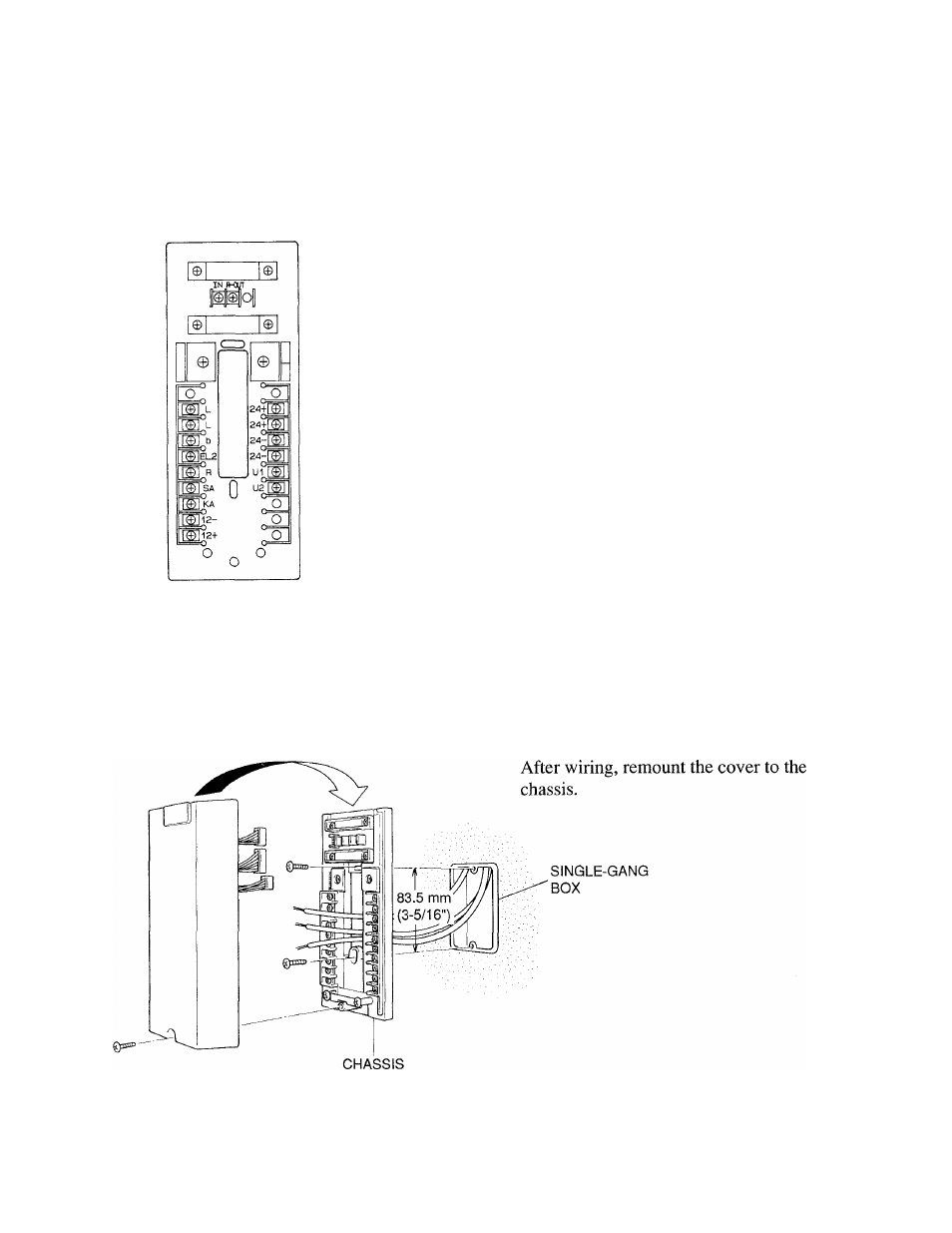

(1) ACTUAL TERMINAL LOCATION;
IN
R-OUT
R
EL2
12
+
KA
SA
24+
U1
U2
12
-
24-
: for connecting coaxial cable to
MF-DL.
: for connecting coaxial cable to
MFH-UB.
: for door release.
: for illumination lamp control.
: for occupied LFD.
: for door release control.
; for communication power supply.
: for camera control.
: for calling detection.
: for power supply.
: for input control.
: for output control.
(2) WALL-MOUNTING;
Attach the chassis to SINGLE-GANG BOX
with the supplied 2 screws.
