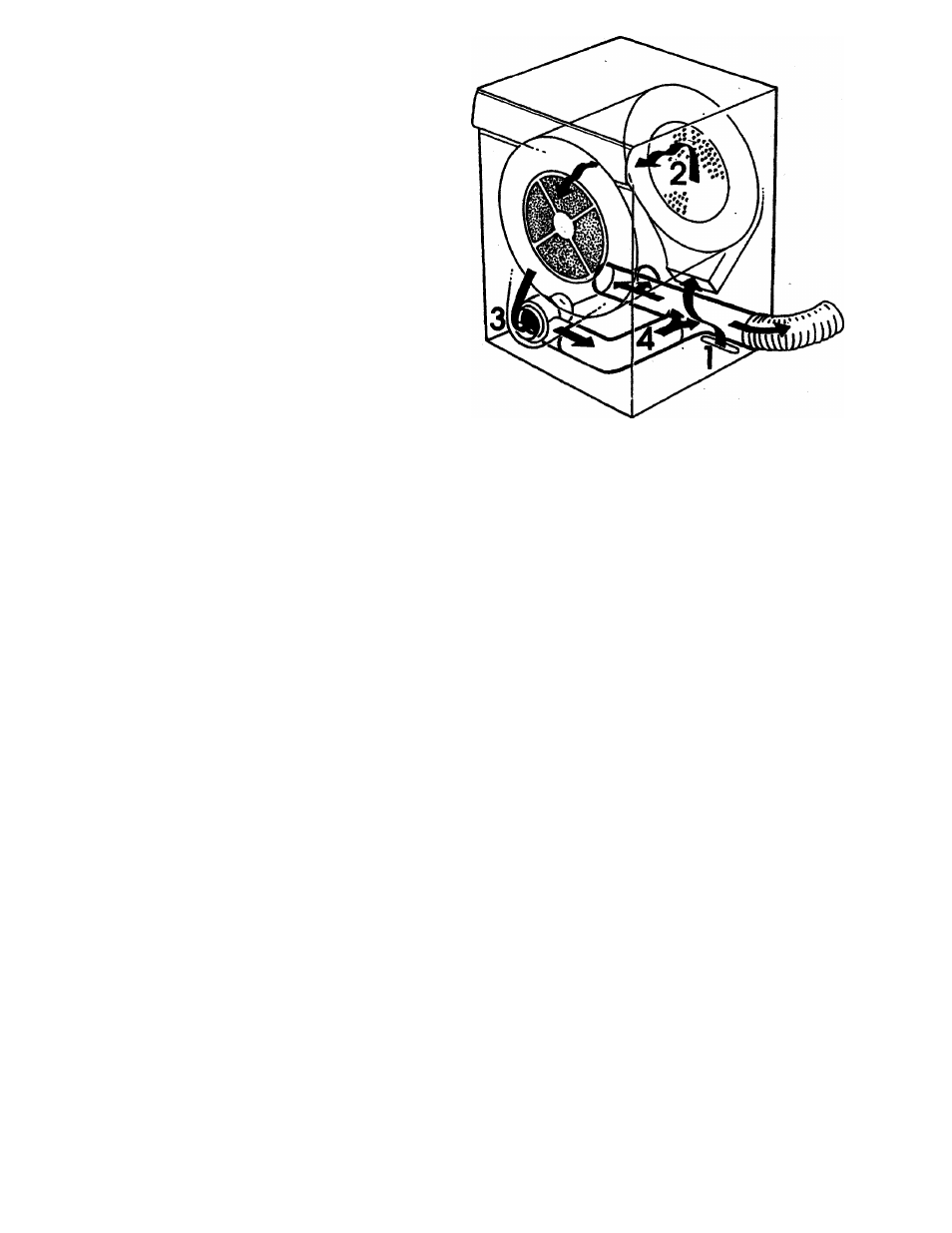

How the dryer works
1 Air is drawn from the room through
the bottom of the machine.
An electric heater heats the air
passing into the drum.
Warm air enters the drum through
holes in the back and dries the
washing. The drum rotates, and the
two paddles prevent garments from
becoming tangled.
The air passes through the tint filter
and the front of the drum and enters
the fan.
Air is forced out through the outlet
through a fixed duct (see page 10)
The temperature remains at
approximately 40° C (104° F)
as long as the clothes are
moist. When the clothes dry,
the temperature rises and the
heater element is automatically
switched off at the preset
temperature. The air that is not
heated is then drawn through
the drum and coots the clothes
for about 15 minutes.
The thermostats which switch
off the heating at normal and
low temperature 60° C (140°
F), 45° C(113° F) are fitted
next to the fan. There are
atso two thermostats next to
the heater eiement. One
switches off the heater
element if the temperature
becomes too high and the
other switches off the
compiete tumbie dryer if a
fauit occurs. This overheating
protection, which is fitted at
the rear of the machine, can
be reset when the
temperature has faiien. Refer
to the section entitled "If the
machine does not work"
(page 5).
Important Safety Instructions
WARNING - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow
basic precautions, including the foltowing;
1. Read all Instructions before using the
appliance.
2. Do not wash or dry articles that hav
been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry-
cleaning solvents, other flammable or
explosive substances as they give off
vapors that could ignite or explode.
3. Do not allow children to play on or in
the appliance. Close supervision of
children is necessary when the
appliance is used near children.
4. Before the appliance is removed from
service or discarded, remove №e door
to the washing or drying compartment.
5. Do not reach into appliance if the tidb,
agitator, or drum is moving.
6. Do not install or store this appliance
where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the
appliance or attempt any seiMceing unless
specificaily reccxnmended in the user-
maintenance instructions or in published
user-repair instmctions that you
understand £ui have the skMs to cany out.
9. Do not use fabric softeners or products to
eliminate static unless recommended by
the manufacturer of the fabric softener or
product.
10. Do not use heat to dry articles containing
foam rubber or similarly textured rubberiika
materials.
11. Clean lint screen before or after each
load.
12. Keep area around the exhaust opening
and rejacent surrounding areas free from
the accumulation of lint, dust, and dirt.
13. The interior of the machine and exhaust
duct should be cleaned periodically byu
qualified service personnel.
14. The dryer door has a magnetic
lock, wt^ means that it can be
opened from the inside.
A door
switch automatically stops the dryer
if the door is opened. The machine
does not start automaticaily if the
door is closed, e.g. if a child should
get into the dnmn and close the door
from the inside. In order to restart
the machine, the Start pushbutton
must be pressed.
15. The machine is protected by a
thermostat fitted by the heating
element, which turns the machine
off if the temperature is too high.
