16.
Place tube caps on leg tube and handle as
shown in figure 10. Stand cart up on its front
end again and assemble the leg tube as shown
in figure 9 using four 1/4” x 1-3/4” truss head
screws through side panels and leg tube Secure
with flat washers and hex nuts. See figure 9.
17. With the cart still standing on its front angle
assembly, assemble the handle tube.
18. Place the handle tube over the side panels and
line up the four holes. Assemble four 1/4” x
1-3/4” truss head screws through the side
panels and handle. Secure with flat washers,
hex nuts and cover threads with rubber caps.
See figure 10.

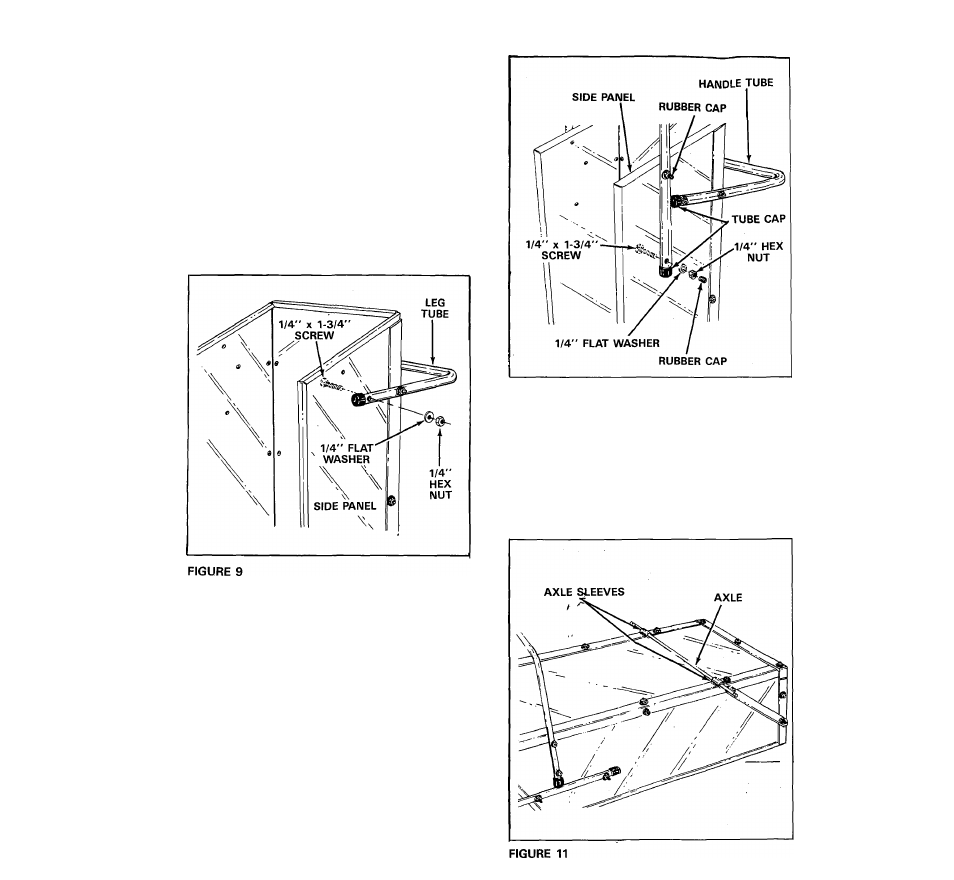

FIGURE 10
19. Now lay the cart down, do that it is upside
down, to assemble the wheels. See figure 11
and 12.
