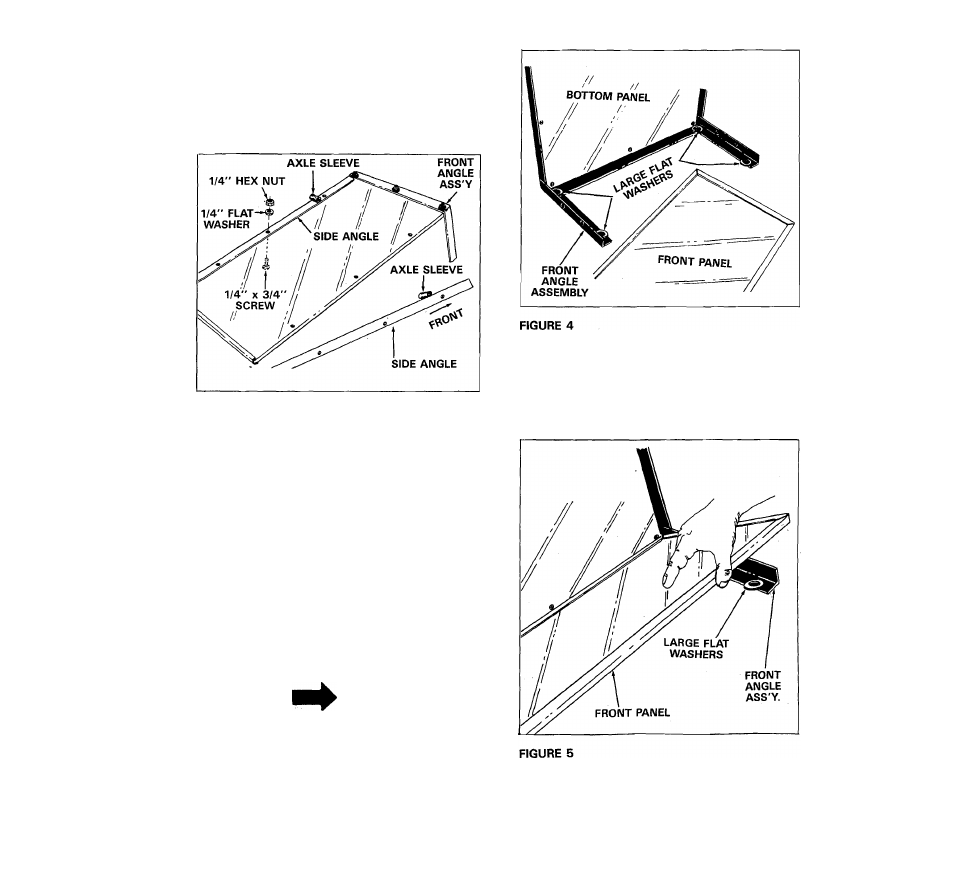

3. Turn front angle assembly and bottom panel
upside down as shown in figure 3.
4. Lay the two side angles on bottom panel so that
the axle sleeves are towards the front angle
assembly. See figure 3.
8. Lay the front panel on top of the four large
washers and in the front angle assembly. See
figure 5.
FIGURE 3
5. Secure the two side angle assemblies to the
bottom panel with six 1/4" x 3/4" truss head
screws, flatwashers and hex nuts. Only make
finger tight, until all six screws are in place, then
tighten securely. See figure 3.'
6. Stand cart on its front end with front angle
assembly on the floor. See figure 4.
7. Place four large 1-1/2" dia. flatwashers (used on
wheel axle) on the inside of front angle
assembly. See figure 4.
NOTE
These washers act as shims and are
just for assembly purposes. You will
remove them later.
