Agri-Fab 7 cu ft. Farm/Garden Cart 45-01761 User Manual
Page 4
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

9.

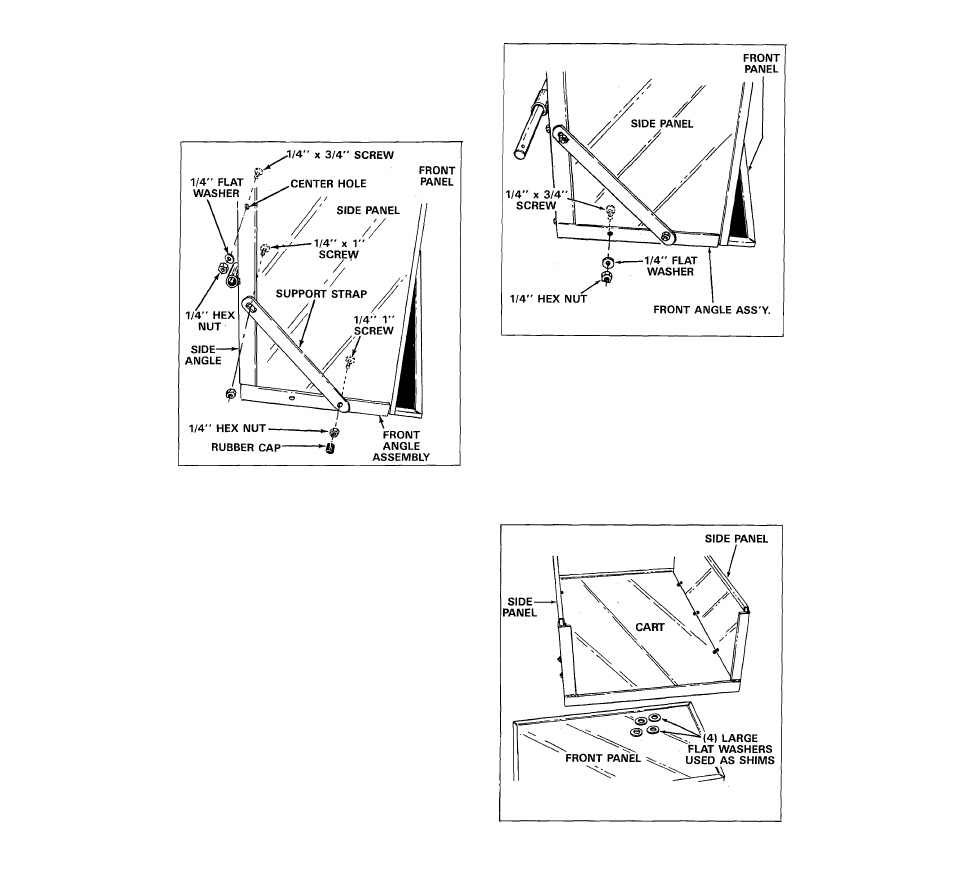

Place one side panel in position, against side
angle and down on top of front panel. Start one
1/4" X 3/4" truss head screw through the center
hole in side panel and side angle. Secure with
hex nut and flat washer. See figure 6. Make only
finger tight at this time.
FIGURE 7
15. Lay cart down on floor, so that the sides are up
in a normal position. Remove the front panel,
by sliding it up, and remove the four large
washers you used for shims. See figure 8.
FIGURE 6
10. Start one 1/4” x 1” truss head screw through
front hole on side panel and side angle. Start
another 1 /4” x 1” truss head screw through
top hole on side panel and front angle assembly,
next place support strap over these two screws,
secure with hex nuts and cover threads of top
screw with a rubber cap. See figure 6. Make
only finger tight at this time.
11. Repeat steps 9 and 10 for the other side panel.
12.
Assemble one 1/4" x 3/4" truss head screw
through bottom hole in side panel and front
angle assembly. Secure flat washer and hex nut.
See figure 7. Make only finger tight at this time.
13. Repeat step 12 for the other side panel.
14. Place axle through axle sleeves as shown in
figure 11 page 5. Tighten all nuts and screws
securely.
FIGURE 8
