F734-E SERIES TERMINALS
2
2.2.2 Connection with Eavesdrop Interface
The cable Kit 94A054030 provides two cables; one for Eavesdrop
connections and one for Modem connections.
The Eavesdrop connection enables the F734-E terminal to be
connected to an existing asynchronous RS232 line (for example
between the host computer and video terminal).
The modem connection enables the terminal to be connected to a
host system using a modem.
B

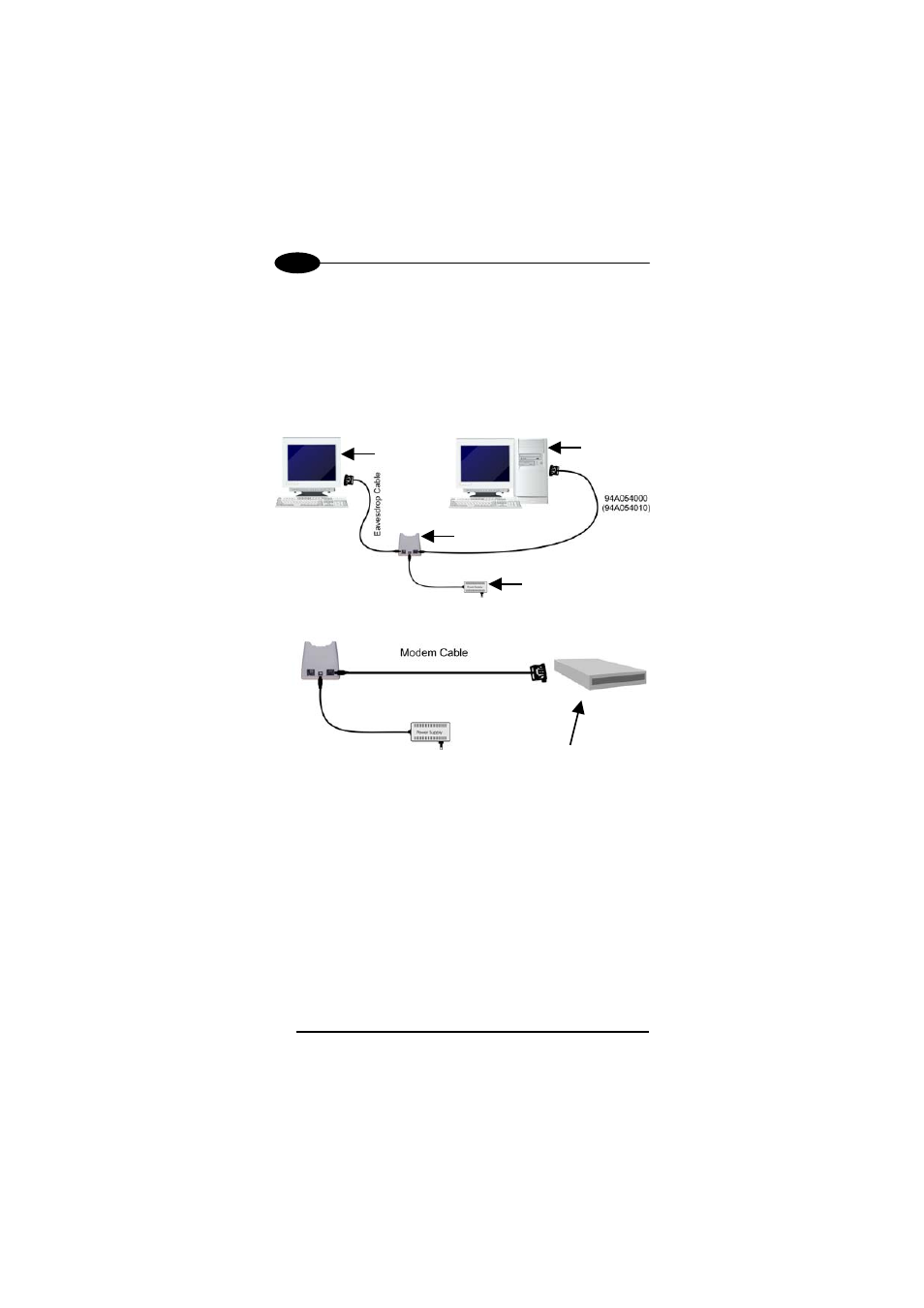

Figure 9 - Eavesdrop and Modem Connection
E
D
C
A
Key:
A) Video
terminal
B) Host computer
C) Cradle F951
D) Power supply
E) Modem
