Step 13

• Parts Needed For •

• Main Roof Beam Assembly (1)

Roof Beam/Braces

• 6227 Roof Beam Brace (2)

WP26

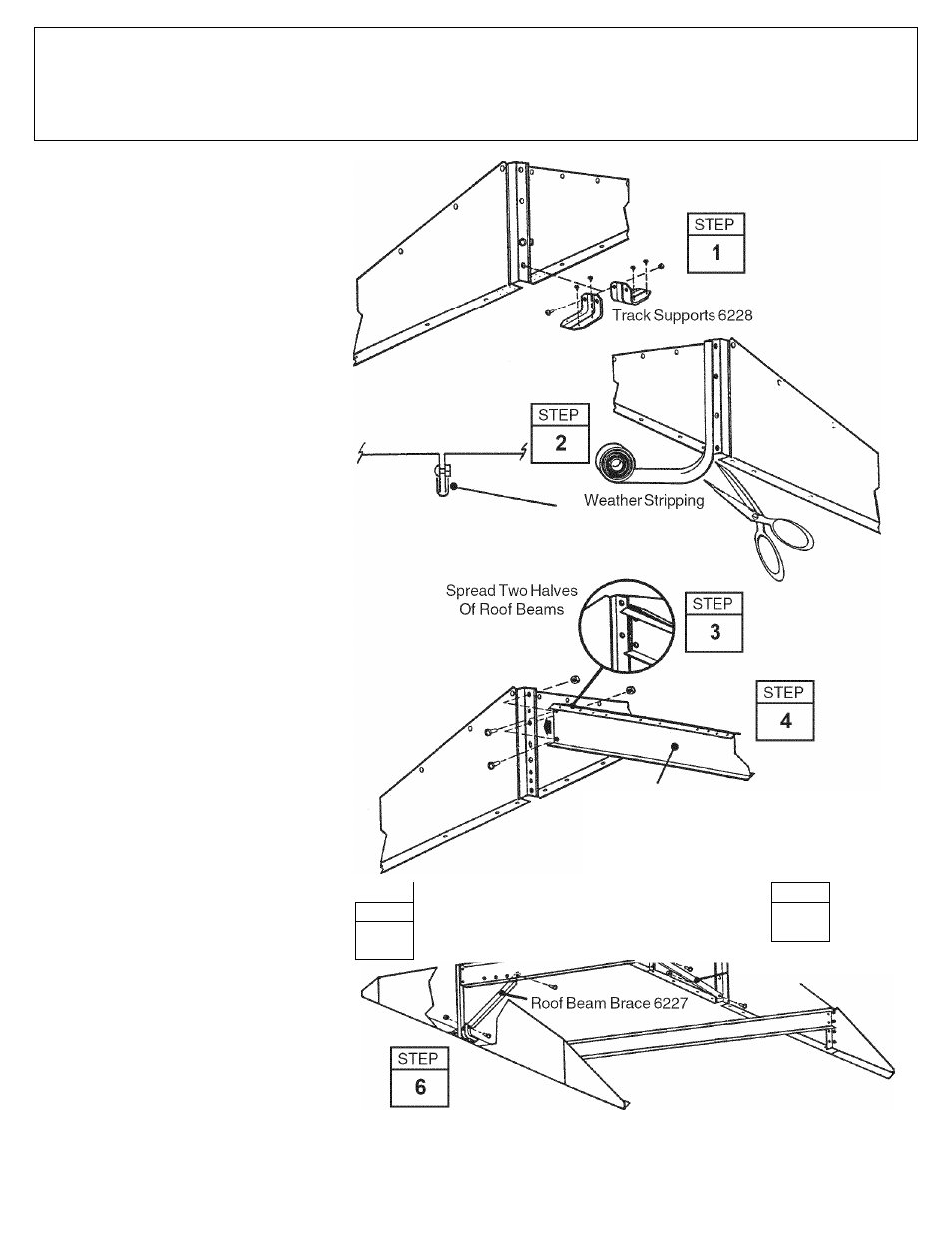

Fasten the

track supports to the

front gable assembly only, as shown.

Wrap the

weather stripping tape

around the two joined edges of the

large left and right gables. See dia

gram. Cut the weather stripping to

length and repeat on next gable set.

Spread the two halves of the double

roof beam and fasten to the gable
brace of the front gable.

Fasten the other end of the double

roof beam to the gable brace of the
rear gable.

5 Fasten a

roof beam brace to the

double roof beam behind the front
gable by placing the tab on the end of
the brace

between the roof beams.

Align the tab with the

fourth hole and

fasten the brace with a bolt and nut.

Fasten the lower end of the roof

beam brace to the

track support

with a bolt and nut.

Fasten a

roof beam brace be

tween the rear gable and the roof

beam at the third hole, as shown.

10397 Roof Beam (Double)

•k. ...--

STEP

Roof Beam Brace 6227
