Step 12
• Parts Needed For •
Gables/Roof Beams
• Left Gable Assemblies (2)
• Right Gable Assemblies (2)
• Single Roof Beam Assemblies (2)
• 6636 Gable Brace (2)
1

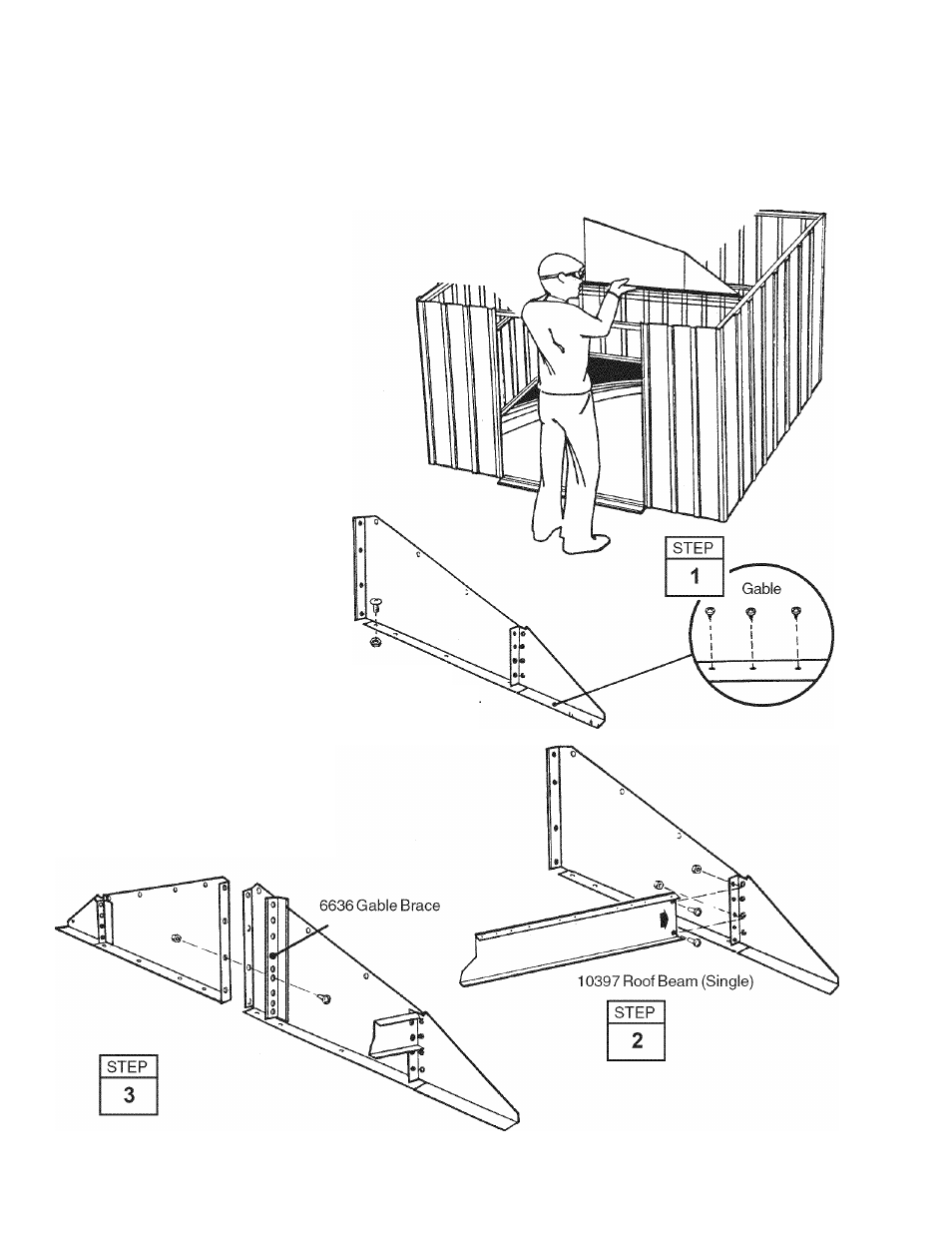

Lift and fasten a right and left
gable, under angle at corner, to the
door track and rear wall angle with
screws.
Hint: On the front gable, leave out 2
screws closest to center gable leg.
On the rear gable, use a bolt and nut
at the overlapping rear wall angle.
2
Fasten the
single roof beam to
the outer gable leg as shown using
bolts.
Hint: The holes along the length of
the beam must be on the
top surface.
Repeat Step 1 forthe opposite side of
building.
3
Join the
left and right gables
together with a
gable brace using a
bolt in the second hole from the
bottom
only. Do this step for both
front and rear gables.
Repeat Step 2 forthe opposite side of
building.
Nut and bolt
at rear of building
25
