DIN REAR-MOUNT (Method B)
Ifyourvehicle is a Nissan,Toyota, follow
these mounting instructions.
Use the screw holes marked T (Toyota),
N (Nissan) located on both sides ofthe
unit to fasten the unit tothe factory radio
mounting brackets supplied with your
vehicle.
Side view showing
Screw Holes marked T,N

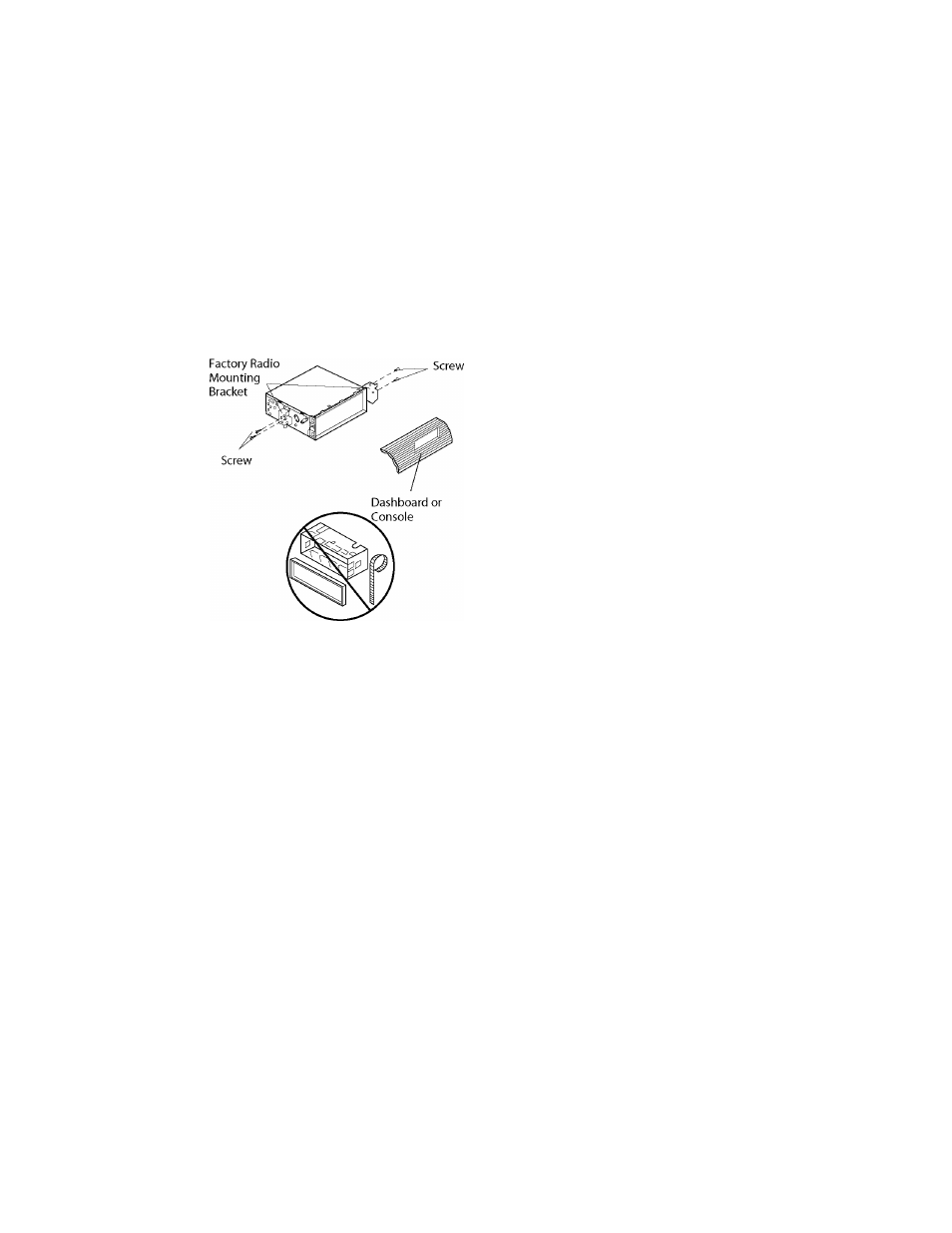

To fasten the unit to the factory radio
mounting brackets.
Align the screw holes on the bracket with
the screw holes on the unit, and then
tighten the screws (5x5mm) on each side.
Note: the outer trim ring, sleeve and the
metal strap are not used for method B
installation.
