Choose the mounting location where
the unit will not interfere with the
normal driving function ofthe driver.
Before finally installing the unit,
connect the wiring temporarily and
make sure it is all connected up
properly and the unitand the system
work properly.
Use only the parts included with the
unit to ensure proper installation.
The use of unauthorized parts can
cause malfunctions.
Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
Install the unit where it does not get in
the driver's wayand cannot injure the
passenger ifthere is a sudden stop,
like an emergency stop.
Ifinstallation angle exceeds 30° from
horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would
be subject to high temperature, such
as from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from "Front" (conventional DIN Front
mount) or "Rear" (DIN Rear-mount
installation, utilizing threaded screw holes
atthe sides ofthe unit chassis).
For details, refer to the following
illustrated installation methods.
TAKEOUTSCREWBEFORE
INSTALLATION
Before install the unit, please remove the
two screws.
Take out screw before installation
DIN FRONT-MOUNT (Method A)

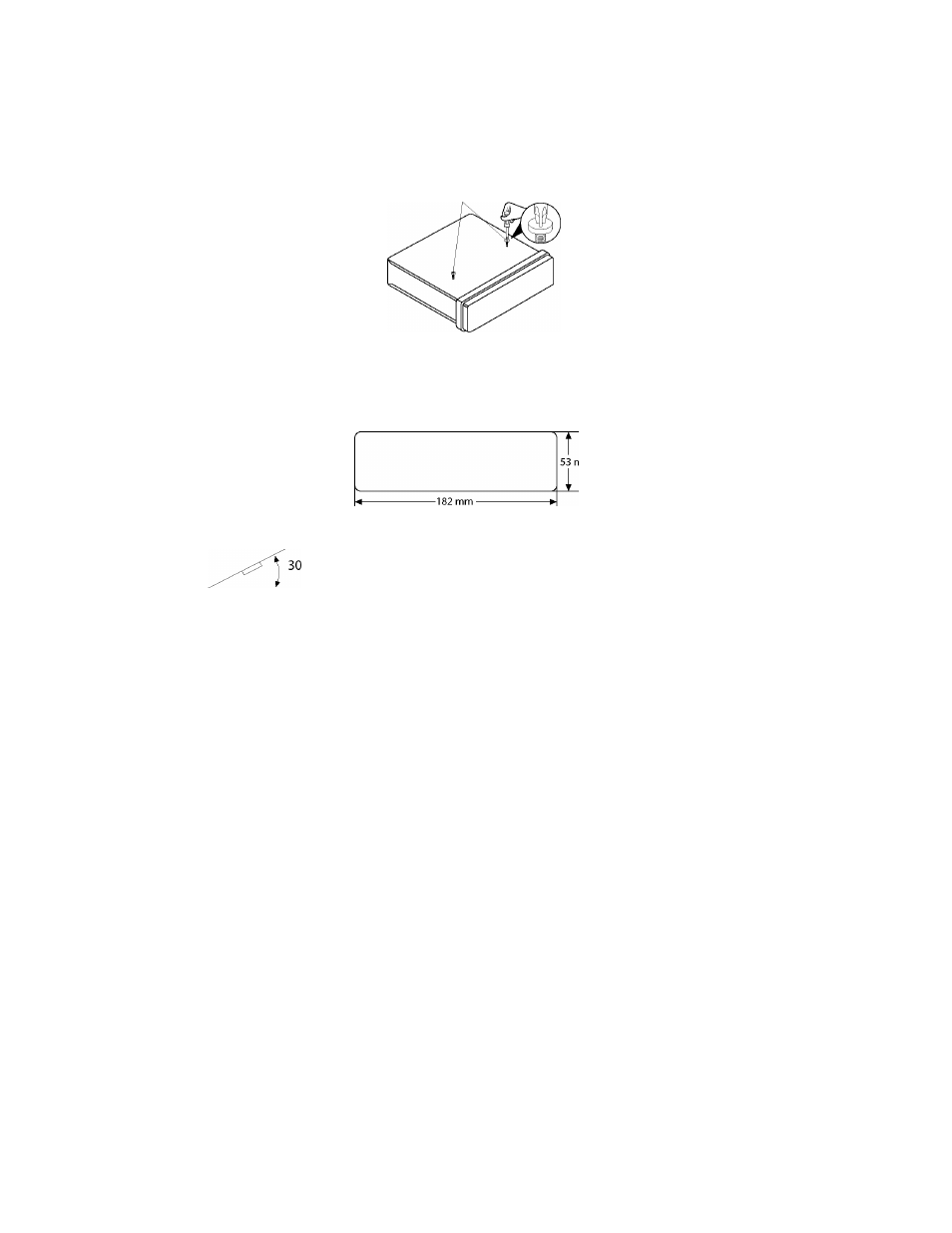

Installation Opening
This unit can be installed in any dashboard
having an opening as show below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off,
and then disconnect the cable from
the vehicle battery's negative (-)
terminal.
2. Disconnect the wire harness and the
antenna.
3. Press the release button on the front
panel and remove the control panel
(see the steps of "to detach the front
panel").
4. Lift the top ofthe outertrim ring then
pull it out to remove it.
5. The two supplied keys release tabs
inside the unit's sleeve so you can
remove it. insert the keys as far as they
will go (with the notches facing up) into
the appropriate slots at the middle left
and right sides ofthe unit. Then slide
the sleeve offthe back ofthe unit.
