VOM-78T OPERATIONS MANUAL

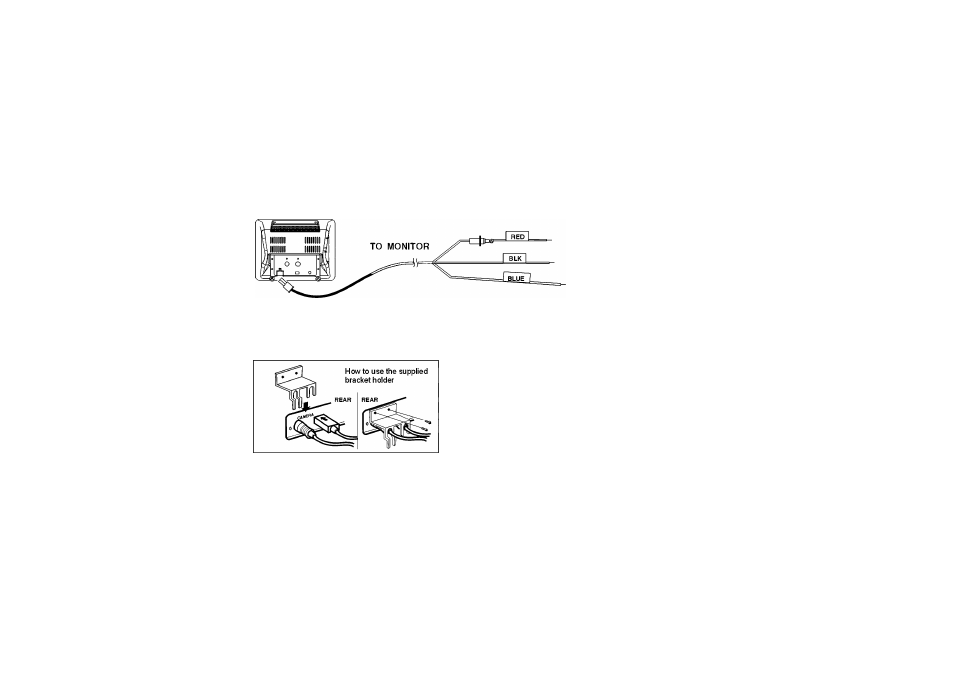

REAR OF MONITOR
RED (To Power
DC 10V or 32V)
BLK (Ground)
BLUE (Reverse Trigger)
CONNECTIONS
Caution
Before making the connections, disconnect
the ground terminal of the car battery to avoid
short circuiting.
The plugs should be fully inserted into the
connectors or jacks. A loose connection may
cause the unit to malfunction.
FIGURE 3
