VOM-78T OPERATIONS MANUAL

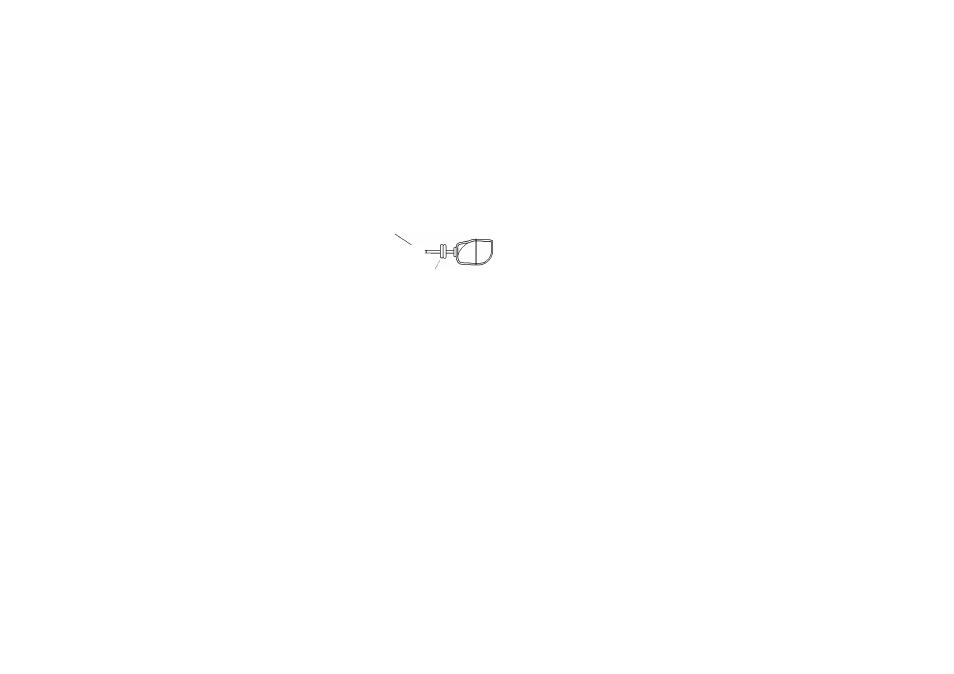

For Tilt Camera Installation in the CA1 Postion
TO MONITOR
CAMERA #1 INPUT
WATERPROOF CAMERA CONNECTOR
GROMMET TO SEAL THOUGH
VEHICLE EXTERIOR
For Tilt Camera / Monitor Installation with existing VEC65 cable installed
TO VOM 78T
VOM 783T
65 ft
^
'5
31100031
ADAPTOR CABLE
EXISTING VEC 65 CABLE
31100032
ADAPTOR CABLE
note:
The audio line will
be used as the camera
tilt line resulting in
no Audio
For Non Tilt Camera Installation in the CA1 Postion
TO MONITOR
CAMERA #1 INPUT
WATERPROOF CAMERA CONNECTOR
65 ft
31100033
ADAPTOR CABLE
=dO tOn=^^^3=cO
GROMMET TO SEAL THOUGH VEHICLE EXTERIOR
VOM-78T
