Chapter 4: Appendices – RS-485/422 Interface 4-13
Titan/cPCI User’s Manual, ver. 0.00
RS-485/422 Cable Wiring
You can wire Titan/cPCI adapters in various ways to
communicate with RS-485/422 peripherals. This section
describes a few examples of RS-485/422 cabling schemes.
Figure 5 describes a 4 wire cabling scheme between a port on the
Titan/cPCI adapter to a port on the RS-485/422 peripheral.

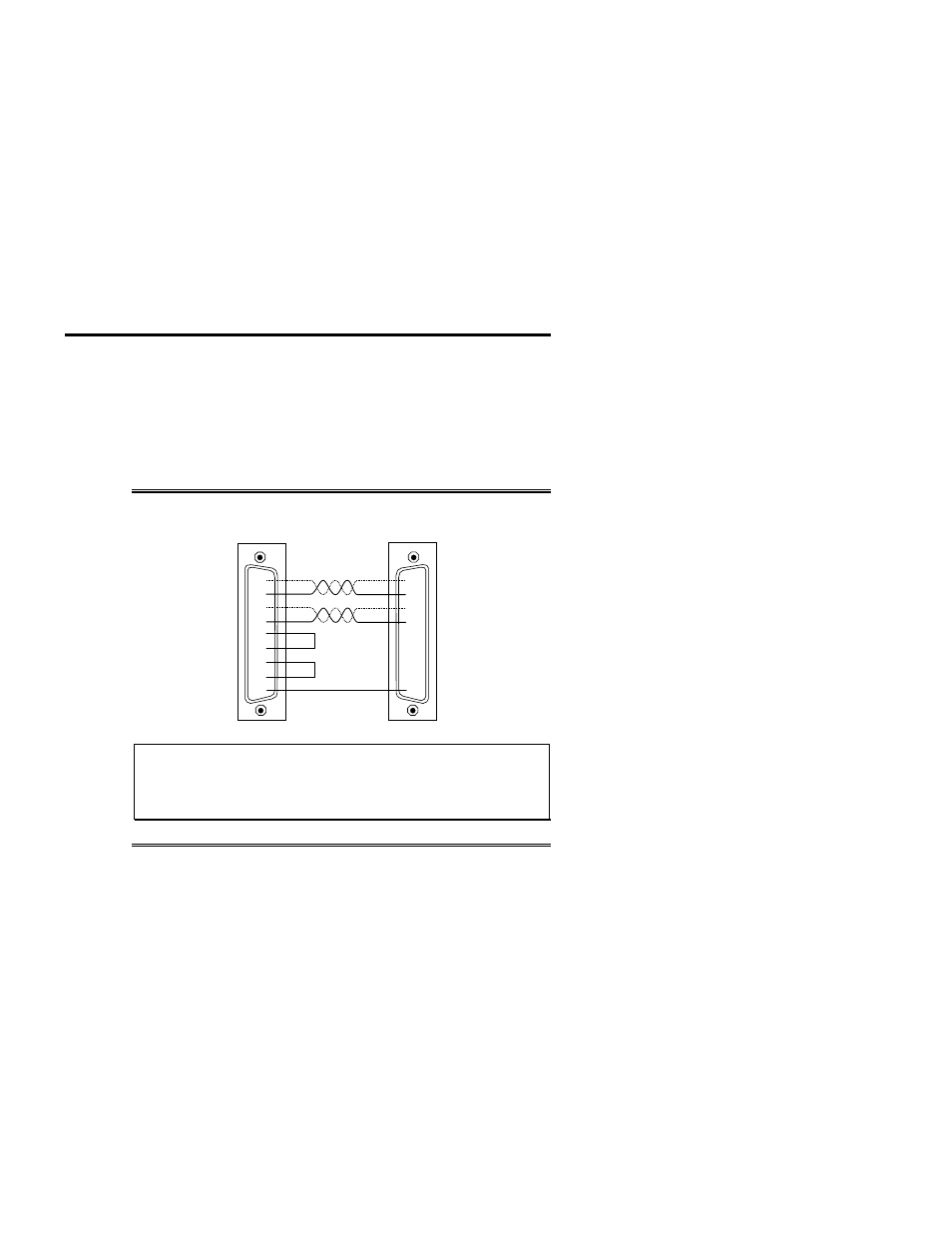

Figure 5: RS-485/422 wiring diagram (4 wire)
RTS +
RTS -
CTS +
CTS -
TxD +
TxD -
RxD +
RxD -
RxD + TxD +
RxD - TxD -
RTS -
CTS -
RTS +
CTS +
SR SR
Titan/cPCI adapter RS-485 peripheral
3
4
2
5
6
9
7
8
1
Technical Tip
The RS-485/422 electrical interface consists of a differential
signaling scheme. You should always connect the signals with
twisted pairs
