2.2 Rack Mounting: CRxF/CRxR 21
IMPORTANT! Ask yourself these questions before beginning installation:
1. Is sufficient power is available?
2. Is sufficient space is available to allow for proper airflow both inside and around
the display?
3. Is there a possibility the air temperature inside the rack will exceed the C
Y
RAQ
21’s rated specification? (Operating temperature: 50°F....113°F ((10°C....45°C).)
3
N
OTE
: Though this product is designed to operate up to 113°F (45°C) with proper
ventilation, the life span of any electronic device is shortened when it is consistently
operated at high temperatures—keep rack temperature as low possible
4. Is there a possibility that the ambient humidity around the display will exceed its
rated specification? (Relative Humidity, non-condensing: 10%....80%.)
C
Y
RAQ
Display
Server Rack
(Cutaway)
CRMS UNL
Universal Mounting
Plate
3
N
OTE
: CRMS Universal
Mounting Plates Affixed Directly to
Server Rack’s Mounting Holes
Mounting
Plate Bolt
(Supplied)
C
Y
RAQ Mounting Nuts
(Supplied)

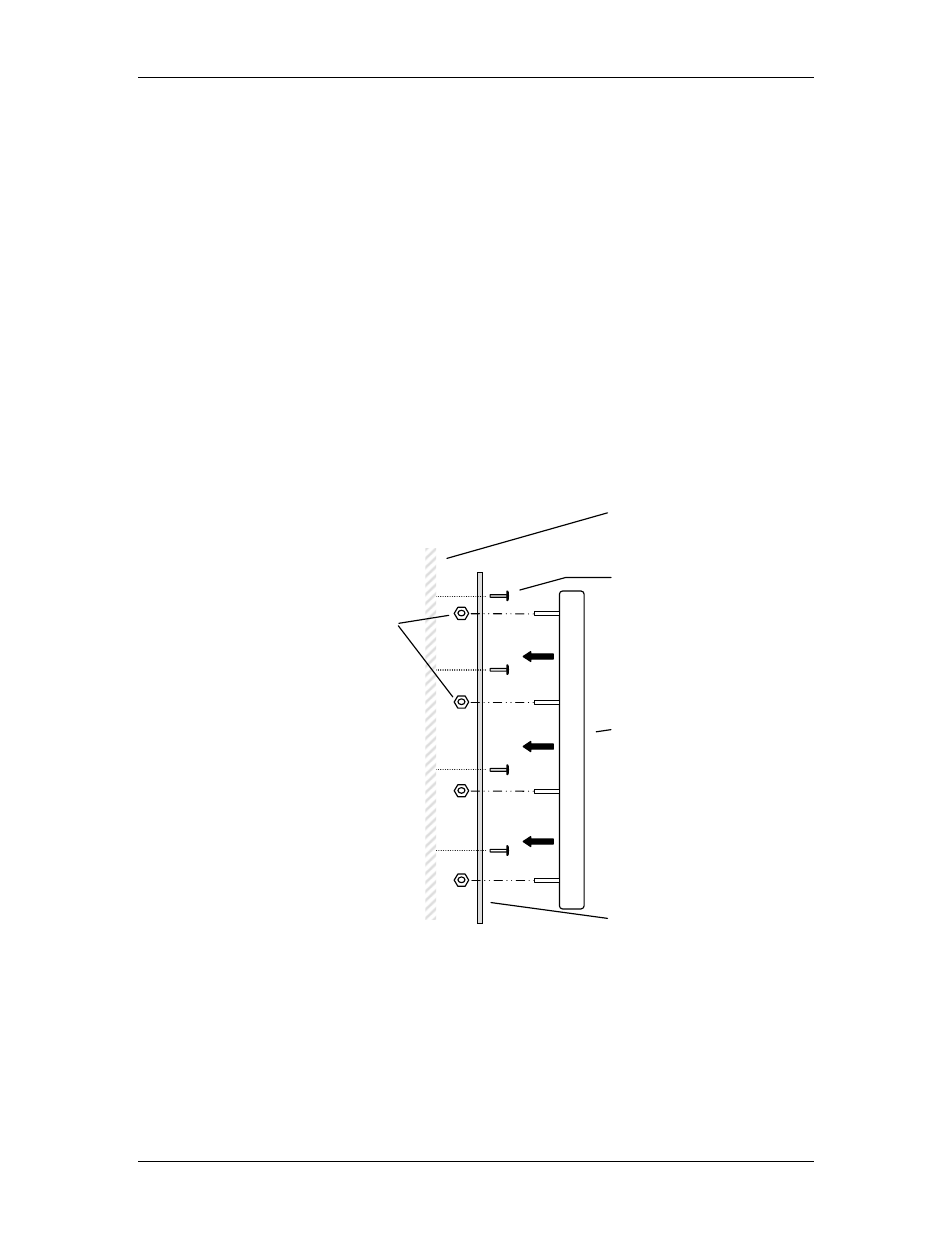

Figure 1: Installation Assembly
