INTRODUCTION
LCD Monitor Base installation Guide

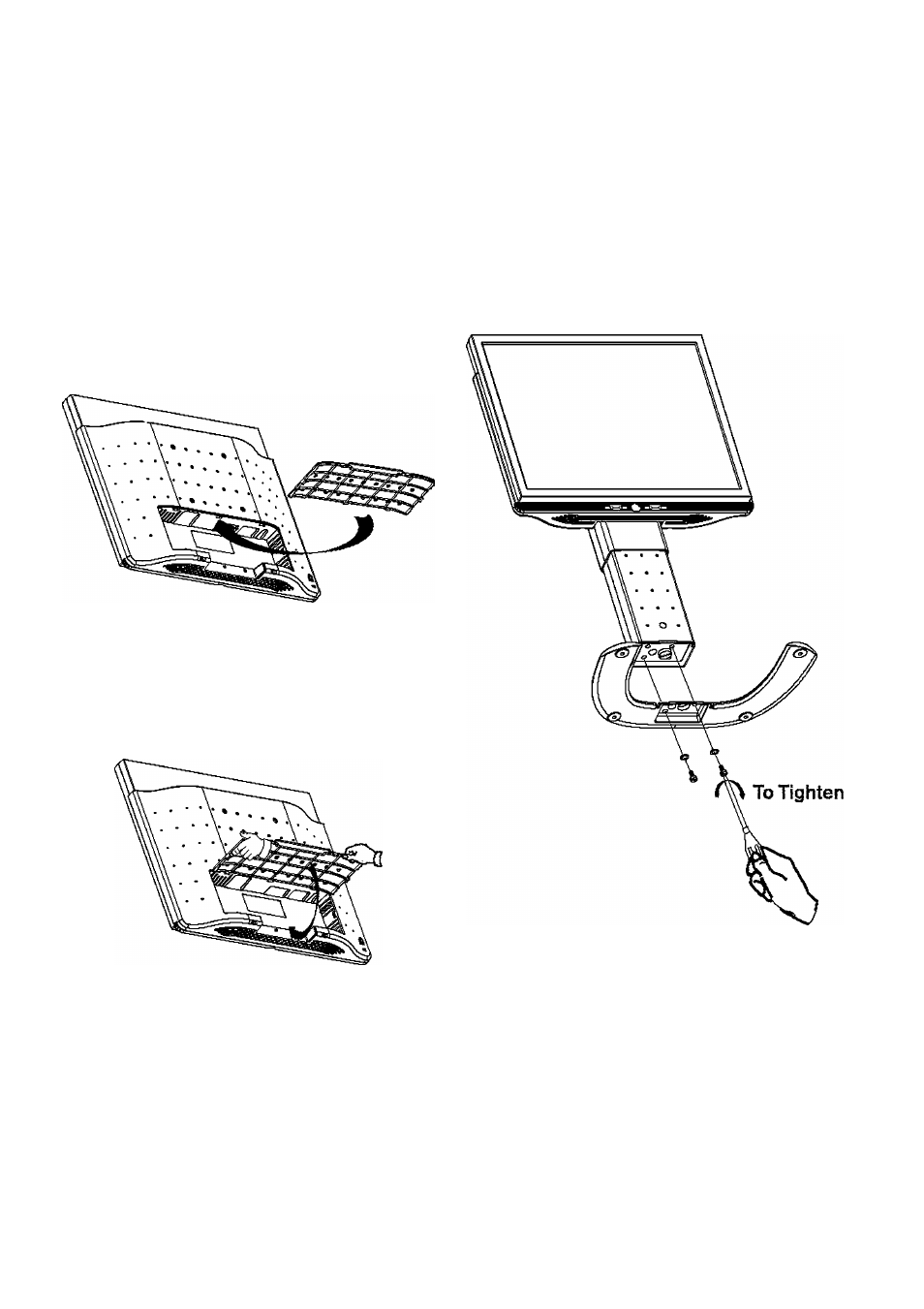

First attach the back cover to the
monitor. Carefully match up the three
hinges at the top of the cover with the
three corresponding slots; slide and
lock into place.
Once the back cover is attached, you
can rotate it down to a fully closed
position.
Using a flathead screwdriver, insert
the screws and tighten in the direction
indicated.
6
♦ ♦ ♦
