STEP 7-(C0NTiNUED) GRILL BODY/CART ASSEMBLY- BONZA IVIODELS

•Lay Grill Body on its back side with control panel up. Place Grill Body between legs and Side Tables

with Hose and Regulator on Wheel Leg end. Do not lav GriM Body on, or step on Hose and

Regulator.

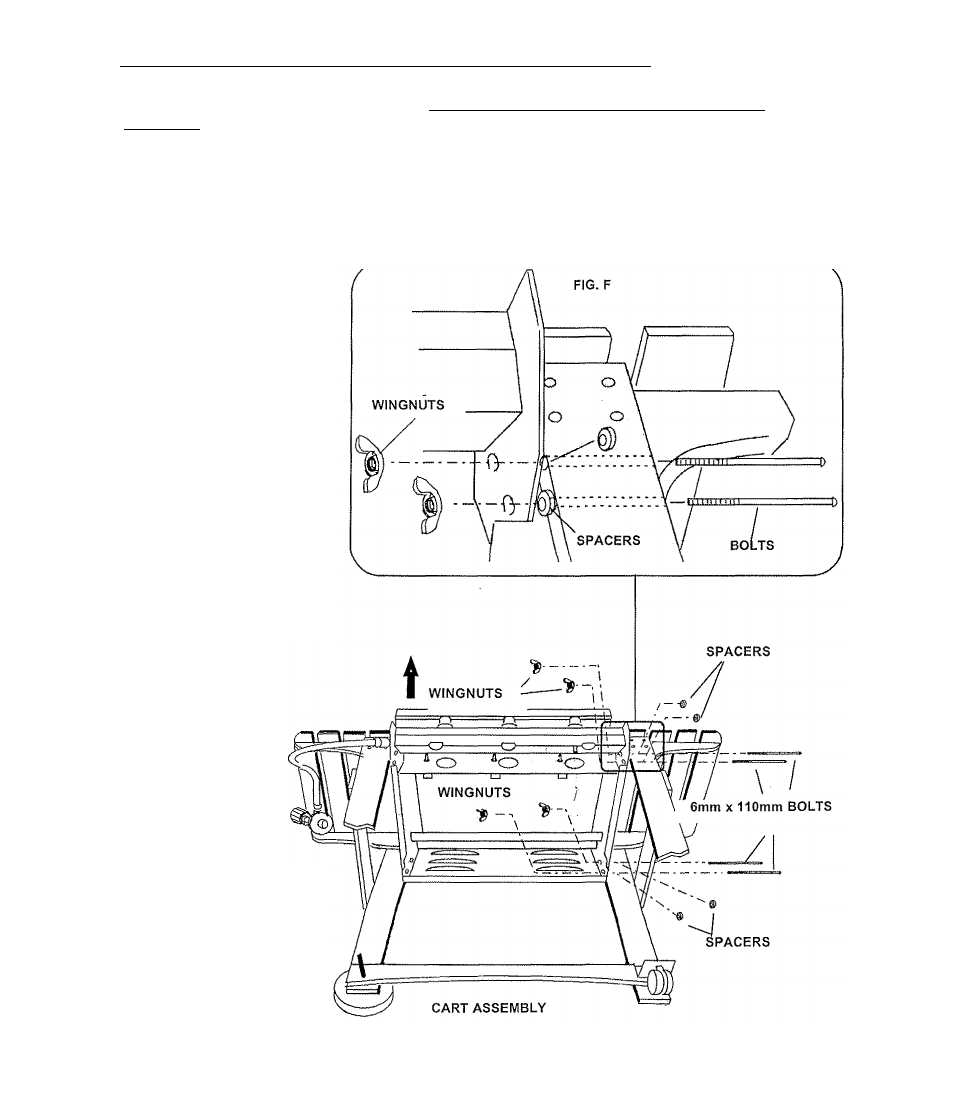

•Align slotted holes on sides of Grill Body with holes through edges of legs (Fig F). Hold Spacers

between Leg and Body (Needle Nose Pliers may help) and insert Body Bolts through Leg, Spacers,
and slotted holes in Grill Body. Secure using Wing Nuts, but only partially tighten. Repeat assembly

for remaining three Cart Legs.

•Using a second person, turn

full grill assembly upright with
wheels and iegs/casters on
the ground. Grill Body
should slide down and seat
itself within the slotted holes,

if not, loosen the Body Bolts

and push Body down at the
corners. Tighten all Body
Bolts and Wing Nuts and

then tighten all other Bolts.

•Adjust the Lock Lever up or

down on each Caster to lock
or unlock as desired. (NOTE:
Deluxe models do not use
casters.)

CONTINUE ASSEMBLY OF

BONZA & BONZA DELUXE

MODELS AT STEP 8.

CONTROL PANEL UP
GRILL BODY LYING
ON BACK SIDE
