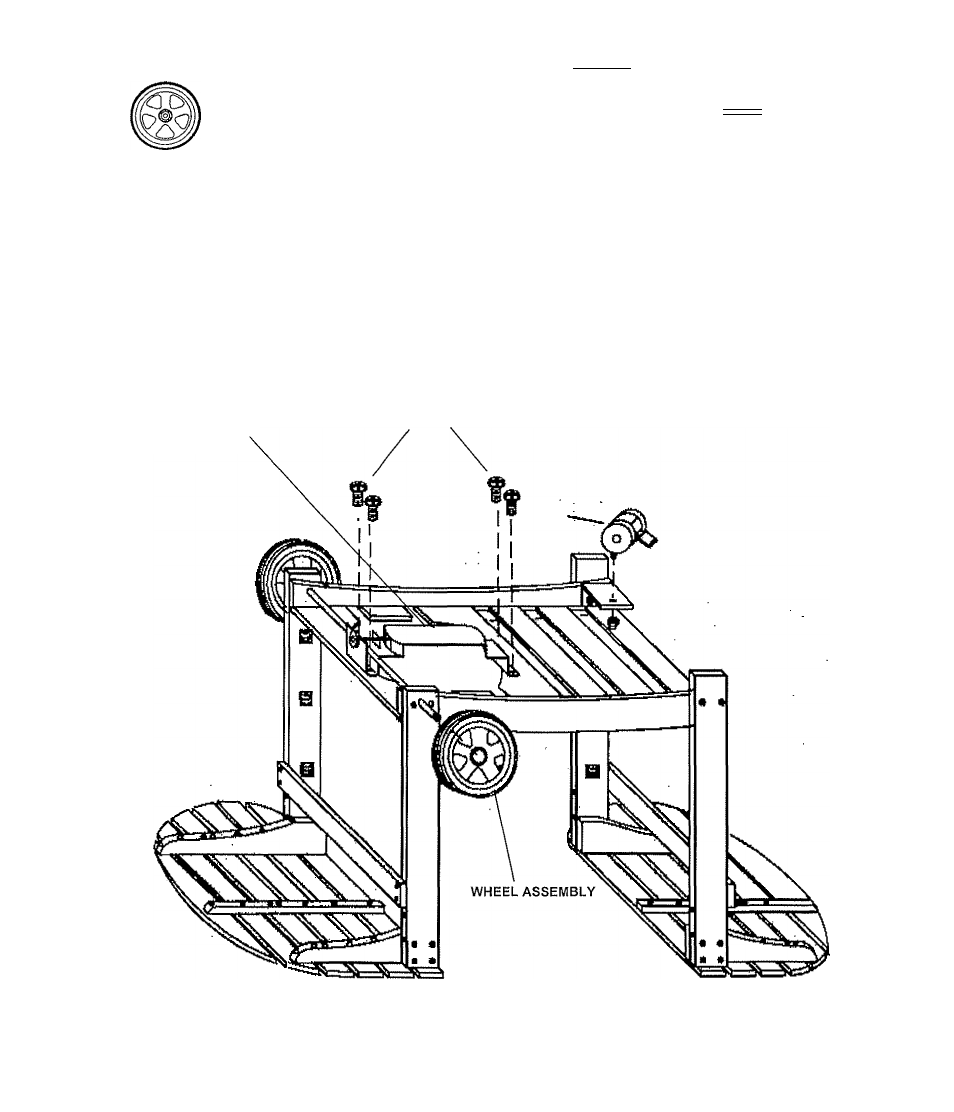

STEP 5-WHEEU CYLINDER BRACKET ASSEMBLY
TOOLS:
(ITEIVI 23, 24, & 25)
WHEEL ASSEMBLY
2 PCS
(ITEM 27) 4 pcs
1/4”
X
1/2” BOLT
-------
(ITEM 26) CYLINDER BRACKET
•Slide Axle out. With the notched side of Cylinder Bracket down, secure the Cylinder Bracket to
wheel end of Bottom Shelf using >
4
” x
V
2
Bolts and tighten.
•Slide Axle back into position and push a Wheel Assembly onto each end of axle until the spring clip
locks into place.
•On Deluxe Models, slide end caps onto each Fixed Leg.
•GO TO STEP 7 FOR BONZA AND BONZA DELUXE MODELS.
CYLINDER BRACKET
1/4”
X
1/2” BOLTS
