A7C

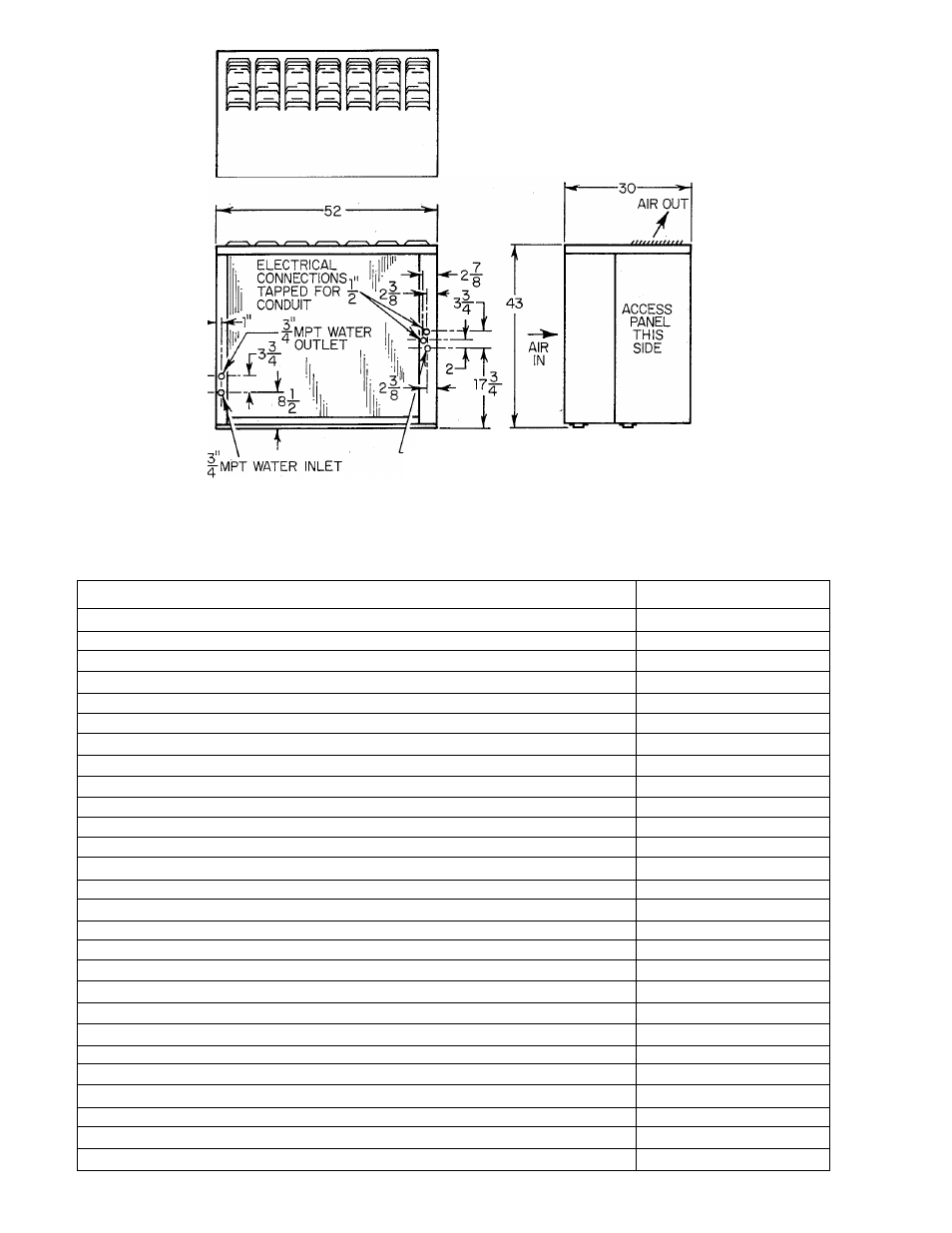

Figure 2 - Unit Dimensional Drawing
-GAS CONNECTION
r 1"
l^HOLE-^PIPE
3
!
RATINGS, CAPACITIES and COMPONENT INFORMATION
Gas Input
BTUH
112,000
Power Supply (Voltage - Frequency - Phase)
230-60-1
Electrical Input
KW
1.45
Condenser Air Flow
CFM
4,200
Refrigerant
Type
R-717
Amount
Lbs
1 1.0
Total Solution
Lbs
30
Factory Test Pressure (Refrigerant Cycle)
PSIG
450
Relief Valve Set (Refrigerant Cycle)
PSIG
450
Operating Chiller Water Volume
Gal.
3.8
Operating Chiller Water Level Above Base
Inches
9-5/8
Internal Chilled Water Pressure Loss
Ft Water
2.5
Pressure in Chilled Water Tank
PSIG
*0
Nominal Chilled Water Flow Rate
GPM
10
Water-Solution Pump Motor
HP & Service Factor
1/2-1.6
Speed
RPM
3450
Frame
48
Pulley Pitch Dia & Bore
Inches
3.09-0.50
Water Pump Pulley Pitch Dia & Bore
Inches
2.74-0.628
Solution Pump Pulley Pitch Dia & Bore
Inches
7.03-0.626
Belt Length & Width
Inches
36.5x5/16
Fan Motor
HP
1/3
Speed
RPM
825
Frame
48
Fan Diameter
Inches
26
Unit Weight
Lbs
740
* Atmospheric
-
