FIELD HIGH VOLTAGE WIRING-

FIELD LOW VOLTAGE WIRING-

*Cooling

relay

not

furnished.

Use

Bryant

P/N

52643C02

and

con­

nect as shown.

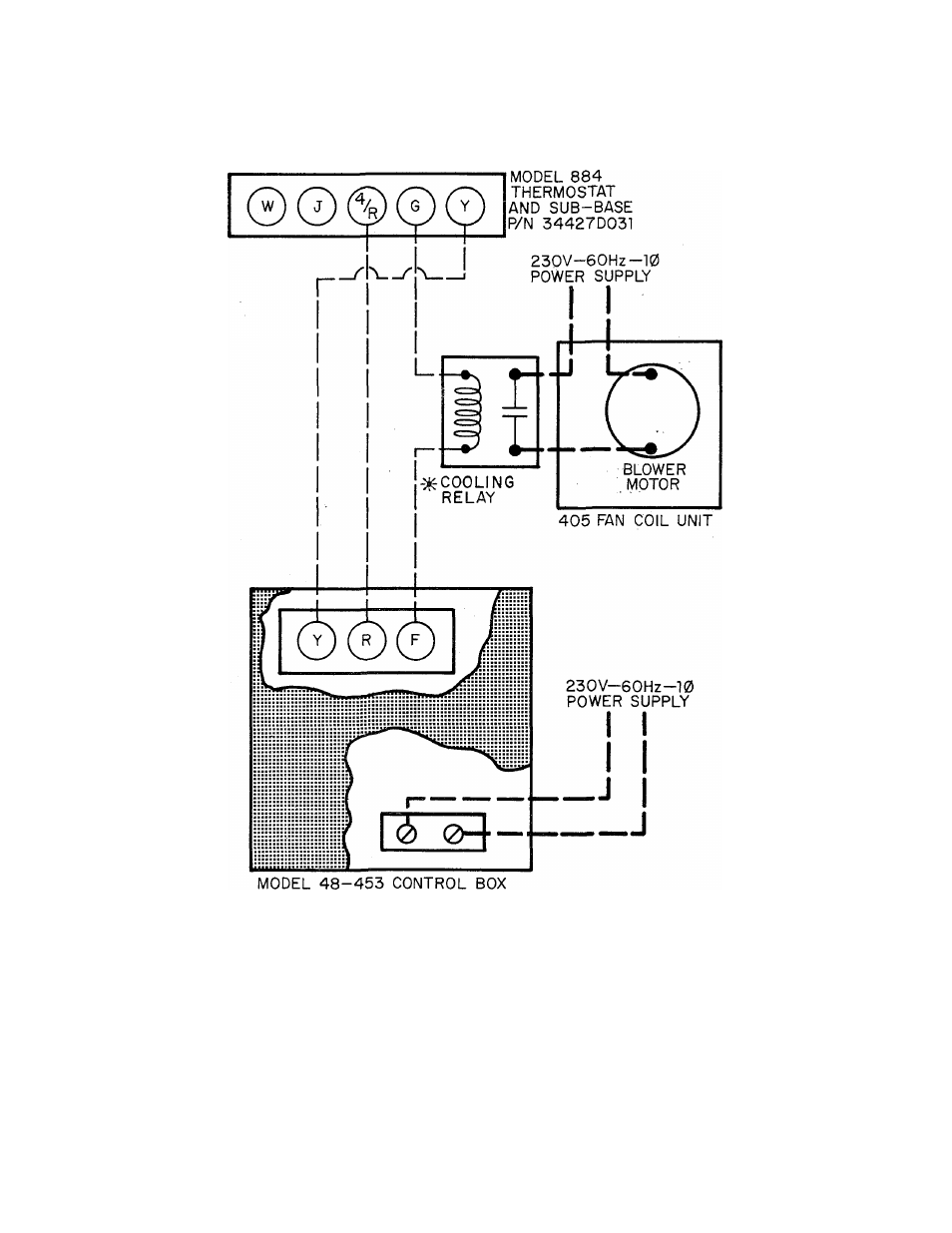

Figure 12 - Connecting Modei 48-453 Chiiier to

Modei 48-405 Fan Coii Unit

12

-
