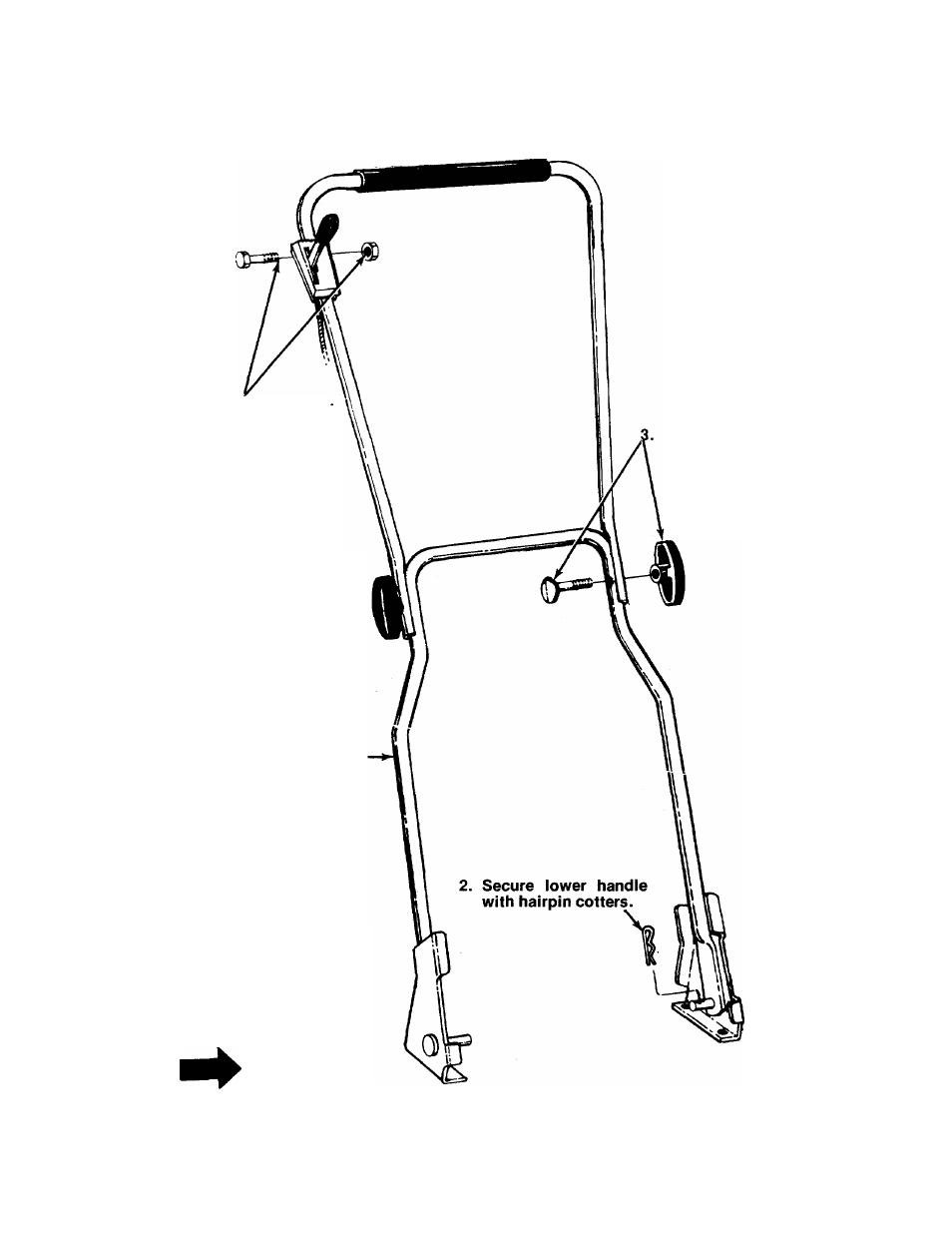

HANDLE ASSEMBLY INSTRUCTIONS

4. Fasten throttle control in posi­

tion on right hand side of upper
handie with hex boit and iock-
nut provided.

6.

Secure throttle control wire to

upper handle with cable tie. Cut off

excess cable tie.

1. Place lower handle in handie mount

brackets.

5. Check ALL nuts and boits for correct

tightness.

Place upper handle in posi­

tion so that the hole in
handle is iocated on the

right hand side and secure
with curved head bolts and
hand knobs provided.

NOTE

It may be necessary to spread the ends of the
lower handle outward slightly to assure a snug fit

against the bracket mounting area.
