Installation
ATTENTION: Having unpacked the
machine, you must first remove the
transit bars. Detailed instructions for this
operation shouid be contained on the
machine in the form of a separate instruc­

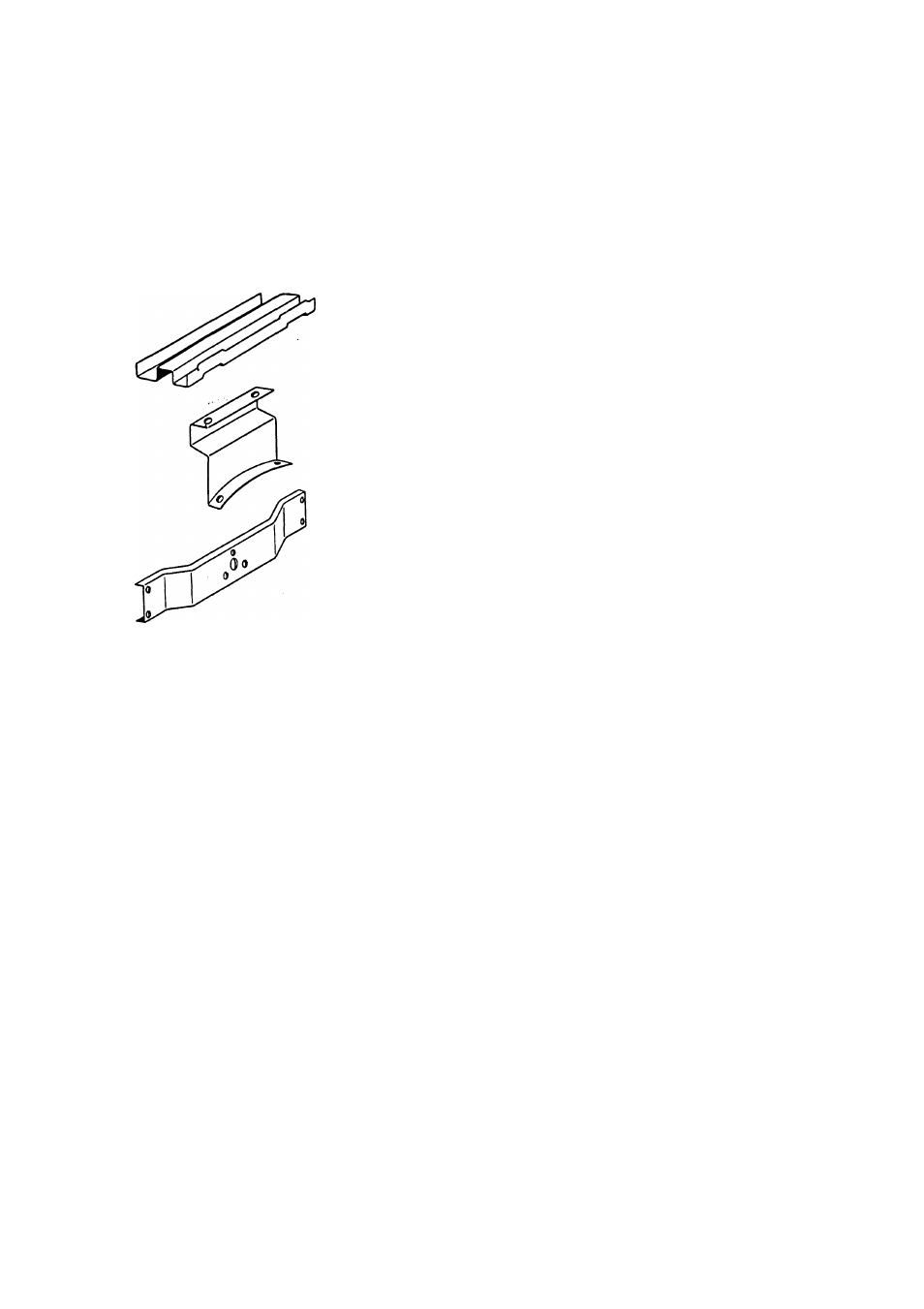

tion leafiet. Unscrew the worktop and rear
plate and remove 3 parts, 2 bars and
1 bracket (see illustration).
Please keep these transit bars, in case
you have to move the appliance for any
distance, e.g. moving house.
You can now position the machine into
place, as required.
Dimensions: Height 85 cm
(without worktop 82 cm)
Width 59.5 cm
Depth 60 cm
Weight: 100 kg approx.
Your machine features a three-point
support system so that no adjustment of
the feet shouid be necessary. However,
should levelling become necessary — e.g.
when incorporating the machine into a
fitted kitchen system, then adjustable
feet are available as an optional extra.
Part Number E 605 899 821.
Electrical connection
Voltage: 220 V AC only (UK versions 240 V)
Connected load 3.03 kW which may be
changed over to 2.08 kW
A
Fuse protection fp^ 03 kW = 16 A,
for 2.08 kW = 10 >-..^JK version please fit
a 13 amp fuse or 15 amp plug).
WARNING: This appliance must be
earthed.
This appliance complies with the require­
ments laid out in the EEC Directive
76/889.
Important
The wires in the mains lead are coloured
in accordance with the following code:
1. green and yeilow = earth
2. biue = neutral
3. brown = live
Fit the mains lead with a 3 pin 13 or 15
amp plug.
As the coiours of the wires in the ,ns
lead of the appliance may not correp'^ind
with the coloured marking identifyii ne
terminais in your plug, please proceed as
follows:
1. The wire which is coioured green and
yellow must be connected to the earth ter­
minal in your plug, which is marked with
the ietter ’E’ or by the earth symboi or
coloured green yellow, or green and
yellow.
2. The wire which is coioured brown must
be connected to the live terminai which is
marked with the letter ’L’ or coloured red.
3. The wire which is coloured blue must
be connected to the neutral terminal
which is marked with the letter ’N’ or
coloured black.
When \yjring the plug ensure tt. all
strands of .wire are securely retained in
each terminal. Do not forget to tightp" the
mains lead clamp on the plug. If y^ in­
stallation is fitted with 2 pin socket out­
lets, or if you are in doubt, please c ult
a qualified electrician.
Water supply
Your washing machine is fitted with a
high quality pressure hose Va inch bore
with a y* inch BSP screw connector for
connection to a water tap with male
