1. CoH

2. Flue connection
3. Cabinet
4. Heat exchanger

5. Gas valves & controls

6. Gas burner & manifold
7. Blower

8. Electronic air cleaner

With properly designed systems, add-on equipment and

components will increase the degree of comfort produced
for the homeowner.

Coil

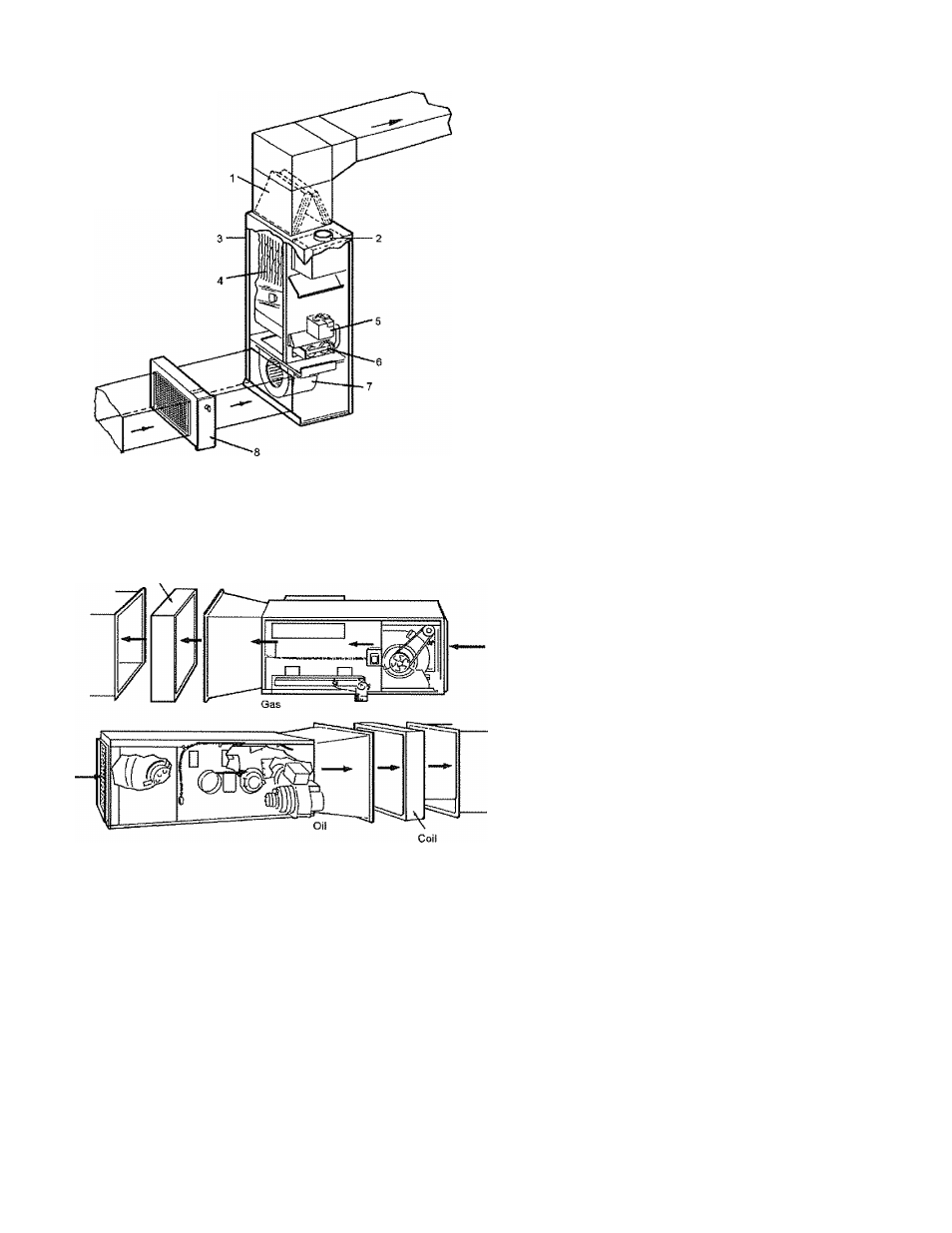

Illustrated here are typical gas-fired and oil-burning horizontal furnaces.
