Getting Started
2.2.4. Scrap Tray Assembly and Overflow Chute Installation
The scrap tray assembly and overflow chute, which came packaged inside the
machine, can easily be installed by executing the following steps:

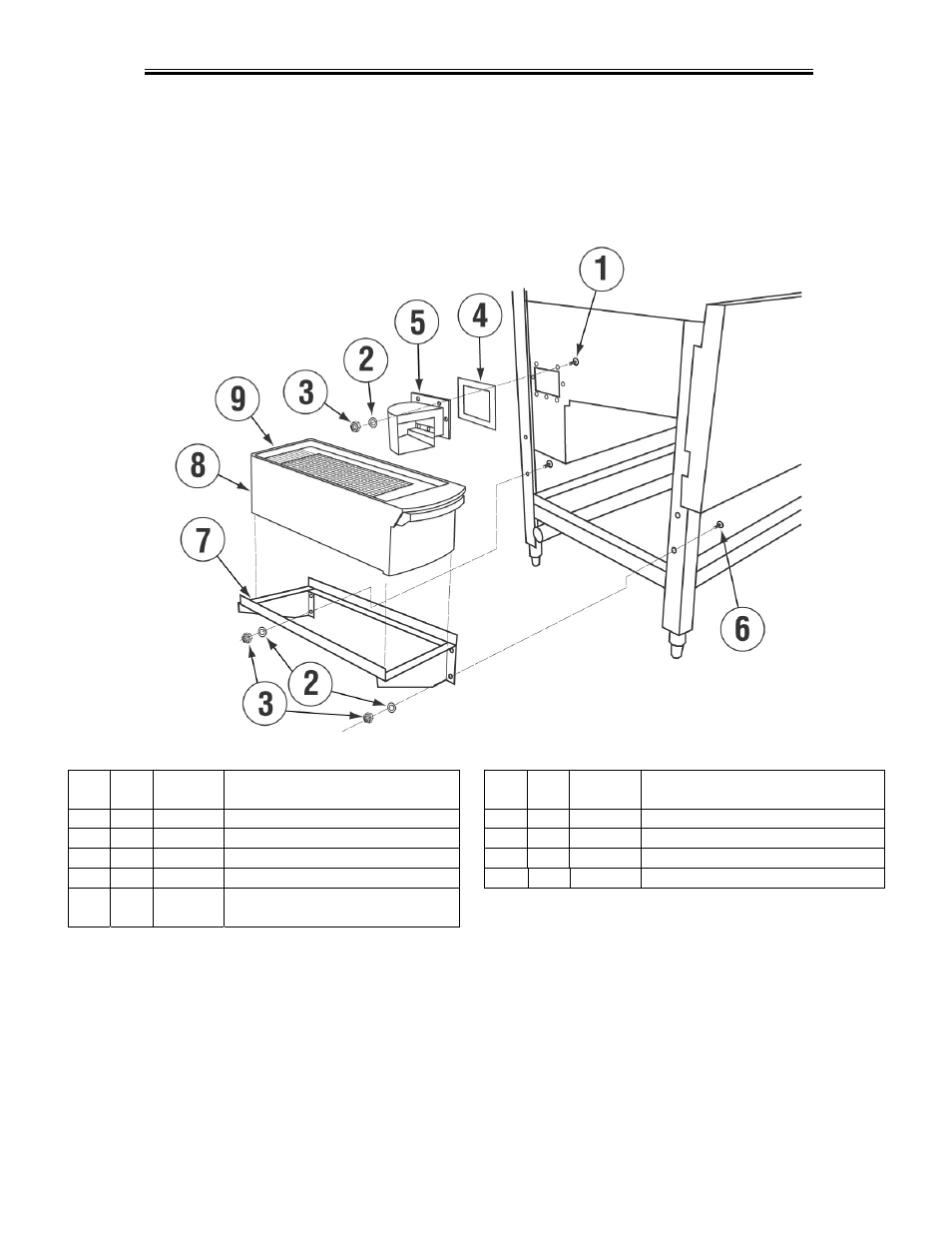

Figure 2.2.4 below
illustrates the assembly as it would appear for a Left-to-Right machine – a Right-to-
Left machine would simply be the mirror image.
Caution: For proper spacing, the
SS flat washer (item 2) must not be
located between the head of the
trusshead bolt and the inside of the
machine.
Figure 2.2.4
ITEM
NO.
NO.
REQ’D
P/N DESCRIPTION
ITEM
NO.
NO.
REQ’D
P/N DESCRIPTION
1 7 00905.00 ¼-20 X ½” Trusshead Bolt 6 4 00906.00 ¼-20 X ½” Hex Head Bolt
2 11 00924.00 ¼” SS Flat Washer 7 1 17579.00 Scrap Trap Holder
3 11 00912.00 ¼-20 Nylon Lock Nut 8 1 01579.10 Scrap Trap Body Molded
4 1 13511.26 CMA-66P Overflow Gasket 9 1 01579.20 Scrap Trap Drawer Molded
5 1 13511.06
13511.16
CMA-66P Overflow Chute (L-R)
CMA-66P Overflow Chute (R-L)
1. Remove the items from their packing and verify that all the pieces are present.
2. Attach the overflow chute with the five ¼-20 X ½” trusshead bolts, ¼” SS Flat Washers, and
¼-20 Nylon Lock Nuts provided.
3. Secure the scrap trap holder to the dishmachine using the four ¼-20 X ½” Hex Head Bolts,
¼” SS Flat Washers, and ¼-20 Nylon Lock Nuts provided.
4. Set the scrap trap body—with the scrap trap drawer inserted—into position on the scrap trap
holder.
5. Attach the drain as specified in section 2.2.2 Plumbing .
MODEL CMA-66 Installation & Operation Manual Rev. 1.06 01/11/05 Page 7
