Vermont Casting P - Manual (Page 11)

20007967 11
1 2
3
4
7
6
8
9
7967
OD24SHK
PARTS
5/04
10
11
14
15
12
13
16
17
1a
1b
1c
1d
1e
5
CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products
at any time, without notice.
7967

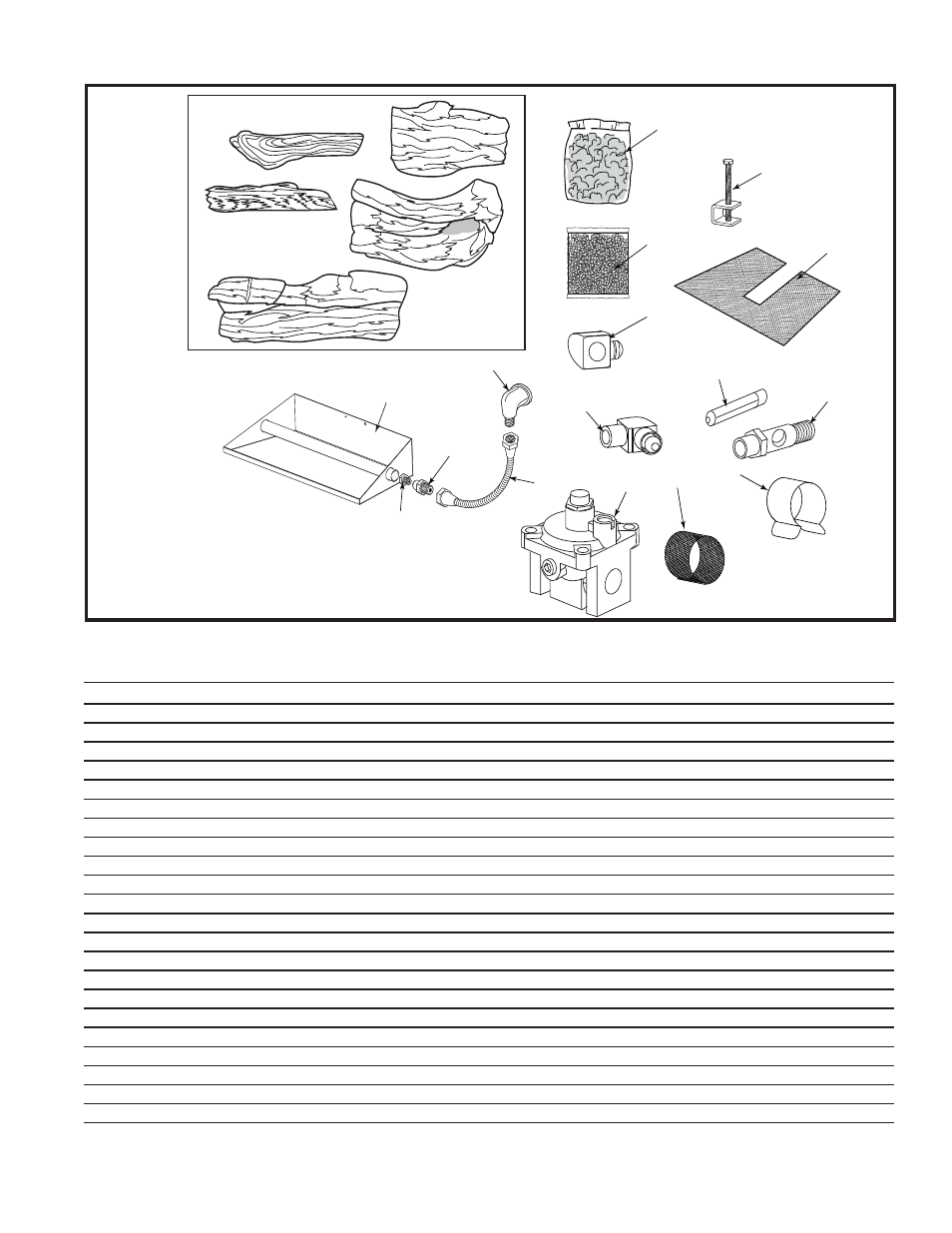

OD24SHK Vented Gas Logs
Ref. Description OD24SHK
1. Complete Log Set 20007970
1a. Top Log #3 NNS3
1b. Top Log (2) NNS4
1c. Rear Log 20007972
1d. Left Front Log 20007974
1e. Right Front Log 20007973
2. Bag of Glowing Embers 4310001
3. Bag of Lava Rock 3310046
4. Damper Stop 20002575
5. Pan Assembly 20007959
6. Orifice - Natural Gas 20000961
7. Burner Inlet Fitting 20000958
8. Flexible Gas Connector 3304176
9. Gas Supply Fitting - Elbow 3304145
10. 3/8” Brass Female NPT to Flare - Propane 3304146
11. Ember Screen 20007961
12. 3/8” Brass Elbow, NPT to Flare - Propane 3304006
13. Regulator - Propane 3304191
14. Orifice - Propane 20001280
15. Orifice Holder - Propane 20000012
16. Air Mixer Shutter 20000013
17. Air Shutter Screen 20004686
