Chapter 2 Installation
Installing the Switch in a Rack
2-18
Catalyst 2900 Series XL Hardware Installation Guide
78-6461-03

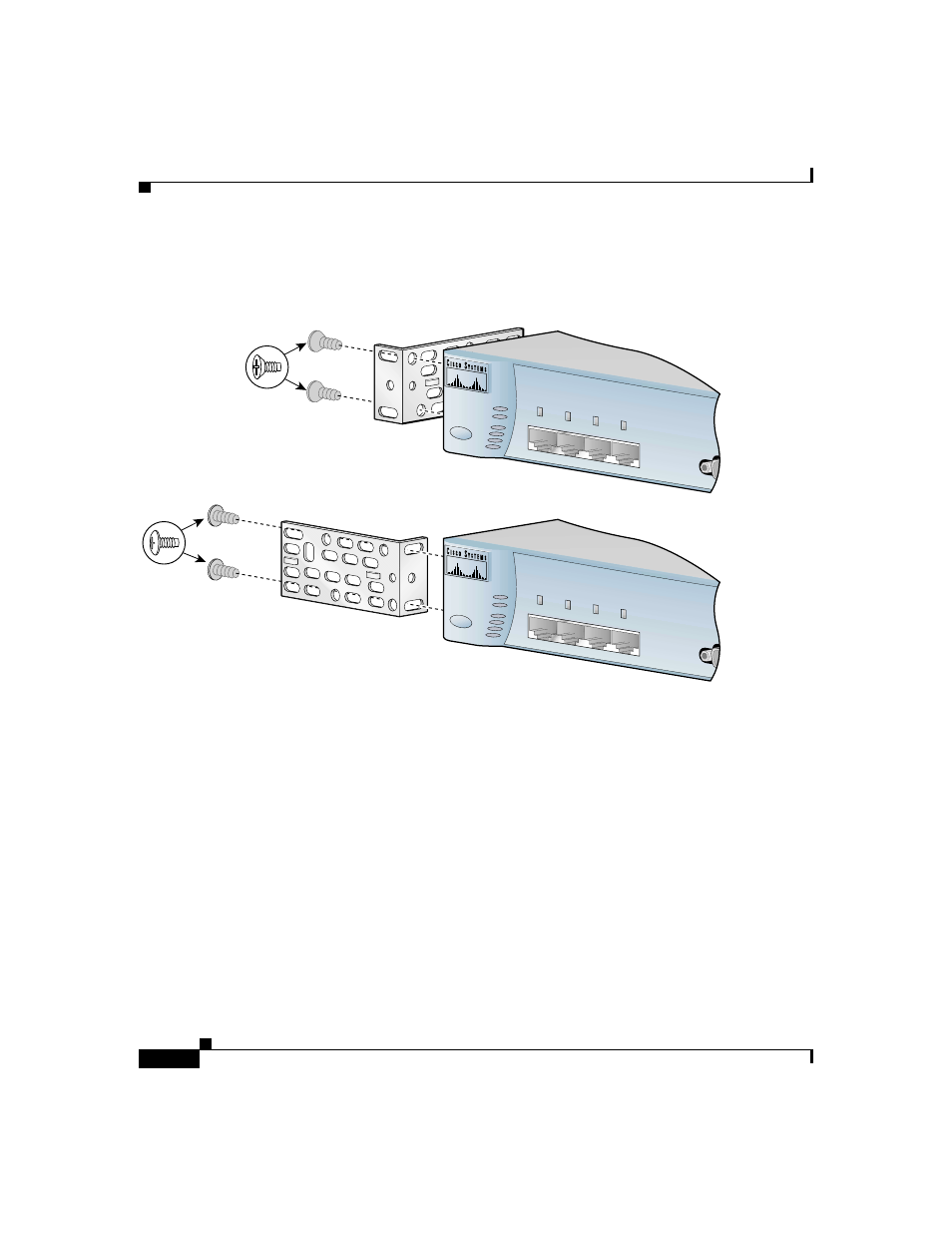

Figure 2-9
Attaching Brackets on Catalyst 2912 LRE XL and 2924 LRE XL Switches (Front-Panel
Forward)
RESET
INPUT PWR
OUTPUT PWR
TEMP
FAN
9X
10X
11X
12X
RESET
INPUT PWR
OUTPUT PWR
TEMP
FAN
9X
10X
11X
12X
54728
19" configuration
23" and 24" configuration
Phillips
truss-head
screws
Phillips
flat-head
screws
