Hunter X-CORE - Manual (Page 12)

10
PSR Series
Pump Start Relay
15 ft Minimum (4.5 m)
To Pump
ST AR T TIMES
SEASONAL ADJUSTMENT WATER DAYS
ALL MANUAL-ALL STATIONS START TIMES
SYSTEM OFF CURRENT TIME/DAY
RUN TIMES
ACTIVE
SENSOR BYPASS
RUN
NoTE: Complete this section only if you have a
pump start relay installed. A pump start relay is
a device that uses a signal from the controller to
actuate a separate electrical circuit to energize a
pump to provide water to your system.

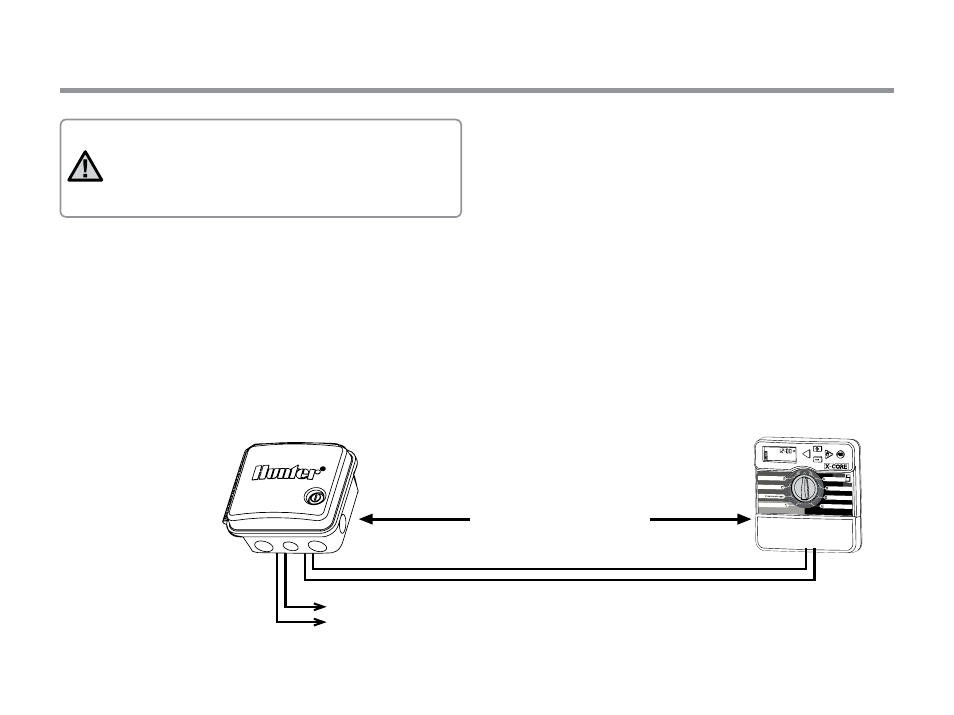

The controller should be mounted at least a 15 ft (4.5 m) away from
both the pump start relay and pump to minimize any potential
electrical interference.
1. Route a pair of wires from the pump relay into the controller.
2. Connect a common wire to the C (Common) terminal inside the
controller and connect the remaining wire from the pump start
relay to the P (Pump) terminal.
Relay holding current draw must not exceed 0.3 A. Do not connect
the controller directly to the pump or damage to the controller will
result.
CoNNECTING a pUmp sTarT rElay
