Page 18

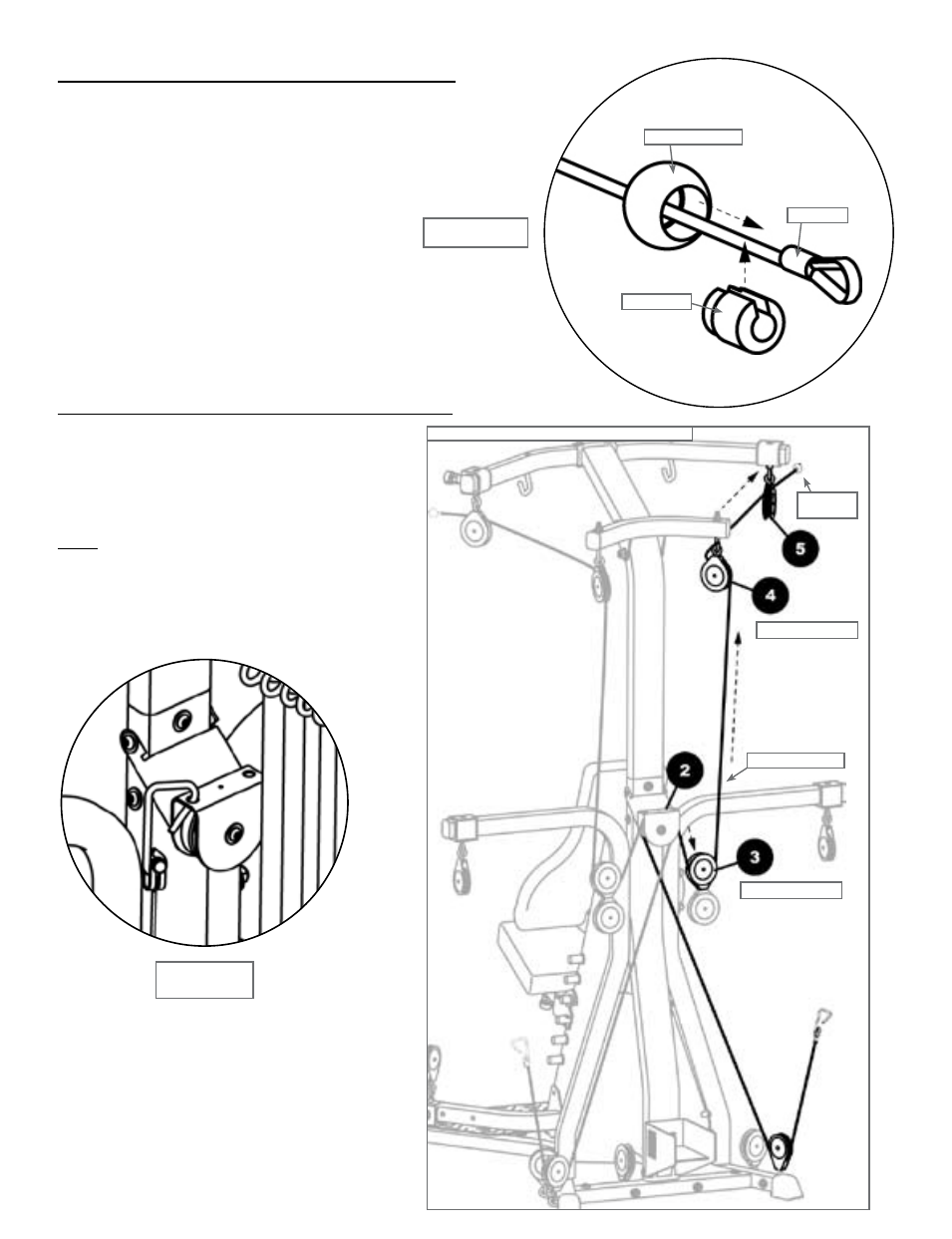

Figure 19b - Cable End

Stop Ball with Core

Ferrule

Cable End Stop Ball

Cable Core

Figure 19d - Rod

Hooks Storage on Lat

Pulley Housing

Step 19c - Cable & Pulley Routing

Connect Rod Cables through Left (3) Floating

and Lat Tower Pulleys

Repeat with Left Rod Cables and (3) & (8)

Floating Pulleys as shown in Figure 19c.
NOTE: Once the Cable End Stop Balls are attached,

hook each Rod Hook onto the Lat Pulley Housing as

shown in Figure 19d.

Figure 19c - Lat Tower Pulleys

Step 19b - Cable & Pulley Routing

Connect Cable End Stop Ball with Core

Floating Pulley

Lat Tower Pulleys

Cable End

Stop Ball

Left Rod Cable
