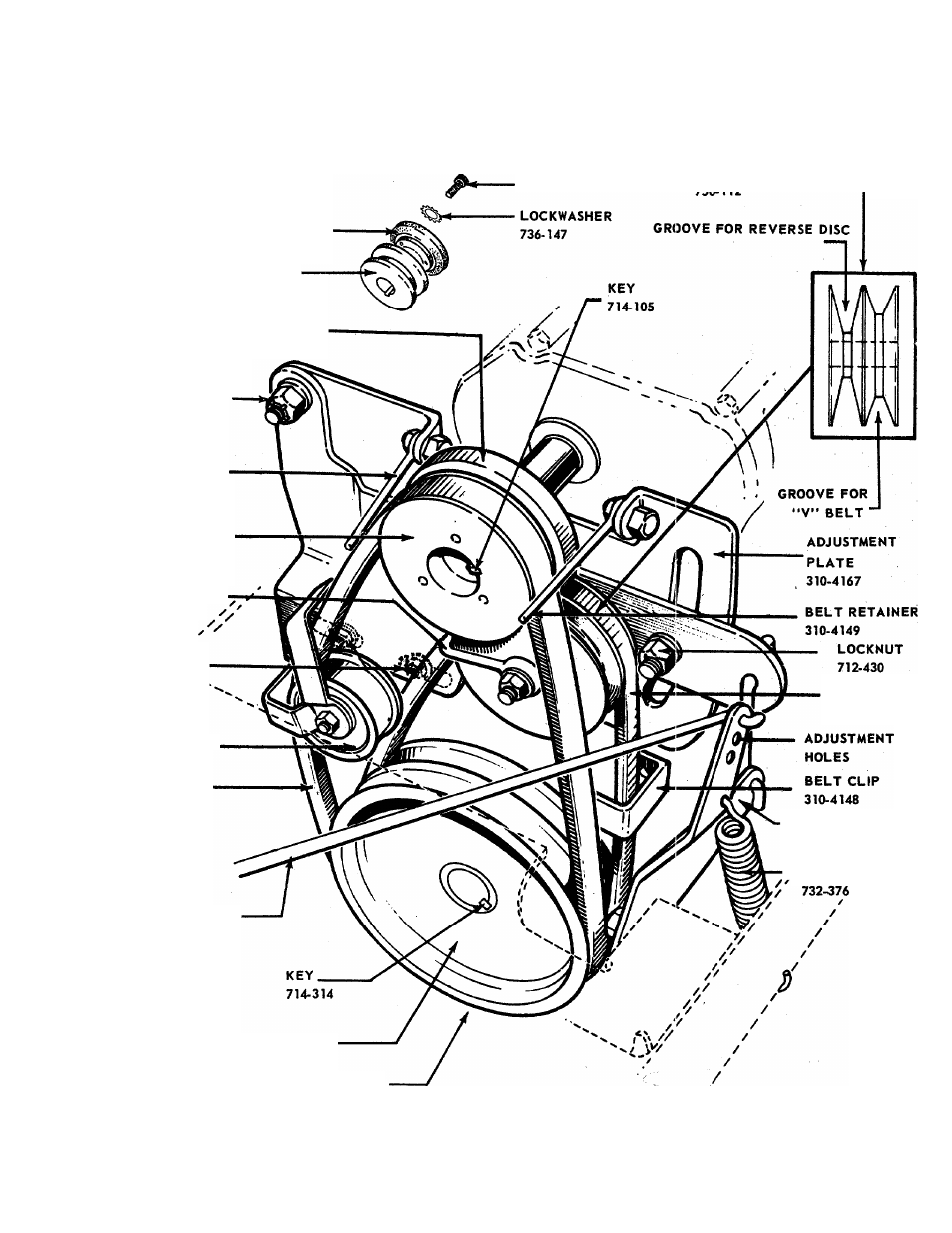

TILLER DRIVE MECHANISM
ALL EM CAP SCREW
710-185
TWO STAGE REVERSE PULLEY
7CJL110
REVERSE DRIVE WHEEL
717-109
PULLEY - ENGINE
756-104
REVERSE DRIVE WHEEL
717-109
LOCKNUT
712-430
BELT RETAINER
310-4149
PULLEY-ENGINE
756-104
BELT RETAINER
310-4151
ADJUSTMENT
712-267
736-119
710-118
IDLER PULLEY.
756-370
BELT 1/2 X 32
754-104
CONTROL ROD
711-213
BELT 1/2 X 27
754-103
CONTROL LEVER
A 310-4158
//
»/
tension
spring
TWO STAGE PULLEY
756-108
LOWER BELT GUARD
321-4162
