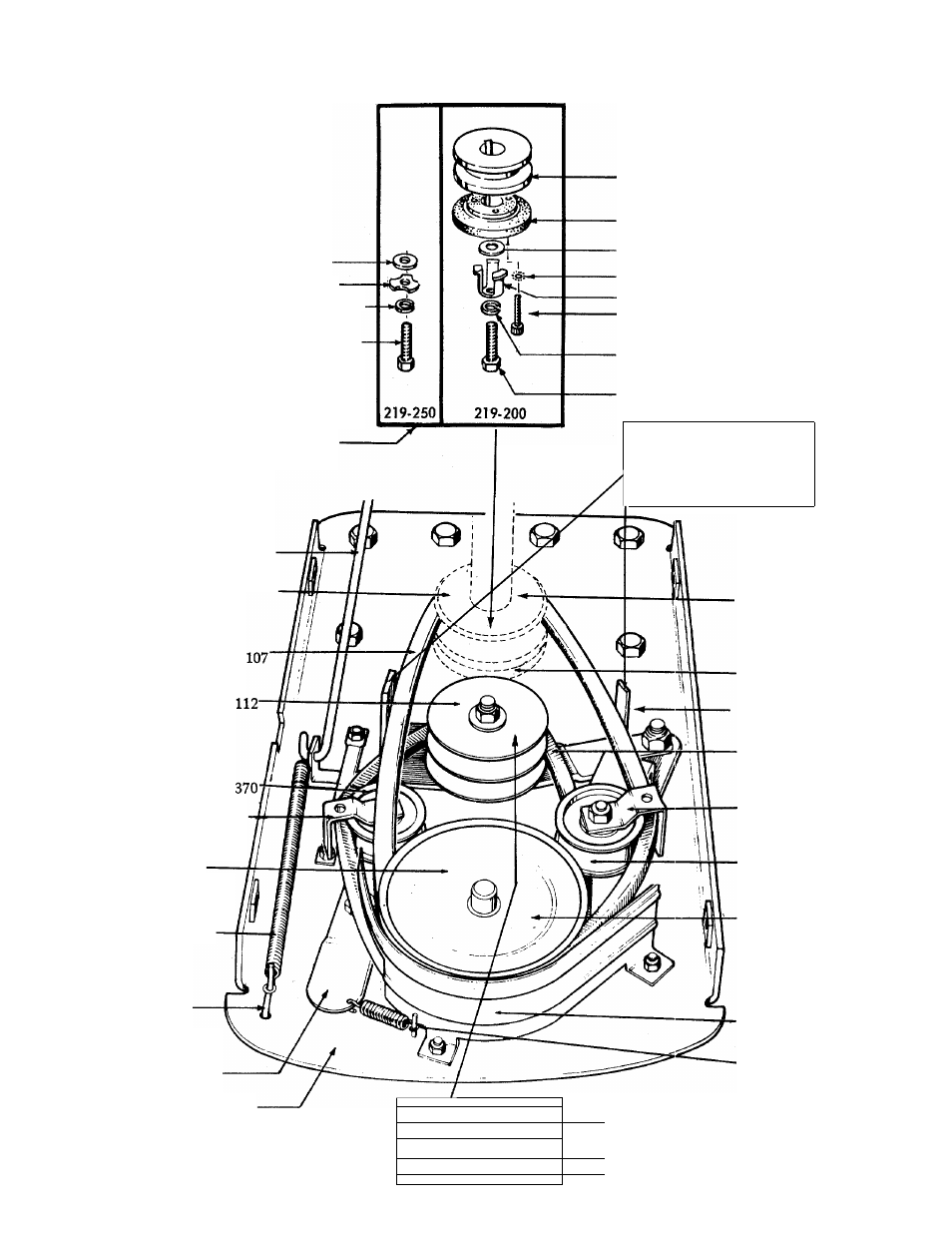

TILLER DRIVE MECHANISM
Washer 736-117
Spacer 310-4260-
Lockwasher 736-169-
Cap Screw 710-152-
Engine Pulley and
Rev. Dr. Wheel Assembly
Control Rod 310-
Pulley-Engine
4198
756-105
Belt 1/2 X 30 754-
Rev. Pulley 756
Idler Pulley 756
Belt Clip 310-7353
Two Stage
Pulley 756-108
Spring 732-112
Anchor Pin
310-7439
Rev. Idler Brkt.
310-4200
Mtg. Plate 321-4107
Pulley-Engine 756-105
Rev. Dr. Wheel 717-120
Washer 736-117
Lockwasher 736-147
Spacer 310-4259
■ Allen Cap Screw 710-185
Lockwasher 736-169
Cap Screw 710-152
CAUTION:
Be sure
belt is
inside belt
pushers.
Set Screw for Pulley
710-765
Rev. Dr. Wheel 717-120
Belt Pusher 310-4204
Belt 1/2 X 25 754-106
Belt Clip 310-7353
Idler Pulley 756-370
Set Screw for Pulley
710-765
Belt Guard 312-4197
Spring 732-250
1 ‘ ---------- ^
---- ‘■"i..r"‘~—
' 1 * ' —
.. !"!
Groove for Rev. Dr. Wheel
Groove for “V” Belt
Two Stage Rev. Pulley 756-112
FORM NO. 770-1882G
