Models 664D & E666M

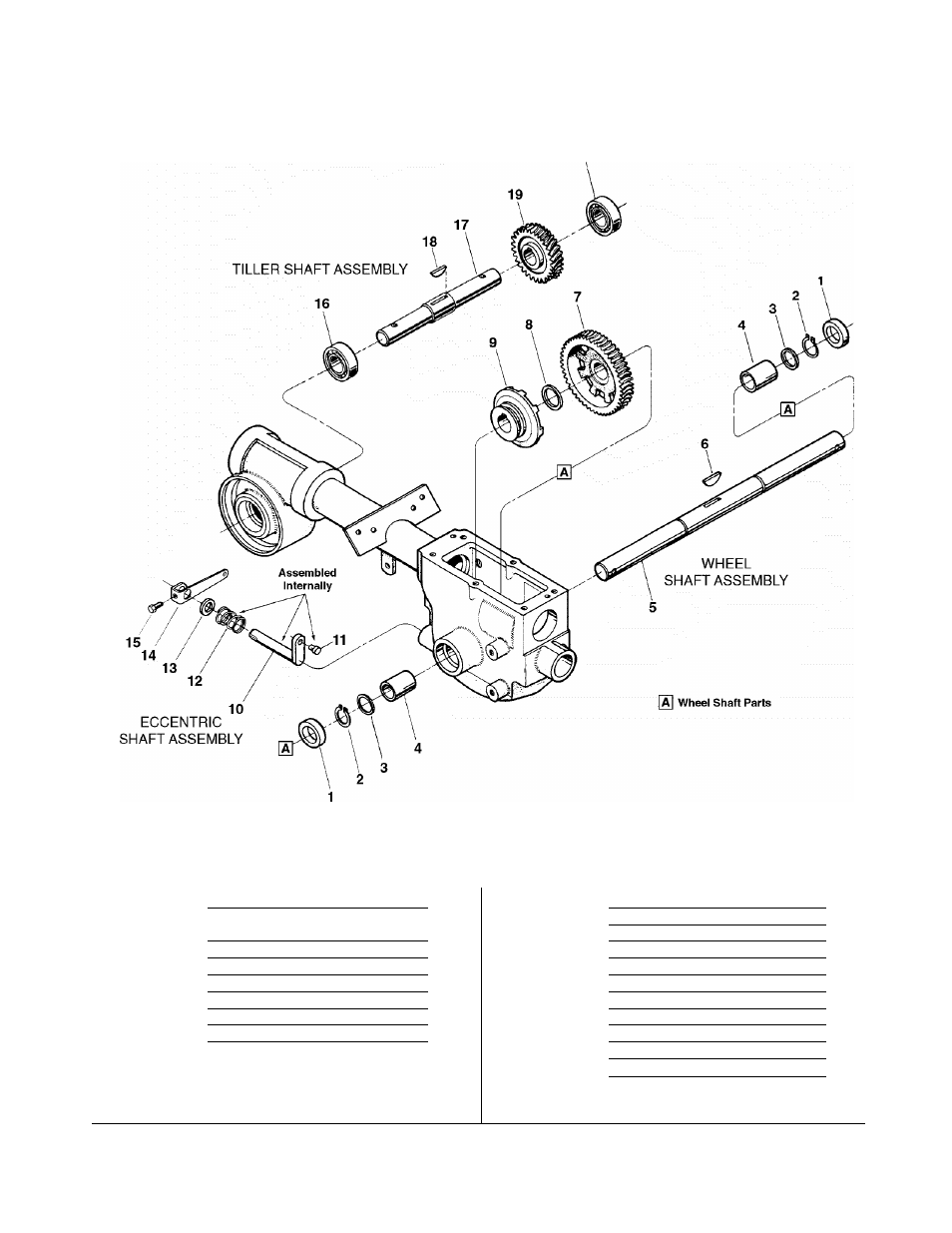

WHEEL SHAFT, ECCENTRIC SHAFT and TILLER SHAFT ASSEMBLIES
16
REF.
No. PART
No. DESCRIPTION QTY.
1 721-04031 Oil Seal.............................................. 2 9 GW-20712 Wheel Drive Clutch (cast-iron)......... 1
2 1909950 Retaining Ring (heavy-duty, external) 2 10 611-04002 Eccentric Shaft................................. 1
3 GW-1166-1 Shim, 1-1/64 I.D., .062" thick............ A/R 11 GW-1442 Pin, Eccentric Shaft.......................... 1
-
GW-1166-2 Shim, as above, but .030" thick......... A/R 12 GW-9055 Spring............................................... 1
-
GW-1166-3 Shim, as above, but .015" thick......... A/R 13 721-04034 Oil Seal............................................. 1
-
GW-1166-4 Shim, as above, but .010" thick......... A/R 14 GW-20700 Eccentric Shaft Lever....................... 1
4 GW-1086 Bushing............................................. 2 15 710-3013 Hex Hd. Screw, 1/4-20x1/2*............. 1
5 711-04091 Wheel Shaft (Incl. Ref. 6).................. 1 16 741-3037 Ball Bearing...................................... 2
6 GW-9373 Hi-Pro Key, 1/4x1-5/16...................... 1 17 711-04080 Tiller Shaft (Incl. Ref. 18).................. 1
7 GW-20914 Wheel Drive Worm Gear (cast-iron).. 1 18 GW-1104 Woodruff Key, 1/4x1-1/4................... 1
8 GW-9935 Shim (between key and gear). 19 GW-20913 Tiller Drive Worm Gear (bronze)...... 1
1.016I.D.X1.468 0.D.X.062
Thick.............................................. 1
REF.
No. PART
No. DESCRIPTION QTY.
* Specify GRADE 5 if ordering part locally.
A/R - As Required
