REPAIR PARTS

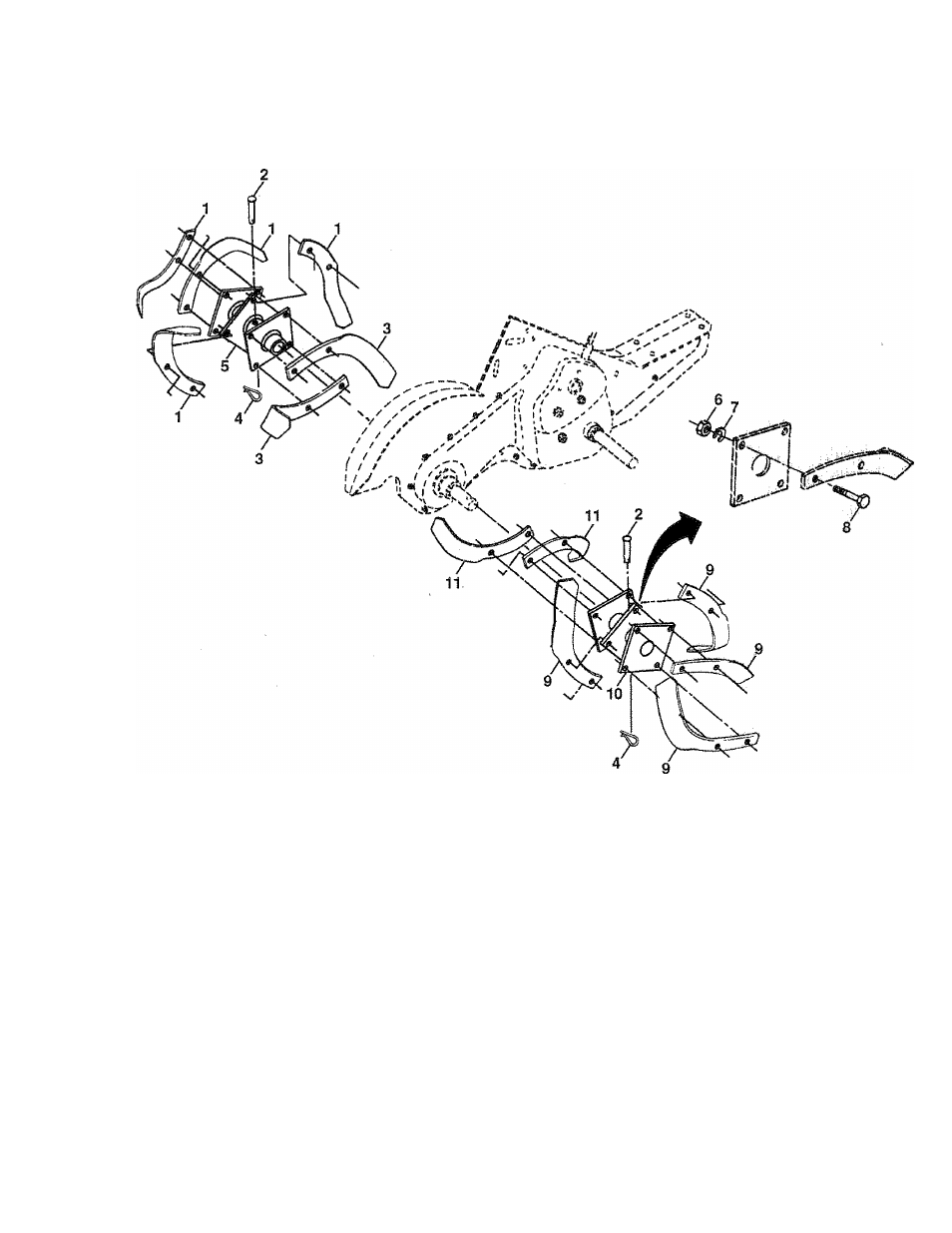

TINE ASSEMBLY
TILLER - - MODEL NUMBER HDR500H
KEY
PART
KEY PART
NO.
NO.
DESCRIPTION
NO. NO.
DESCRIPtlON
1
4459J
Tine, Outer, L.H.
8 74610616
Bolt, HOx 3/8-24 X 1
2
132673
Clevis Pin
9 4460J
Tine, Outer, R.H.
3
6554J
Tine, Inner, LH.
10 132728
Assembly, Hub and Plate, R.H.
4
163552
Retainer, Spring
11 6555J
Tine, Inner, R,H.
5
132727
Assembly, Hub and Plate, LH.
6
73610600
Nut, Hex 3/8-24
NOTE:
A!! component dimensions qiveh iii U.S. inche;
7
10040600
Washer, Lock 3/8
1 Inch- 25.4 mm
26
