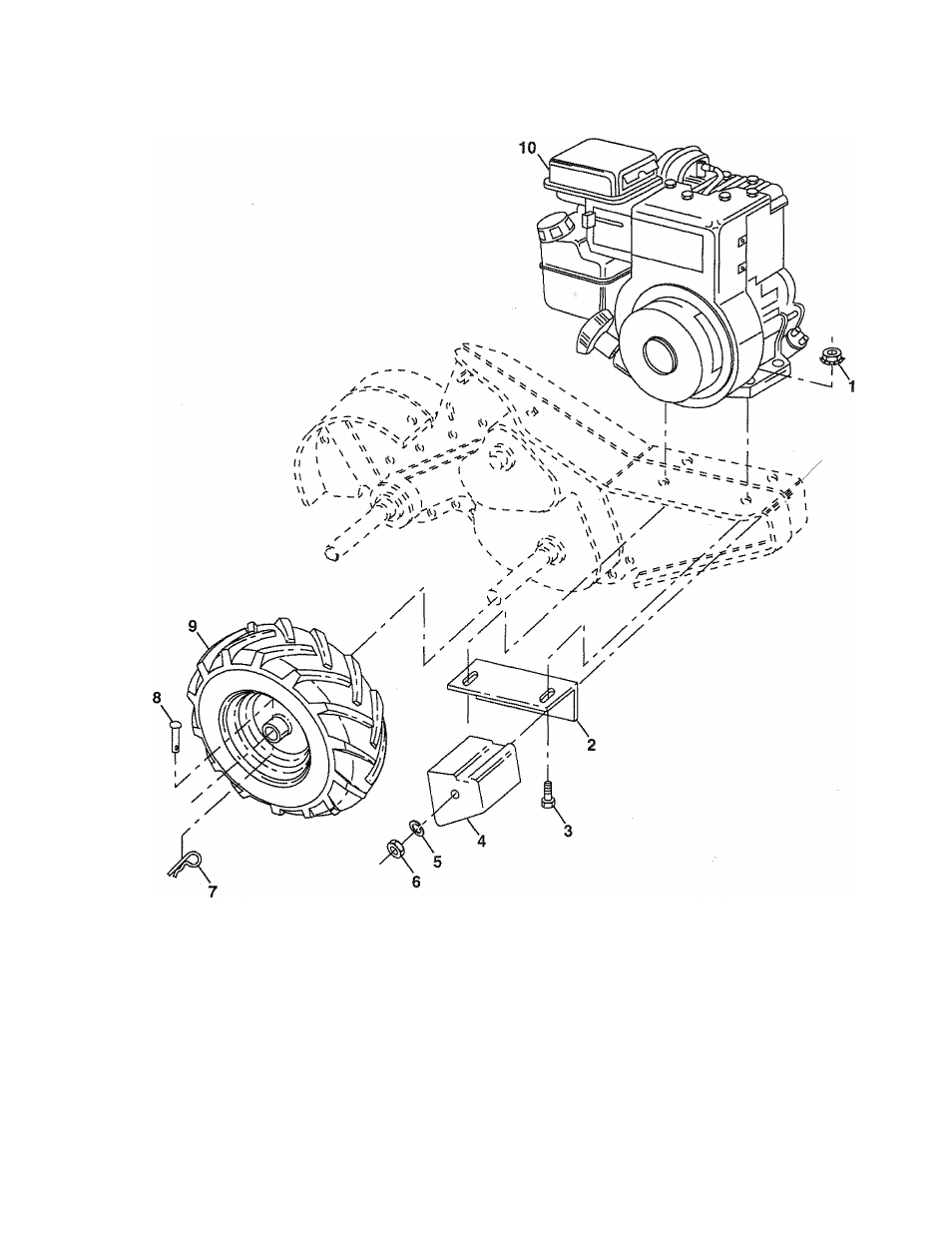

TILLER - - MODEL NUMBER HDR500H
MAINFRAME, RIGHT SIDE
REPAIR PARTS
KEY
NO.
PART
NO.
DESCRIPTION
KEY
PART
NO. NO.
DESCRIPTION
1
73510500
Nut, Keps 5/16-18
9 102190X
Tire
2
102332X
Bracket, Reinforcement
150750
Rim
3
74760524
Bolt, Hex 5/16-18
X
M/2
795R
Tire Valve
4
102173X
Counterweight, R.H.
10 ........................
Engine, Briggs Model 137202
5
10040600
Washer, Lock 3/8
Order parts from engine
6
73220600
Nut, Hex 3/8-16
manufacturer
7
4497H
Clip, Hairpin
NOTE:
All component dimensions qiven in U.SJnches.
8
126875X
Rivet, Drilled
1 inch = 25.4 mm
23
