Poulan 156332 - Manual (Page 8)

OPERATION
HOW TO USE YdUR TILLER
Know how ÍO operate all controls before adding fuel and oil
or attempting to start engine.

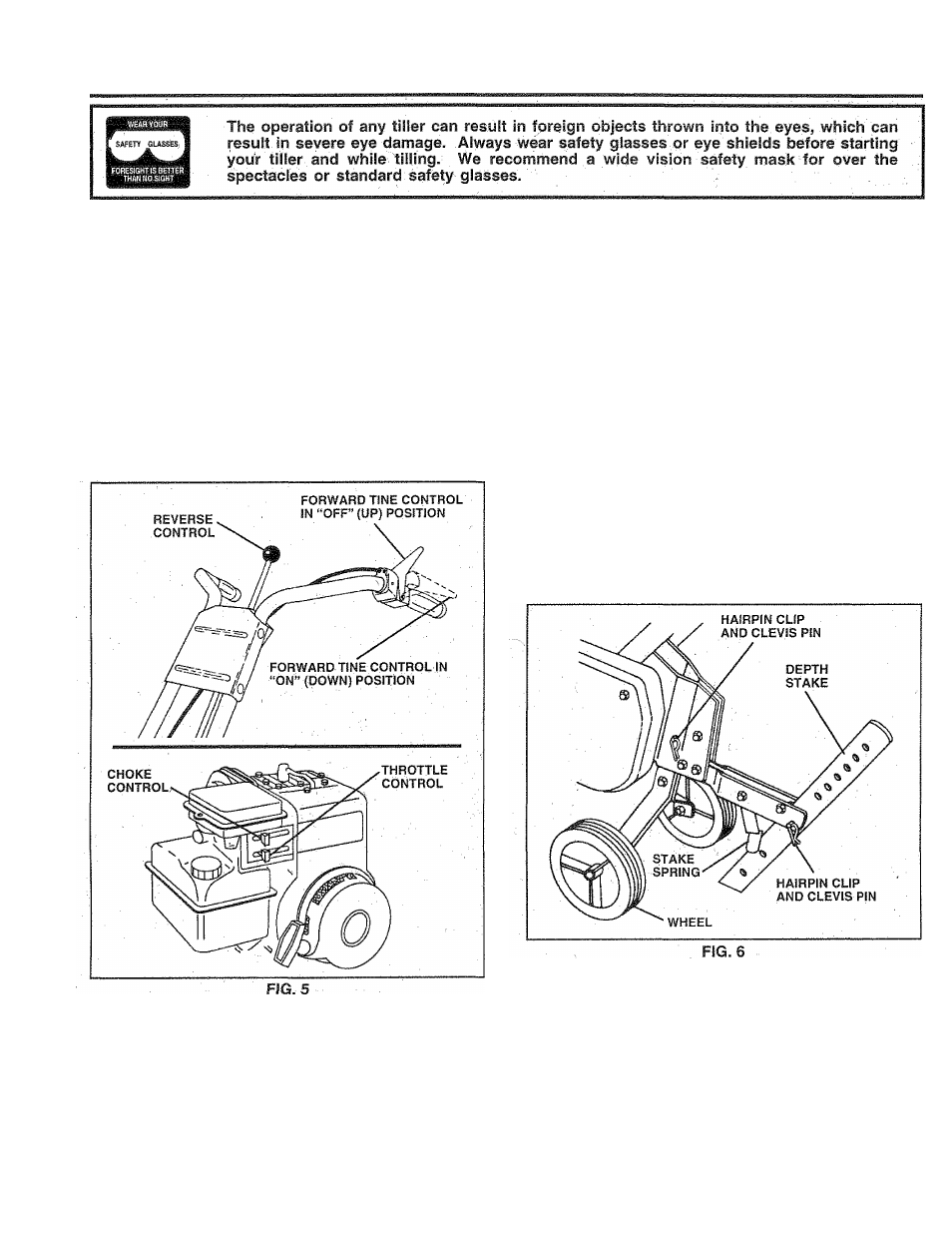

STOPPING (See Rg. 5)
TINES
“ Reléase forward tine control to stop forward move­
ment. '
® Release reverse tine control to stop reverse move­
ment.
ENGINE
• Move throttle control to “STOP” position.
* Never use choke to stop engine.
TINE,OPERATION (See Rg.,5)
FORWARD
« Squeeze forward tine control to handle. ,
REVERSE
® With forward tine control “OFF" (up) position, pull back
and hold reverse tine control.
TILLING
The speed and depth of tilling is reguiated by the position
of the depth stake and wheel height:
The depth stake should always be below the wheels for
digging. It serves as a. brake to slow the tiller's forward
motion to enable the’tines to penetrate the ground. Also,
the more the depth stake is lowered Into the ground the
deeper the tines will dig.
DEPTH STAKE (See Fig. 6)
Adjust depth stake by removing the hairpin clip and devis
pin. Change depth stake to desired position. Replace the
clevis pin and hairpin dip.
* For normal tillihg, set depth stake at the second or third
hole from the top.
WHEELS (See Fig. 6)
Adjust wheels by removing the hairpin clip and clevis pin.
Change wheel position. Replace the hairpin dip and devis
pin.
* For norma! tilling, set wheels at the second or third hole
from the top.
8
