ASSEMBLY
UNPACK CARTON
&

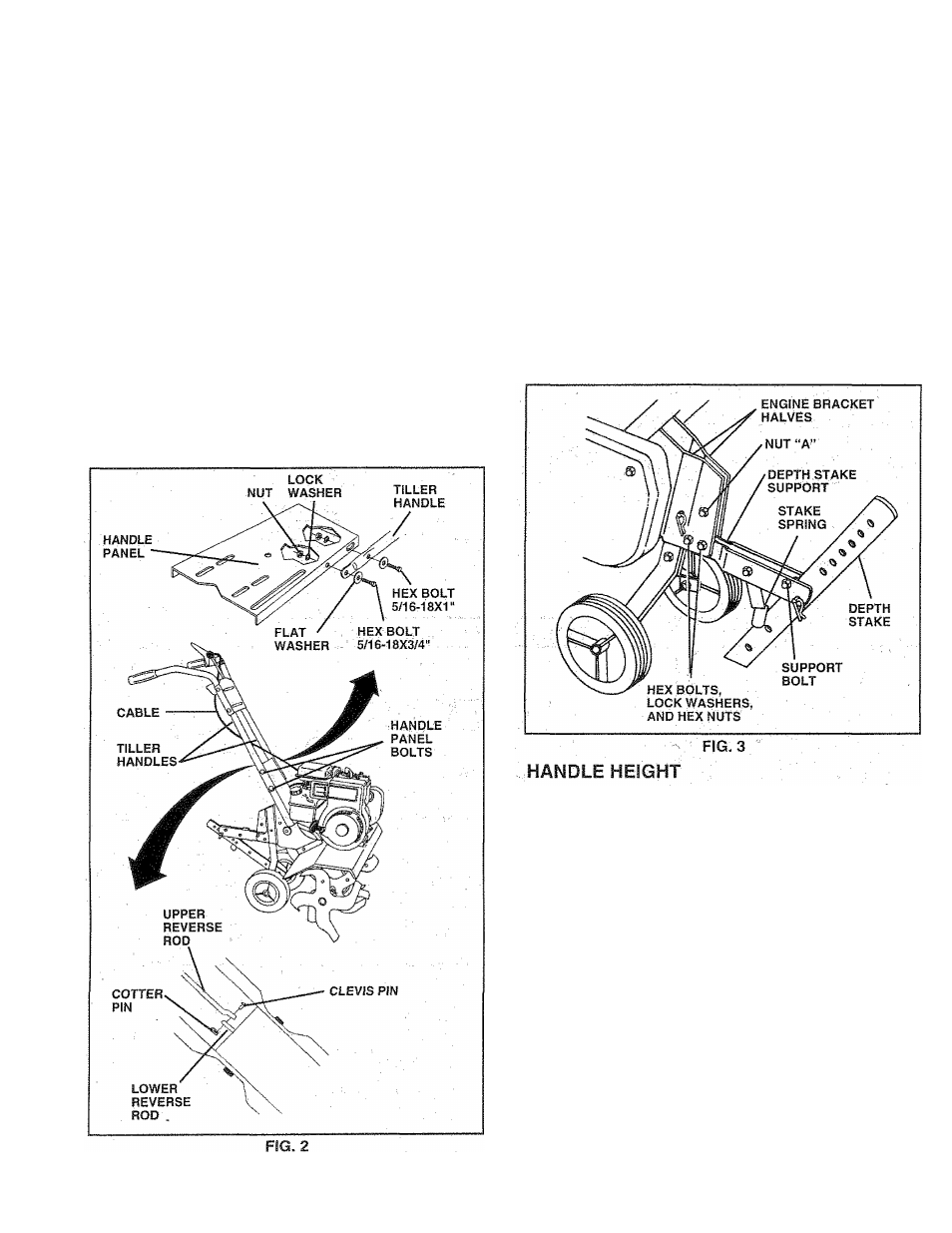

INSTALL HANDLE (See
Fig. 2)
A
CAUTIOH:
Be careful of exposed
staples when handling or disposing of
cartoning material.
lyPORTANT:
WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLE{S).
» Cut cable ties securing handles.
Slowly lift handle assembly up and align handle holes
with handle panel hole and slot
® Loosely assemble hardware as shown. Be sure the
shorter (3/4" long) hex bolt is assembled in lower hole
of handle. Repeat for opposite side. Tighten all
hardware securely.
• Cut cable ties securing tiller to skid and remove tiller
■ from skid.
INSTALL DEPTH STAKE ASS.Ey BLY
(See Fig. 3) :
. ; , •
® Insert stake support between engine bracket halves
with stake spring down,
NOTE: it may be necessary to loosen nut “A”.
» Bolt stake support to engine brackets with bolts, lock
washers and nuts. Tighten securely. Also tighten nut
“A” if it was necessary to ibosen/
® Depth stake must move freely. If it does not, loosen
support bolt,
INSTALL REVERSE BOD (See Fig. 2)
® Secure upper reverse rod to lower reverse rod using
clevis pin. Secure with cotter pin.
Handle height may be adjusted to better suit operator.
(See “HANPLE HEiGHT”;in fhe Service and Adjust
ments section of this manua!).
TILLINGWIDTH
® Tilling width may be adjusted to better handle your
tilling conditions (See “TINE ARRANGEMENT” in the
Service and Adjustments section of this manual).
TINE OPERATION
« Check tine operation before first use. (See “TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual).
