CUSTOMER RESPONSIBILITIES
MUFFLER..
Do not operate tiller without muffler. Do not tamper with
exhaust system. Damaged mufflers or spark arresters
could create afire hazard. Inspectperiodically and replace
if necessary, if your englne;is equipped with a spark
arrester screen assembly, remove every 50 hours for
cleaning and inspectior|. Replace if damaged.
SPARKPLUG
Replace spark plugs at the beginning of each tilling season
oraftereverySOhoursof use, whichevercomes first. Spark
plug type and gap setting are shown in “PRODUCT SPECI
FICATIONS” on page 3 of this manual.
TRANSMISSION ^
Your transmission is sealed and will not require lubrication
unless serviced.
CLEANING
® Clean engine, wheels,.finish, etc. of all foreign matter.
® Keep finished surfaces and wheels free of all gasoline,
oil, etc.
® Protect painted surfaces with automotive type wax.
We do not recommend using a garden hose to clean your
unit unless the muffler, air filter and carburetor are covered
to keep water out. Water in engine can result in a shortened
engine life. ■
SERVICE AND ADJUSTMENTS
A
GAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into
contact with plug.
TILLER

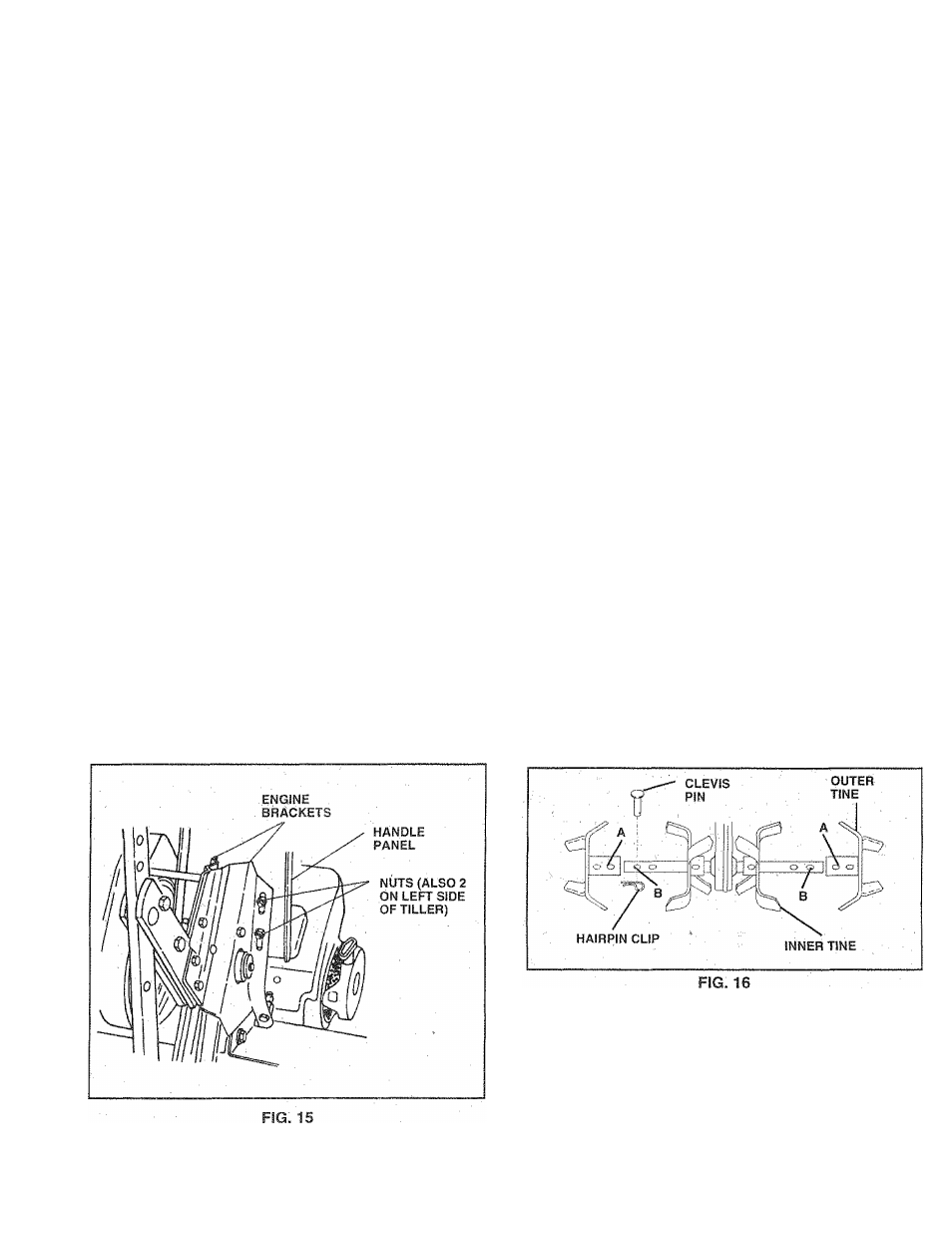

TO ADJUST HANDLE..HEIGHT (See Fig. 15)
Factory assembly has provided lowest handle height. Se
lect handle height best suited for your tilling conditions.
Handle height will be different when tiller digs into soil.
« If a higher handle height is desired, loosen the four nuts
securing handle panel to engine brackets.
® Slide handle panel to desired location.
® Tighten the four nuts securely.
TINE ARRANGEMENT
Your outer tines can be assembled in several different ways
to suit your titling or cultivating needs.
CAUTION:
Tines are sharp. Wear
gloves or other protection when han
dling tines.
NORMAL TiLUNG - 24" PATH (See Fig. 16)
® Assemble holes “A” in tine hubs to holes “B” in tine
shaft.
13
