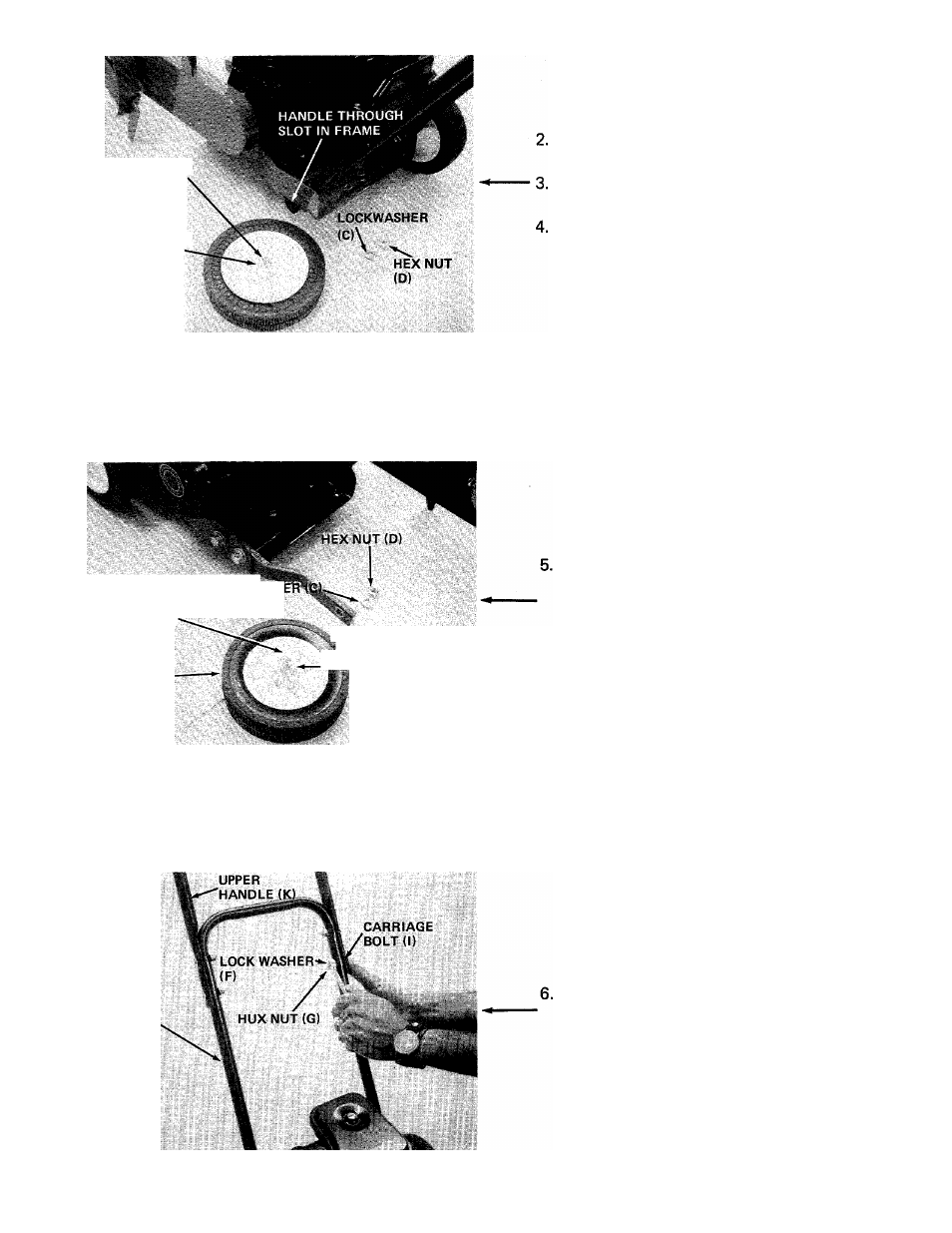

Figures, Figure 4 – MTD 242-595A User Manual
Page 5
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
SHOULDER
BOLT (A)
BELLEVILLE
WASHER (B)
Place lower handle into the slots in the rear
frame. See figure 3.
Line up holes in handle with holes in frame.
See figure 3.
Secure rear wheels (P) and lower handle (M) to
frame with shoulder bolts (A), belleville washers
(B), lock washers (C) and hex nuts (D). See
figure 3.
FIGURES.
LOCK WASH
SHOULDER
BOLT (A)
FRONT
WHEEL (O)
.BELLEVILLE;
WASHER (B)
Assemble the front wheel (O) as shown in figure
4. Place shoulder bolt (A) through wheel, then
belleville washer (B) (between wheel and frame).
Secure with lock washer (C) and hex nut (D).
See figure 4.
FIGURE 4.
LOWER
HANDLE
Assemble the upper handle (K) to lower handle.
Place the head of carriage bolts (I) to the outside
of handle. Secure with lock washers (F) and
and hex nuts (G). See figure 5.
FIGURE 5.
