6500XL Extended Life Generator

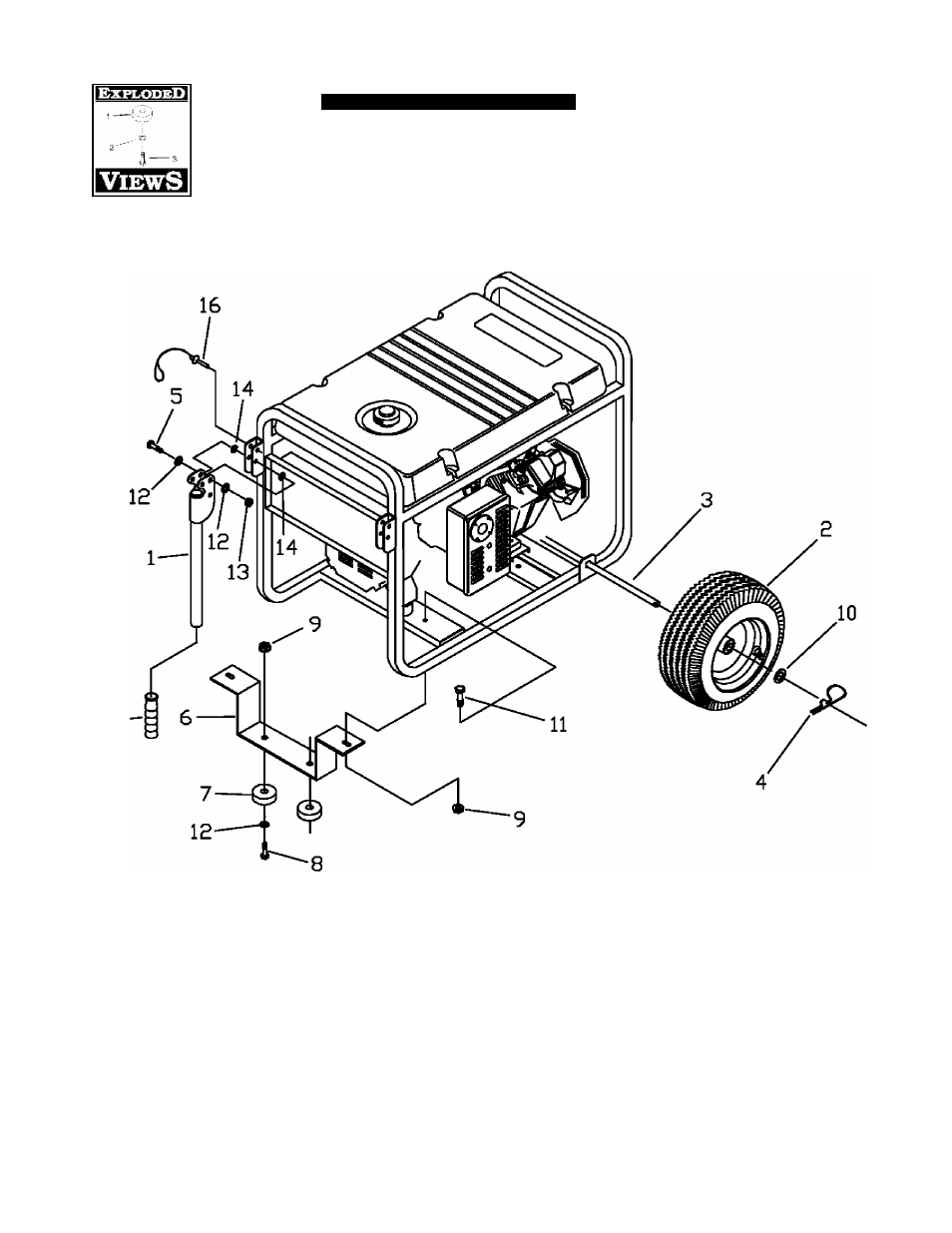

EXPLODED VIEW AND PARTS LIST —WHEEL KIT

15-

Item Part #

Qty Description

Item Part #

Qty Description

1

BB5586GS

2

HANDLE

9

52858GS

4

NUT, Lock M8

2

B4966GS

2

WHEEL

10

22247GS

2

WASHER, Wheel

3

93693GGS

1

AXLE

11

39253GS

2

CAPSCREW, Hex Hd. - M8 -

4

87005AGS

2

PIN, Retaining

1.25 X 20

5

39287GS

2

HHCS,M8 - 1.25 X 45

12

22I45GS

6

WASHER, Flat,5/I6-M8

6

BI86927GS

1

LEG, Support

13

49820GS

2

NUT, M8 Nylok

7

27007GS

2

MOUNT,Vibration

14

I87I04GS

4

WASHER, Nylon

8

42909GS

2

CAPSCREW, Hex Hd. M8 - 1.25

15

B4605GS

2

GRIP

x30

16

B4I35GS

2

PIN, with Lanyard
