mEL MU

!:{•;. 5H42A

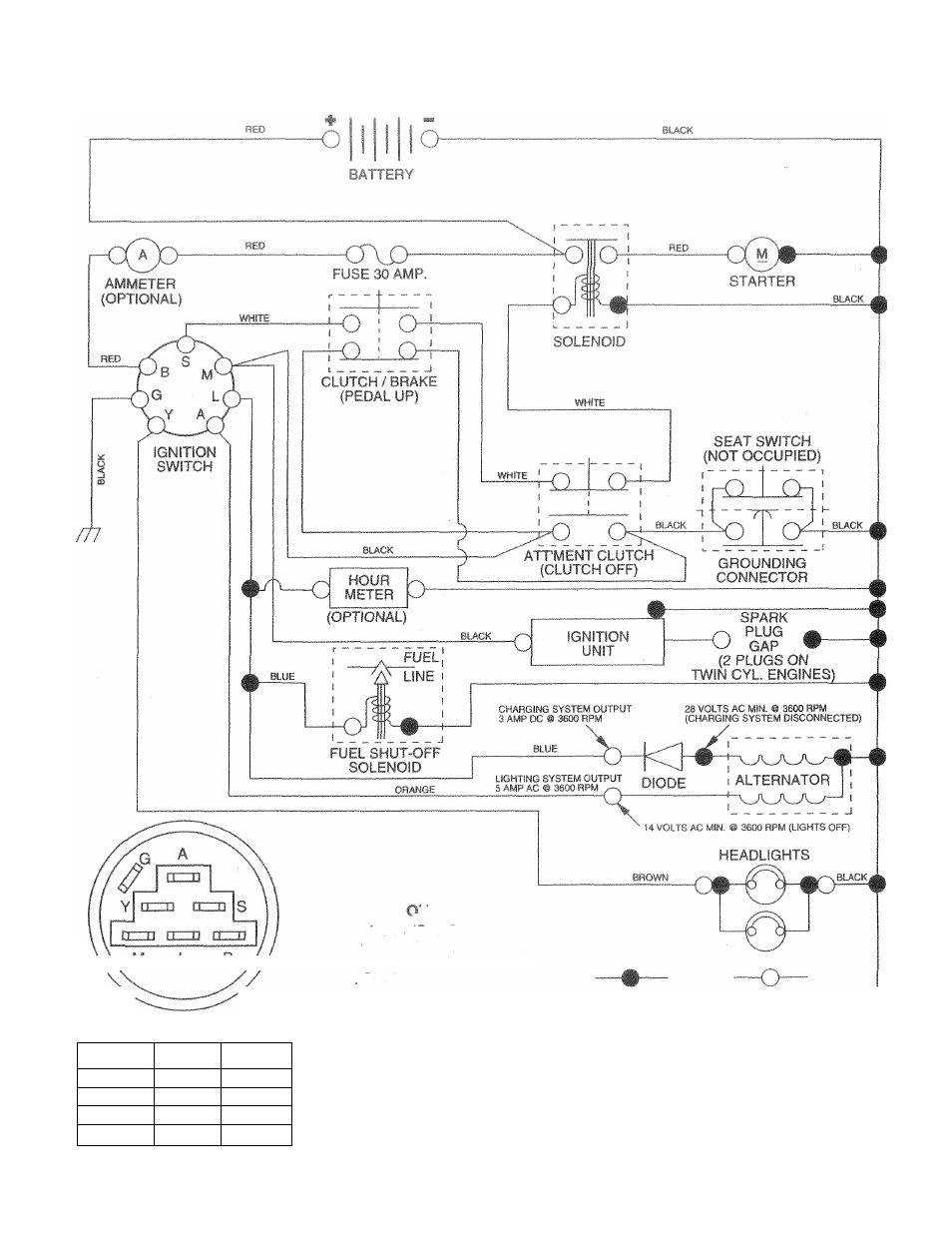

SCHEMATIC

IGNITION SWITCH

POSITION CIRCUIT

MAKE'

OFF

G + M + L

NONE

RUN/LiGHT

B + L

A + V

RUN

B + L

NONE

START

B 4 - L + S

NONE

N .fE

YOUR TRACTUR 13
EQUIPPED WITH A SPECIAL

ALTERrJATOR STSTEM,
THE LIGHTS ARE HOT
COMNECTED TO THE

BATTERY BUT HAVE THEIR
OWN

electrical

SOURCE.

BECAUSE OF THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE W'iH ENGINE
SPEED AT IDLE THE LIGHTS
WILL DIM AS THE ENGINE IS
SPEEDED UF, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE. IF WIRING ¡r^SULATED
CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
