ATTACHING THE ENGINE AND PUMP ASSEMBLY
1.
Using two Va" wrenches, remove the four hex
bolts, lock washers and hex nuts which secure the
base of the engine to the bottom of the shipping
carton.

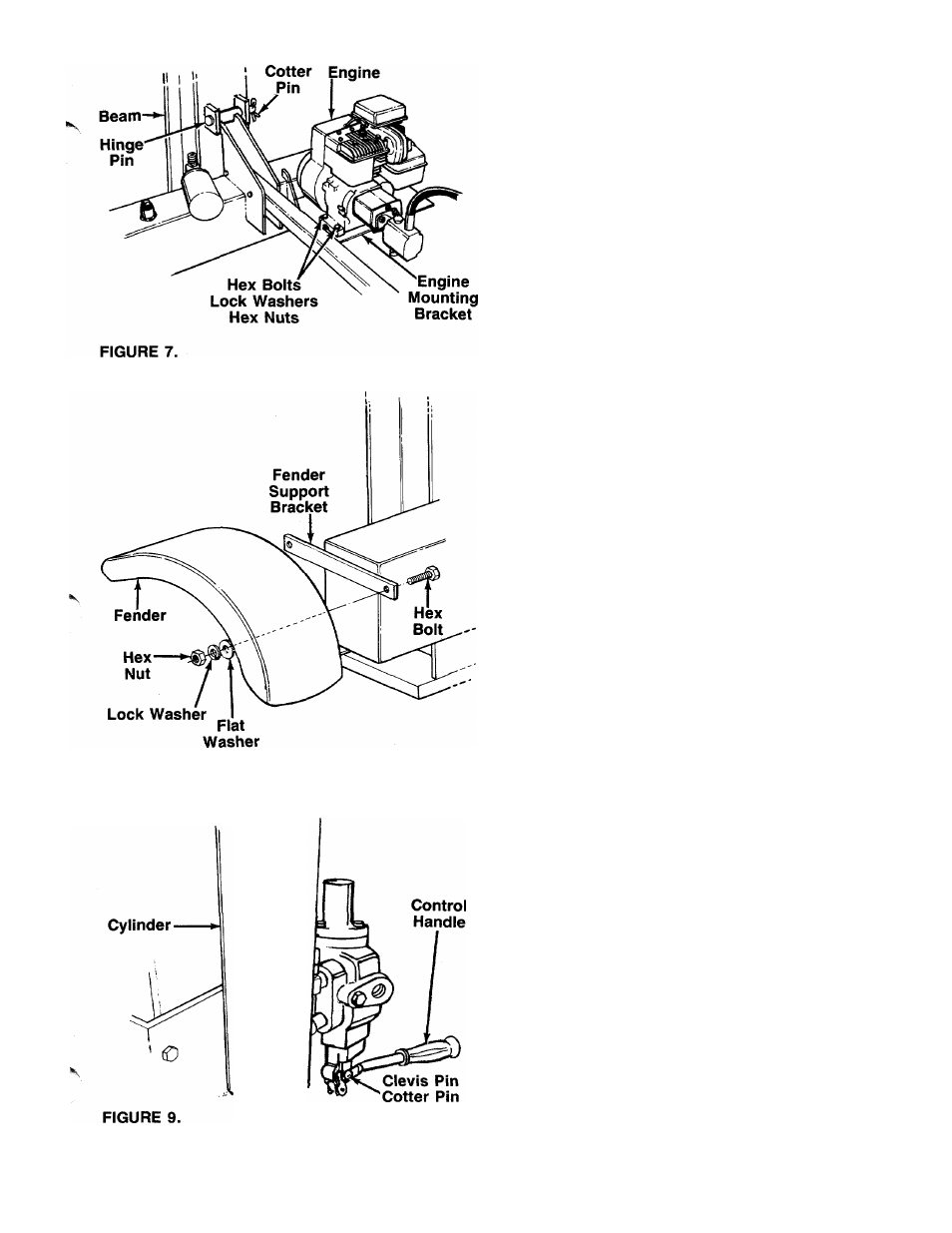

Place the engine and pump assembly in position
on the engine mounting bracket as shown in figure
-7. Secure with hardware just removed. Tighten
securely.
2
.
ATTACHING THE FENDERS
(Model 623 Only)
1. Using two Va" wrenches, remove the hex nuts, lock
washers, flat washers and hex bolts from the
fender support brackets.
2.
Place the fenders in position against the fender
support brackets. Insert hex bolts through holes
in support brackets and fenders. Secure with flat
washers, lock washers and hex nuts. See figure
--------8. Tighten securely.
FIGURE 8.
ATTACHING THE CONTROL HANDLE
1. The control handle is taped to the stripper half for
shipping purposes only. Remove the tape.
2.
The bottom of the control handle is already at
tached to the valve. Remove the cotter pin and
clevis pin which are attached to the valve. Place
the handle in position, and secure to the valve
-------- using the cotter pin and clevis pin. See figure 9.
