3.
Attach the hitch to a towing vehicle, making cer
tain to latch securely. Attach the safety chains to
the towing vehicle.
CARBURETOR ADJUSTMENT
ADJUSTMENT
A
WARNING
Always stop the engine and disconnect
the
spark
plug
wire
before
performing
any adjustments.

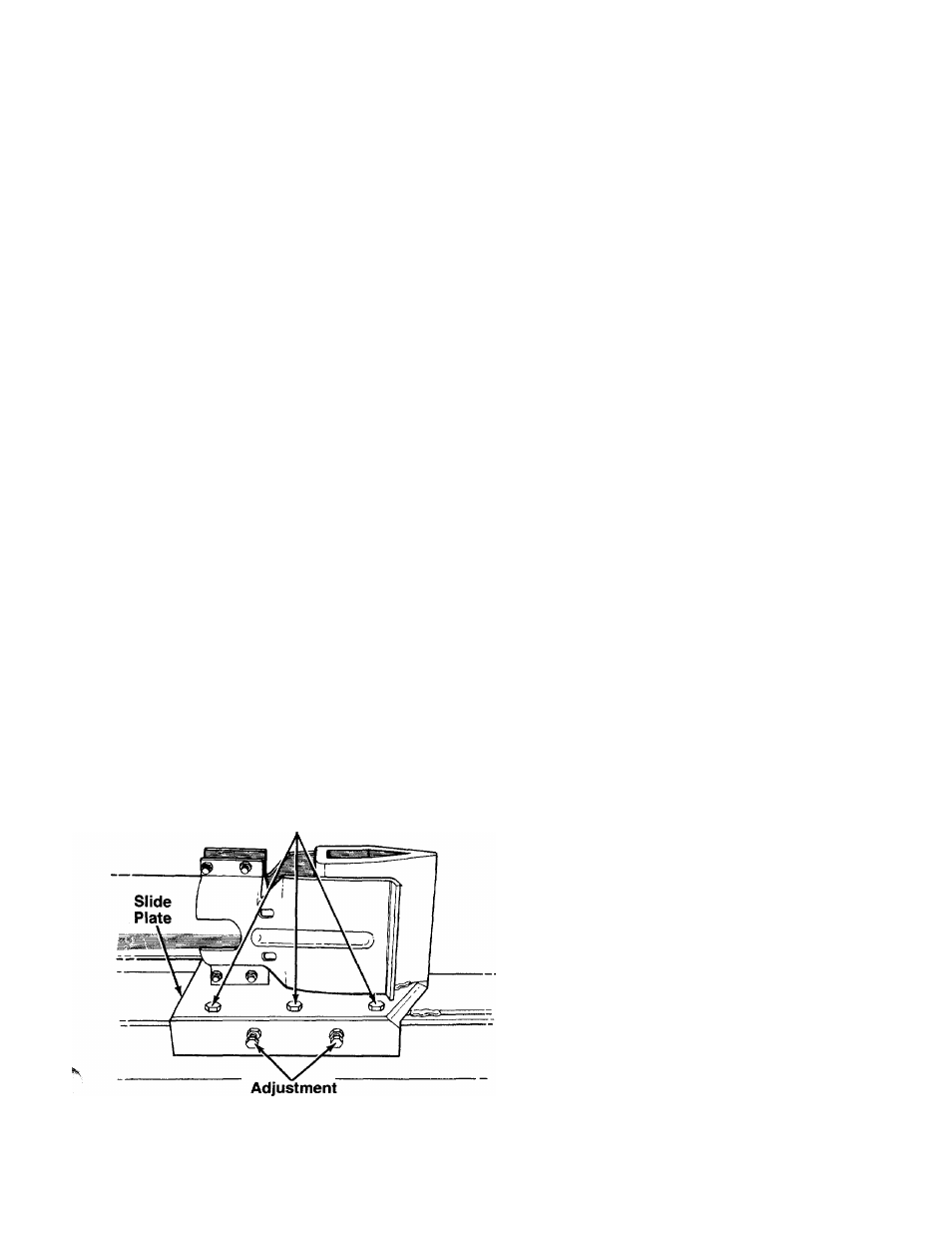

SPLITTING WEDGE
As normal wear occurs, periodically adjust the bolts on
the slide plate (beneath the splitting wedge) as follows
to eliminate the excess space between the wedge plate
and the beam. See figure 16.
1. Loosen the three hex bolts on top of the slide plate
(beneath the splitting wedge).
2.
Back the two adjustment bolts on the side of the
slide plate out slowly until the wedge assembly will
slide on the beam. Tighten the lock nuts securely
against the base of the slide plate to hold the bolts
in this position.
3.
Retighten the three hex bolts on top of the slide
plate.
Hex Bolts
Bolts
A
t w A R N ^
\
If
any
adjustments
are
made
to
the
engine
while
the
engine
is
running
(e.g. carburetor), keep clear of all moving
parts. Be careful of heated surfaces and
muffler.
Minor carburetor adjustment may be required to com
pensate for differences in fuel, temperature, altitude or
load. Improper adjustment will cause staling when split
ter is under load, hard starting and higher fuel con
sumption.
Refer to the separate engine manual packed with your
log splitter for carburetor adjustment information.
NOTE
A DIRTY AIR CLEANER WILL CAUSE
ENGINE TO RUN ROUGH. BE CERTAIN
AIR
CLEANER
IS
CLEAN
AND
AT
TACHED
TO
THE
CARBURETOR
BEFORE ADJUSTING CARBURETOR.
DO
NOT
MAKE
UNNECESSARY
ADJUSTMENTS.
FACTORY
SETTINGS
ARE
SATISFACTORY
FOR
MOST
APPLICATIONS AND CONDITIONS.
FIGURE 16.
MAINTENANCE
Ac WARNIN^
Always stop the engine and disconnect
the
spark
plug
wire
before
performing
any maintenance or repairs.
RESERVOIR FLUID
Check the hydraulic fluid level in the log splitter reser
voir tank before each use. Fluid level should be 1V2"
to 2" from the top of the tank.
Change the hydraulic fluid in the reservoir every 100
hours of operation. Disconnect the suction hose from
the bottom of the reservoir tank, and drain the fluid in
to a suitable container. Refill using only Dexron II
automatic
transmission
fluid
or
10W
non-foaming
hydraulic fluid, as instructed in the “Initial Preparation”
section of this manual, page 8. Also, make certain to
change the hydraulic filter.
11
