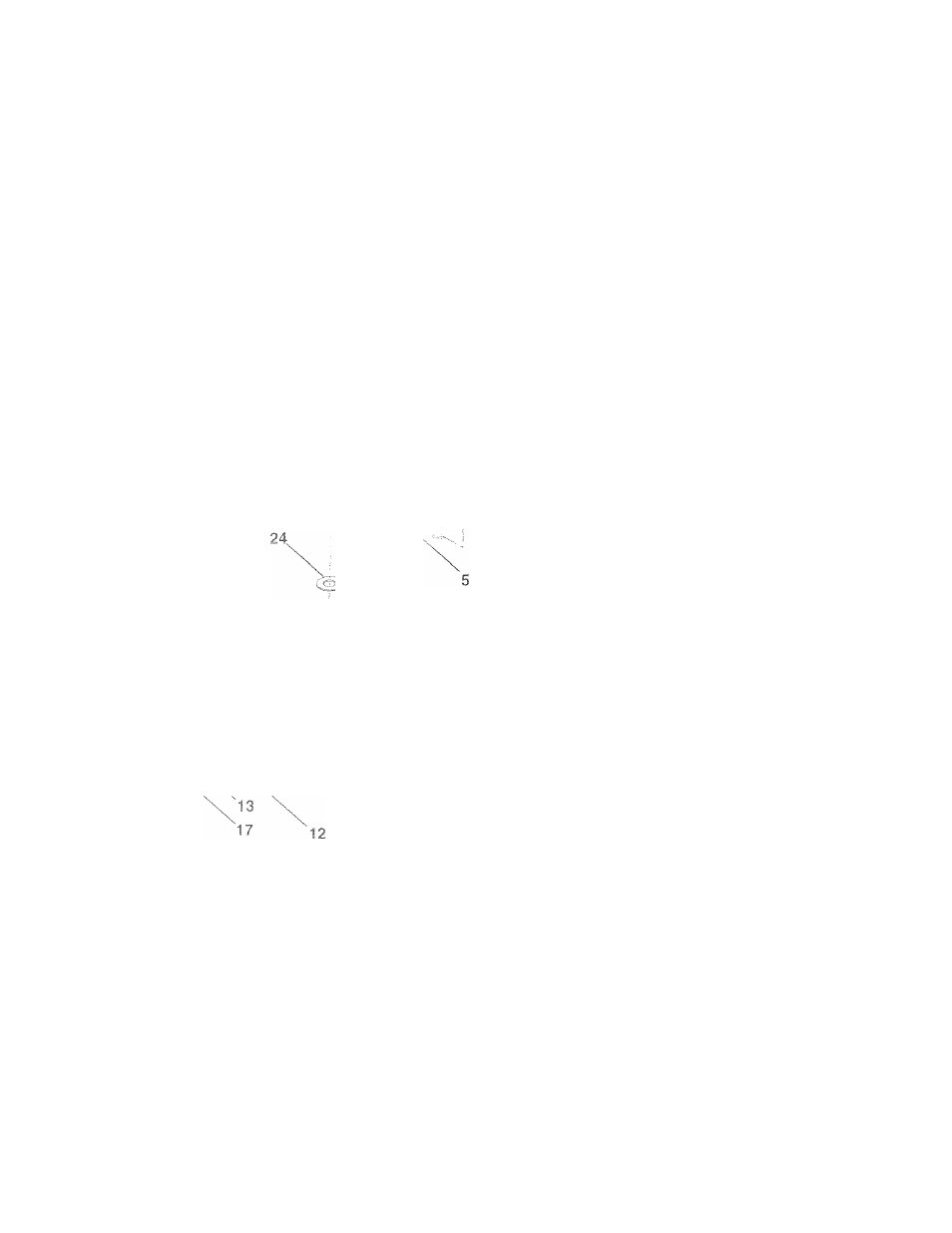

REPAIR PARTS
- - ivic
46A
28
-
14.
10
18
-28
'V...
22
21
-16
15
25
11
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
140118
Seat
16
123740X
Spring Cprsn
2
140551
Bracket Pnt Pivot Seat (bik )
17
123976X
Nut Lock 1/4 Lge Fig Gr 5 Zinc
5
145006
Clip Push-In
18
124238X
Cap Spring Seat
6
73800600
Nut Lock Hex W/lns 3/8 -16 UNC
21
153236
Bolt Shoulder 5/16-18 Unc B!kz-2A
7
124181X
Spring Seat Cprsn 2 250 BIk Zi
22
73800500
Nut Lock Hex W/lns 5/16-18
10
155925
Pan Pnt Seat (bik )
24
19171912
Washer 17/32 X 1-3/16 X 12 Ga
11
120068X
Knob Seat 1/2-1/3 UNC
25
127018X
Bolt Shoulder 5/16-18 X 62
12
121246X
Bracket Pnt Mounting Switch
27
17490608
Screw Thdrol. 3/8-16 x 1/2
13
121248X
Bushing Snap Bik Nyl 50 id
28
150176
Bolt 5/16 -18 UNC X 3/4 W/Sems
14
15
72050411
121249X
Bolt Rdhd Sht Nk 1/4-20x1-3/8
Spacer Split 28 X 88
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
